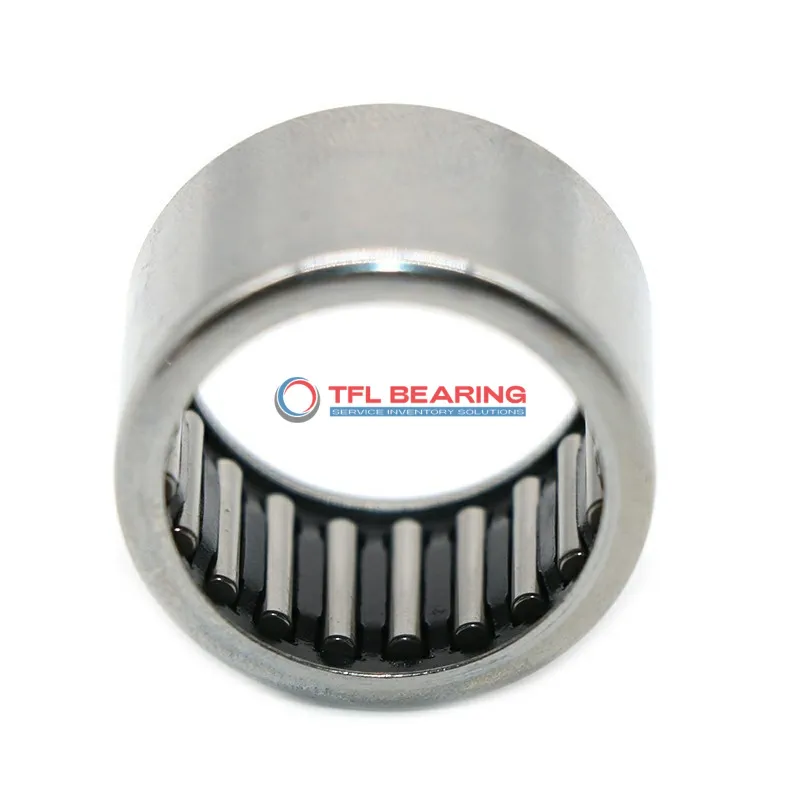

Drawn Cup Needle Roller Bearings HK1616-2RS

The HK1616-2RS is a drawn cup needle roller bearing with a 16mm bore and 22mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1709 lbf and spins efficiently at speeds up to 9300 RPM.
Featuring double seals, this bearing keeps contaminants out while retaining lubrication, making it low-maintenance. Its press-fit design ensures a secure and straightforward installation.
Ideal for compact spaces, this bearing suits applications like automotive components or small machinery. It operates smoothly in temperatures from -20°C to 110°C.
Compliant with RoHS standards, it’s a practical choice for replacements, especially where INA bearings are specified. Its lightweight build and durable construction make it a dependable option for radial load scenarios.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number HK1616-2RS
Brand TFL
Interchangeable INA
Bore Dia 16 mm
Bore Dia Tolerance +16-+34°Cm
Outer Dia 22 mm
Outer Dia Tolerance Not Rated
Width 16 mm
Width Tolerance -0.3mm to 0mm
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Double Seal
Series Open End
Ring Material Steel
Ball Material Steel
Cage Material Steel
Dynamic Radial Load 1709 lbf
Static Radial Load 2181 lbf
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Max Speed 9300 rpm
Weight 14 g

Drawn Cup Needle Roller Bearings HK1616-2RS dimension drawing

Download DWG Download PDF

Features

How Does HK1616-2RS Bearing Reduce Friction?
HK1616-2RS Bearing features a double-sealed design, which helps to retain lubrication and reduce friction.
The steel needle rollers distribute loads evenly, enhancing smooth operation even under high radial loads.
With a dynamic radial load capacity of 1709 lbf, HK1616-2RS Bearing is built for durability.
Its press-fit shaft mount ensures secure installation, minimising movement and wear.
HK1616-2RS Bearing operates efficiently within a temperature range of -20 to 110°C.
The required lubrication ensures consistent performance, extending the bearing’s service life.

Application

Common Applications of HK1616-2RS Bearing
HK1616-2RS Bearing works well in industrial gearboxes, where its compact design helps save space while handling radial loads efficiently. The double seals keep contaminants out, extending the bearing’s life in dusty environments.
In automotive steering systems, HK1616-2RS Bearing provides smooth rotation, thanks to its needle roller design. Its press-fit mounting ensures a secure fit, reducing maintenance needs in high-vibration applications.
For small electric motors, HK1616-2RS Bearing’s steel construction offers reliable performance at high speeds. The metric sizing makes it a versatile choice for various motor designs across different regions.
Where Is HK1616-2RS Bearing Used?
You’ll often find HK1616-2RS Bearing in conveyor systems, where its radial load capacity supports smooth material handling. The open-end series allows for easy installation in tight spaces.
In home appliances like washing machines, HK1616-2RS Bearing’s sealed design helps resist moisture and detergent exposure. Its durability ensures quiet operation over long periods of use.
Built for Heavy-Duty Use: HK1616-2RS Bearing
HK1616-2RS Bearing handles tough conditions in construction equipment, where its steel rollers withstand heavy radial loads. The temperature range suits both indoor and outdoor applications.
Automotive vs Industrial: Applications of HK1616-2RS Bearing
In automotive transmissions, HK1616-2RS Bearing’s compact size fits tight spaces without sacrificing performance. For industrial pumps, its sealed design resists fluid ingress, ensuring reliable operation.
