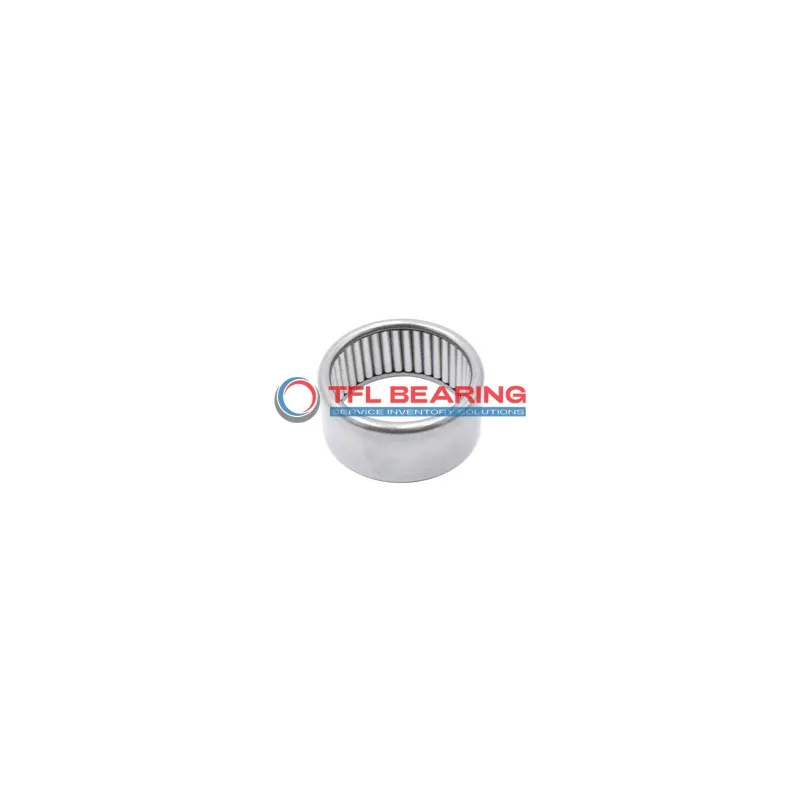

Drawn Cup Needle Roller Bearings HK0910

Drawn Cup Needle Roller Bearings HK0910

The HK0910 is a compact drawn cup needle roller bearing with a 9mm bore and 13mm outer diameter, crafted from sturdy steel. It handles radial loads up to 955 lbf and spins efficiently at speeds up to 26,500 RPM.
Its open-end design and press-fit mounting make it simple to install, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
Suitable for temperatures between -20°C and 110°C, it’s a versatile choice for tight spaces. Ideal for applications like small gearboxes or automotive components where space is limited.
Compliant with RoHS standards, it’s a reliable and eco-friendly option for radial load scenarios.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK0910
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 9 mm
  • Bore Dia Tolerance +13-+31°Cm
  • Outer Dia 13 mm
  • Outer Dia Tolerance Not Rated
  • Width 10 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 955 lbf
  • Static Radial Load 1045 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 26500 rpm
  • Weight 4 g
Drawn Cup Needle Roller Bearings HK0910 dimension drawing
Download DWG Download PDF

Features

How Does HK0910 Bearing Handle High-Speed Applications?
HK0910 Bearing is built with steel rings and needles, offering strong radial load capacity up to 955 lbf.
Its press-fit shaft mount ensures secure installation, reducing slippage during high-speed operation.
The open-end design allows for easy lubrication, maintaining smooth performance even at 26,500 rpm.
With a temperature range of -20 to 110°C, HK0910 Bearing adapts to various working conditions.
The steel cage keeps the needles aligned, enhancing durability and reducing maintenance needs.
Its compact size and high load capacity make it suitable for space-constrained applications.

Application

Common Applications of HK0910 Bearing
HK0910 Bearing is widely used in industrial equipment, especially in compact spaces like conveyor systems and printing machinery, where its small size and high load capacity are beneficial. The open-end design simplifies installation and maintenance.
In automotive applications, HK0910 Bearing fits well in gearboxes and transmission systems, providing reliable radial load support. Its press-fit mounting ensures a secure connection even under high-speed conditions.
For automation and robotics, HK0910 Bearing is a go-to choice for joints and pivots due to its smooth operation and durability. The steel construction handles frequent movements without compromising performance.
In consumer electronics, HK0910 Bearing can be found in devices like printers and small motors, where precision and quiet operation are key. Its metric sizing makes it compatible with various international standards.
