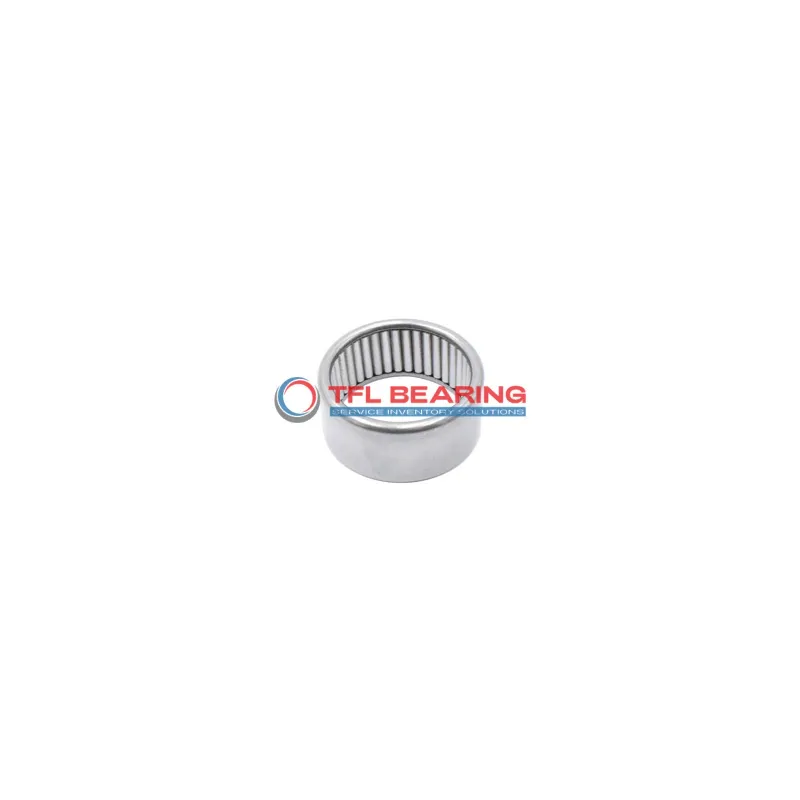

Drawn Cup Needle Roller Bearings HK0810-RS

Drawn Cup Needle Roller Bearings HK0810-RS

The HK0810-RS is a compact drawn cup needle roller bearing with an 8mm bore and 12mm outer diameter, crafted from sturdy steel. It handles radial loads up to 618 lbf and spins efficiently at speeds up to 17,700 RPM.
Its single-seal design keeps contaminants out while maintaining smooth operation. The press-fit mounting ensures a secure fit on shafts, ideal for tight spaces.
This bearing requires regular lubrication for optimal performance. It works well in temperatures from -20°C to 110°C, making it versatile for various conditions.
Perfect for applications like small gearboxes or automotive components where space is limited. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK0810-RS
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 8 mm
  • Bore Dia Tolerance +13-+31°Cm
  • Outer Dia 12 mm
  • Outer Dia Tolerance Not Rated
  • Width 10 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 618 lbf
  • Static Radial Load 585 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 17700 rpm
  • Weight 3 g
Drawn Cup Needle Roller Bearings HK0810-RS dimension drawing
Download DWG Download PDF

Features

Why Choose HK0810-RS Bearing for Precision Tasks?
HK0810-RS Bearing features a steel construction, offering reliable performance in radial load applications.
Its dynamic radial load capacity of 618 lbf ensures steady operation under pressure.
The single seal design helps keep contaminants out while retaining lubrication.
With a maximum speed of 17,700 rpm, it suits high-speed applications.
HK0810-RS Bearing’s press-fit mounting simplifies installation, saving time and effort.
Its compact dimensions (8mm bore, 12mm outer diameter) make it ideal for space-constrained setups.

Application

Common Applications of HK0810-RS Bearing
HK0810-RS Bearing is widely used in industrial machinery, especially in compact spaces where radial load support is needed, like conveyor rollers and small gearboxes. Its single seal design helps keep contaminants out while maintaining smooth operation.
In automotive systems, HK0810-RS Bearing fits well in components such as steering columns and transmission systems, thanks to its press-fit mounting and high-speed capability. The steel construction ensures durability even under frequent use.
For automation equipment, HK0810-RS Bearing works efficiently in robotic arms and linear guides, where precision and reliability are key. Its small size and high load capacity make it a versatile choice for tight spaces.
In household appliances like electric drills and printers, HK0810-RS Bearing provides quiet and reliable performance. The metric sizing ensures easy replacement in a variety of devices.
Medical devices such as dental tools and lab equipment benefit from HK0810-RS Bearing’s consistent performance. The steel cage and rollers offer long-lasting wear resistance in high-use scenarios.
