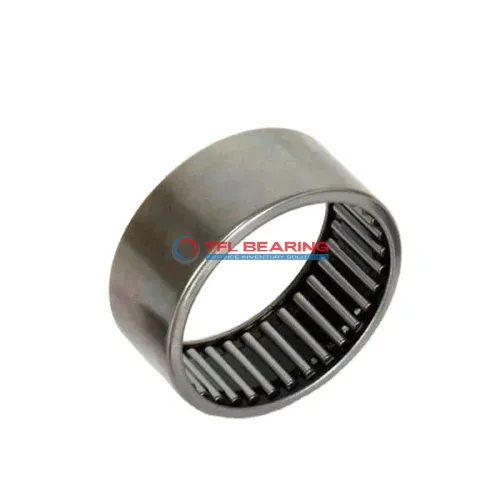

Drawn Cup Needle Roller Bearings HK0608

Drawn Cup Needle Roller Bearings HK0608

The HK0608 is a compact drawn cup needle roller bearing with a 6mm bore and 10mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 456 lbf and spins efficiently at speeds up to 36,500 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. Regular lubrication is needed to maintain smooth operation.
This bearing works well in temperatures ranging from -20°C to 110°C, making it versatile for various environments. It’s interchangeable with INA bearings, offering a practical replacement option.
Ideal for applications like small gearboxes or automotive components where space is limited but performance is key. RoHS compliant for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK0608
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 6 mm
  • Bore Dia Tolerance +10-+28°Cm
  • Outer Dia 10 mm
  • Outer Dia Tolerance Not Rated
  • Width 8 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 456 lbf
  • Static Radial Load 371 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 36500 rpm
  • Weight 2.1 g
Drawn Cup Needle Roller Bearings HK0608 dimension drawing
Download DWG Download PDF

Features

How Does HK0608 Bearing Reduce Friction?
HK0608 Bearing features a steel construction with precision needle rollers, ensuring smooth radial load distribution.
Its open-end design allows for easy lubrication, enhancing performance and reducing friction.
The press-fit shaft mount ensures secure installation, minimising movement and wear during operation.
With a maximum speed of 36,500 rpm, HK0608 Bearing is suitable for high-speed applications.
The steel cage maintains roller alignment, contributing to long service life and consistent performance.
Operating between -20°C to 110°C, it adapts well to varying environmental conditions.

Application

Industrial Uses of HK0608 Bearing
HK0608 Bearing is commonly used in compact machinery like textile equipment and small gearboxes, where its needle roller design efficiently handles radial loads in tight spaces. The press-fit mounting ensures a secure installation, reducing maintenance needs.
Where Is HK0608 Bearing Used?
You’ll often spot HK0608 Bearing in automotive components such as steering systems and transmission assemblies, thanks to its high-speed capability and reliable steel construction. Its metric sizing makes it a versatile fit for various vehicle designs.
Perfect Fit for Automation: HK0608 Bearing
In robotic arms and precision automation tools, HK0608 Bearing offers smooth motion control due to its low-profile design and high rpm tolerance. The open-end series allows for easy lubrication, extending service life in continuous operations.
Medical vs Industrial: Where HK0608 Bearing Excels
While HK0608 Bearing suits industrial pumps and compressors well, its precision also benefits medical devices like dental handpieces. The steel components provide durability without compromising on cleanliness requirements.
Consumer Electronics Applications of HK0608 Bearing
HK0608 Bearing works quietly in household gadgets like electric shavers and printers, where its small size and press-fit design save space. The steel construction ensures longevity even with frequent use.
