Drawn Cup Needle Roller Bearings BK1210

Drawn Cup Needle Roller Bearings BK1210

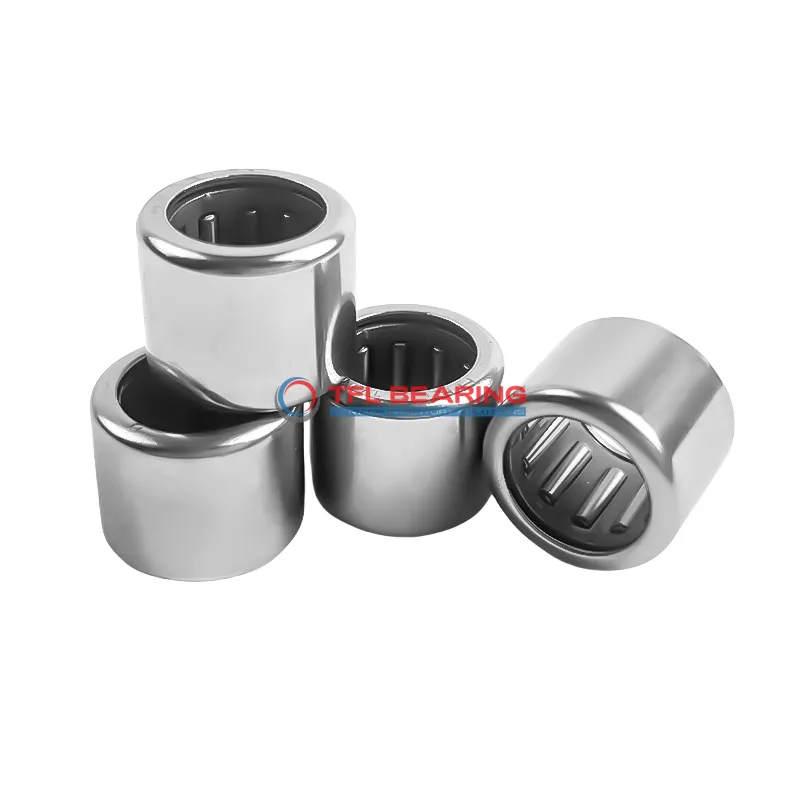

The BK1210 is a compact drawn cup needle roller bearing with a 12mm bore and 16mm outer diameter, crafted from sturdy steel. It handles radial loads up to 1113 lbf and spins efficiently at speeds up to 20700 RPM.
Its open, single-row design with a press-fit shaft mount ensures easy installation and reliable performance. The steel cage and rollers provide durability for demanding applications.
This bearing requires regular lubrication to maintain smooth operation and works well in temperatures from -20°C to 110°C. It’s interchangeable with INA models, offering flexibility for replacements.
Ideal for use in automotive components or small machinery where space is limited but radial load capacity is crucial. Compliant with RoHS standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BK1210
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 16 mm
  • Outer Dia Tolerance Not Rated
  • Width 10 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1113 lbf
  • Static Radial Load 1394 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 20700 rpm
  • Weight 5.2 g
Drawn Cup Needle Roller Bearings BK1210 dimension drawing
Download DWG Download PDF

Features

Why Choose BK1210 Bearing for Precision Tasks?
BK1210 Bearing features a steel construction, offering reliable performance under radial loads.
Its dynamic radial load capacity of 1113 lbf ensures stability in high-speed applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 20,700 rpm, it is suitable for demanding precision tasks.

Application

Common Applications of BK1210 Bearing
BK1210 Bearing is widely used in industrial equipment like conveyor systems and packaging machinery, where its compact design helps save space. The press-fit mounting ensures a secure installation in tight spots.
In automotive applications, BK1210 Bearing fits well in gearboxes and steering systems, handling radial loads efficiently. Its high-speed capability makes it suitable for components requiring smooth rotation.
For automation projects, BK1210 Bearing works reliably in robotic arms and small actuators. The steel construction provides durability while maintaining a lightweight profile.
In consumer electronics, BK1210 Bearing can be found in printers and small appliances. Its open design allows for easy lubrication, extending service life in everyday use.
Medical devices like lab equipment often use BK1210 Bearing for its precise movement. The metric sizing ensures compatibility with various international standards.
