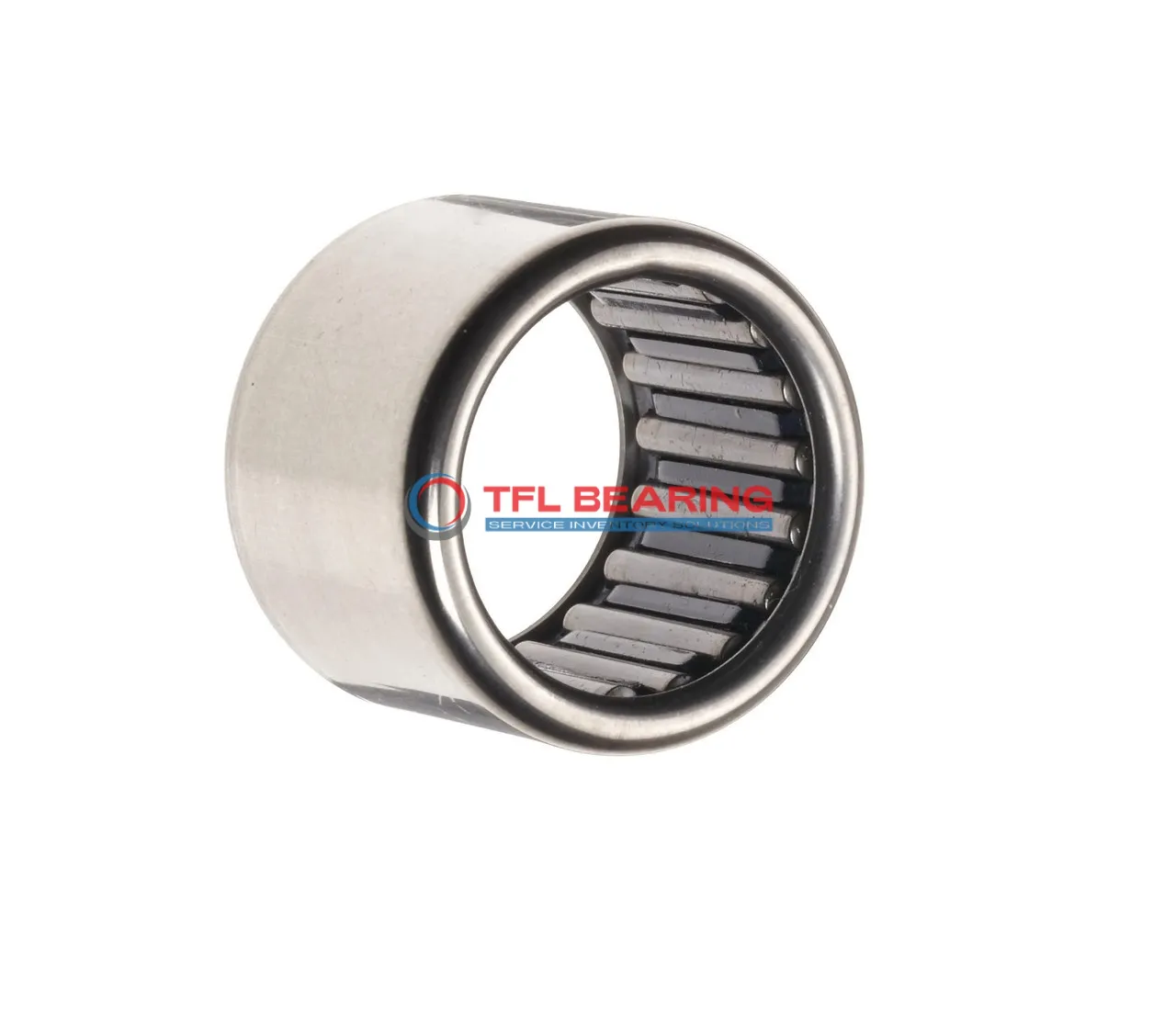

Drawn Cup Needle Roller Bearings BCH913-P

Drawn Cup Needle Roller Bearings BCH913-P

The BCH913-P is a drawn cup needle roller bearing with a 0.5625″ bore and 0.8125″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3237 lbf and spins smoothly at speeds up to 16800 RPM.
Its single-seal design keeps contaminants out while the press-fit mounting ensures a secure hold on the shaft. The closed-end construction adds durability, making it suitable for high-speed applications.
This bearing requires regular lubrication to maintain optimal performance. It works well in temperatures ranging from -20°C to 110°C, fitting various industrial uses.
Interchangeable with INA bearings, it’s a practical choice for replacements. Ideal for machinery where space is limited but high load capacity is needed. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCH913-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.8125"
  • Outer Dia Tolerance Not Rated
  • Width 0.8125"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3237 lbf
  • Static Radial Load 4271 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16800 rpm
  • Weight 19 g
Drawn Cup Needle Roller Bearings BCH913-P dimension drawing
Download DWG Download PDF

Features

How Does BCH913-P Bearing Handle High-Speed Applications?
BCH913-P Bearing features a steel construction, providing robust performance under radial loads.
Its dynamic radial load capacity of 3237 lbf ensures reliability in demanding conditions.
The single seal design helps retain lubrication, extending maintenance intervals.
With a maximum speed of 16,800 rpm, it excels in high-speed operations.
BCH913-P Bearing’s press-fit shaft mount simplifies installation, saving time and effort.
Its temperature range of -20 to 110°C makes it suitable for various environments.

Application

Industrial Uses of BCH913-P Bearing
BCH913-P Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The single seal helps keep contaminants out, extending the bearing’s lifespan in dusty environments.
In automotive applications, BCH913-P Bearing fits well in transmission systems, providing smooth operation under high speeds. Its press-fit mounting ensures a secure installation, reducing the risk of slippage during use.
For automation equipment, BCH913-P Bearing’s steel construction offers durability in robotic arms and conveyor systems. The closed-end design also helps retain lubrication, maintaining performance over long periods.
Where Is BCH913-P Bearing Used?
You’ll often find BCH913-P Bearing in small electric motors, where its needle rollers handle radial loads efficiently. The inch sizing makes it a good match for machinery using imperial measurements.
In household appliances like washing machines, BCH913-P Bearing supports rotating parts with minimal friction. Its temperature range ensures reliability even during extended use.
