Drawn Cup Needle Roller Bearings BCH1310

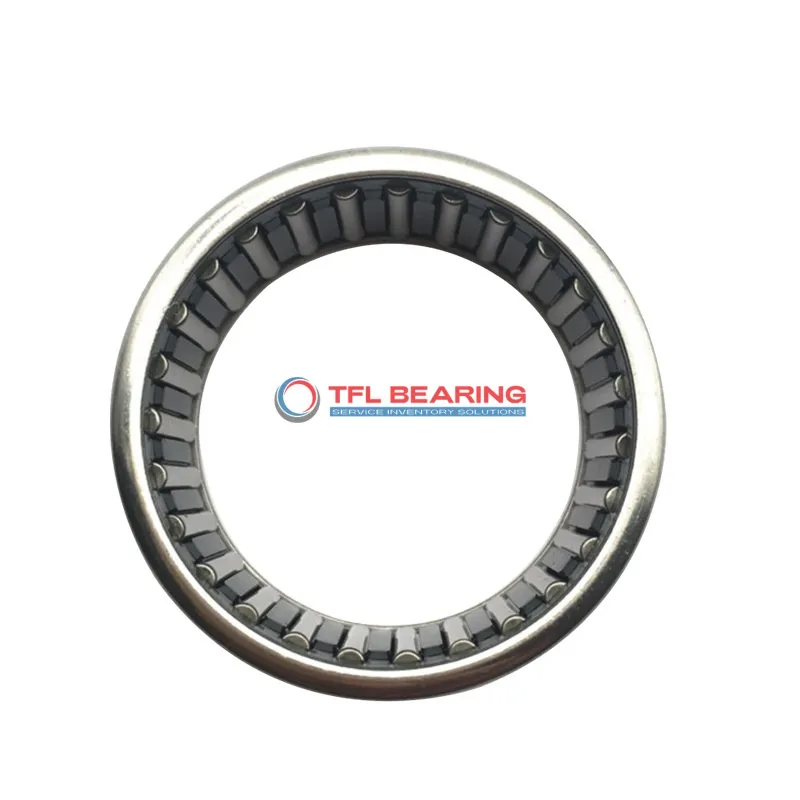

Drawn Cup Needle Roller Bearings BCH1310

The BCH1310 is a drawn cup needle roller bearing with a 0.8125″ bore and 1.125″ outer diameter, crafted from sturdy steel. It handles radial loads up to 3619 lbf and spins smoothly at speeds up to 11900 RPM.
Its open, single-row design with a press-fit mount ensures easy installation and reliable performance. The steel cage and rollers provide durability under demanding conditions.
This bearing operates well in temperatures from -20°C to 110°C and requires regular lubrication for optimal use. It’s interchangeable with INA models, making it a practical choice for replacements.
Ideal for applications like automotive components or small machinery where space is limited but radial load capacity is key. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCH1310
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.8125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.125"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3619 lbf
  • Static Radial Load 4743 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11900 rpm
  • Weight 25 g
Drawn Cup Needle Roller Bearings BCH1310 dimension drawing
Download DWG Download PDF

Features

Why Choose BCH1310 Bearing for Precision Tasks?
BCH1310 Bearing features a steel construction, offering robust performance for radial load applications.
Its dynamic radial load capacity of 3619 lbf ensures reliability in high-stress environments.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 11,900 rpm, BCH1310 Bearing balances speed and durability.
Its open seal type allows for easy lubrication, enhancing operational efficiency.
The temperature range of -20 to 110°C makes it suitable for various working conditions.

Application

Industrial Uses of BCH1310 Bearing
BCH1310 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is BCH1310 Bearing Used?
You’ll often find BCH1310 Bearing in automotive transmissions, providing smooth operation under high radial loads. Its press-fit design simplifies installation, saving time during assembly.
Built for Heavy-Duty Use: BCH1310 Bearing
BCH1310 Bearing excels in construction equipment, handling heavy loads with ease. The open seal design allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of BCH1310 Bearing
In automotive applications, BCH1310 Bearing supports clutch mechanisms, while in industrial settings, it’s used in conveyor systems. Its inch sizing makes it versatile for various machinery.
Perfect Fit for Automation: BCH1310 Bearing
BCH1310 Bearing is a reliable choice for robotic arms, offering precision and stability. The high-speed capability ensures smooth performance in automated production lines.
