Drawn Cup Needle Roller Bearings BCH117

Drawn Cup Needle Roller Bearings BCH117

The BCH117 is a drawn cup needle roller bearing with a 0.6875″ bore and 0.9375″ outer diameter, made from sturdy steel. It handles radial loads up to 1888 lbf and spins smoothly at speeds up to 16000 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like automotive components or small machinery where space is limited.
Regular lubrication is needed to maintain performance. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCH117
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.6875"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.9375"
  • Outer Dia Tolerance Not Rated
  • Width 0.4375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1888 lbf
  • Static Radial Load 2248 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16000 rpm
  • Weight 13 g

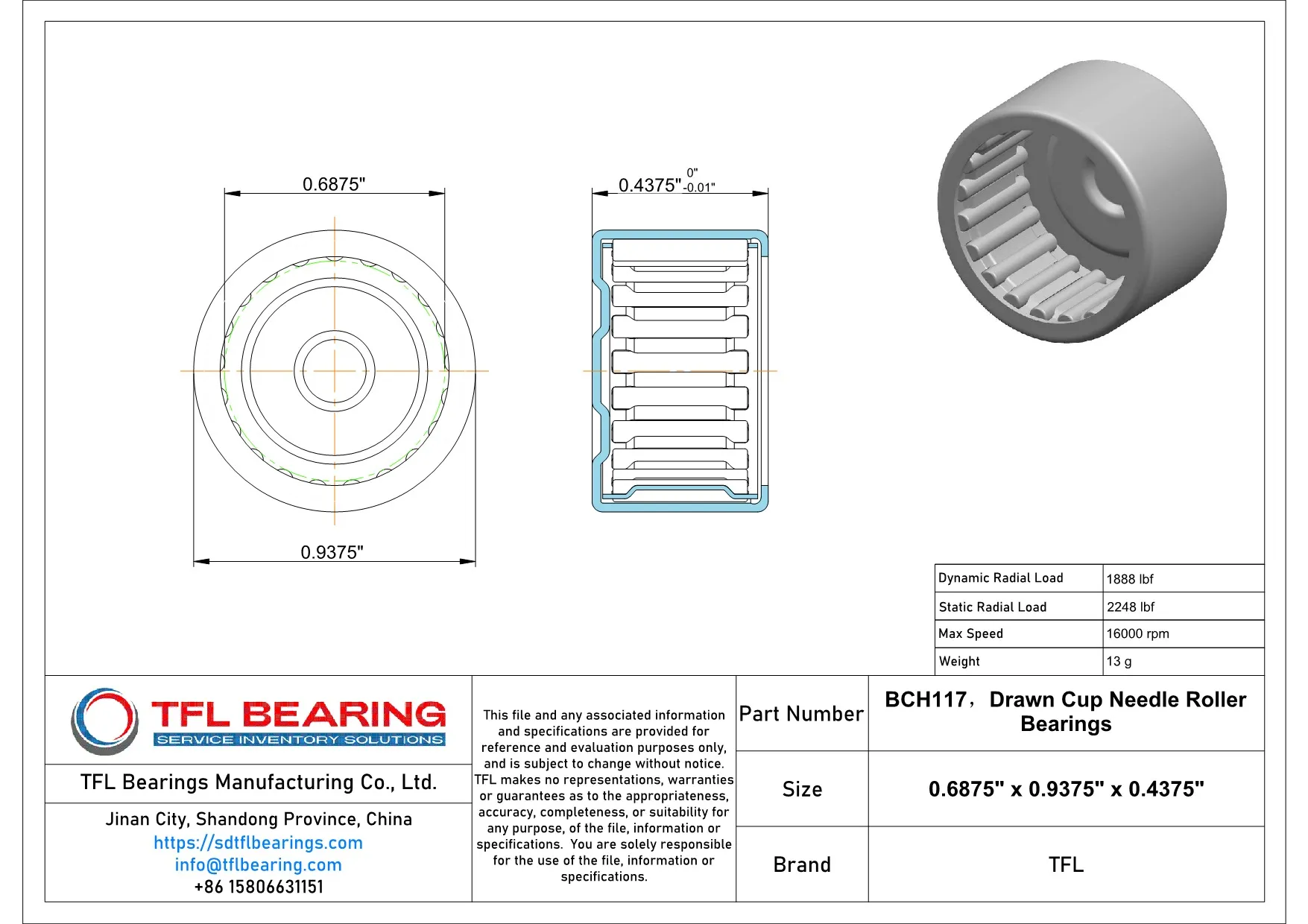

Drawn Cup Needle Roller Bearings BCH117 dimension drawing
Download DWG Download PDF

Features

How Does BCH117 Bearing Handle High-Speed Applications?
BCH117 Bearing is crafted with steel rings and needles, offering strong radial load support up to 1888 lbf.
Its press-fit shaft mount ensures secure installation, reducing slippage during high-speed operation.
The open design allows for easy lubrication, maintaining smooth performance at speeds up to 16,000 rpm.
With a temperature range of -20 to 110°C, it remains reliable in varied working conditions.
Why Choose BCH117 Bearing for Radial Loads?
BCH117 Bearing’s single-row needle roller design efficiently handles radial loads with a static capacity of 2248 lbf.
The steel construction provides durability, while the closed-end series enhances protection against contaminants.
Its compact width of 0.4375″ makes it suitable for space-constrained applications.
The press-fit mounting simplifies installation, saving time and effort.
Engineered for Efficiency: BCH117 Bearing
BCH117 Bearing’s steel cage and needles ensure low friction, enhancing operational efficiency.
The open seal type facilitates lubrication, prolonging service life even under heavy radial loads.
With a dynamic radial load rating of 1888 lbf, it delivers consistent performance in demanding settings.
Its inch-based measurements make it compatible with systems requiring precise imperial fittings.

Application

Industrial Uses of BCH117 Bearing
BCH117 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and packaging equipment. Its steel construction ensures durability in demanding environments.
Where Is BCH117 Bearing Used?
You’ll often find BCH117 Bearing in automotive applications, such as gearboxes and transmission systems, where its press-fit design provides a secure mounting solution. The high-speed capability makes it suitable for performance-driven components.
Perfect Fit for Automation: BCH117 Bearing
In robotic arms and automated assembly lines, BCH117 Bearing offers smooth operation due to its needle roller design. The open seal type allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of BCH117 Bearing
While BCH117 Bearing excels in automotive transmissions, it’s also a reliable choice for industrial pumps and compressors. Its inch sizing makes it compatible with a variety of machinery standards.
Medical vs Industrial: Where BCH117 Bearing Excels
Though not typically used in medical devices, BCH117 Bearing shines in industrial settings like printing presses. Its high dynamic load rating ensures consistent performance under stress.
