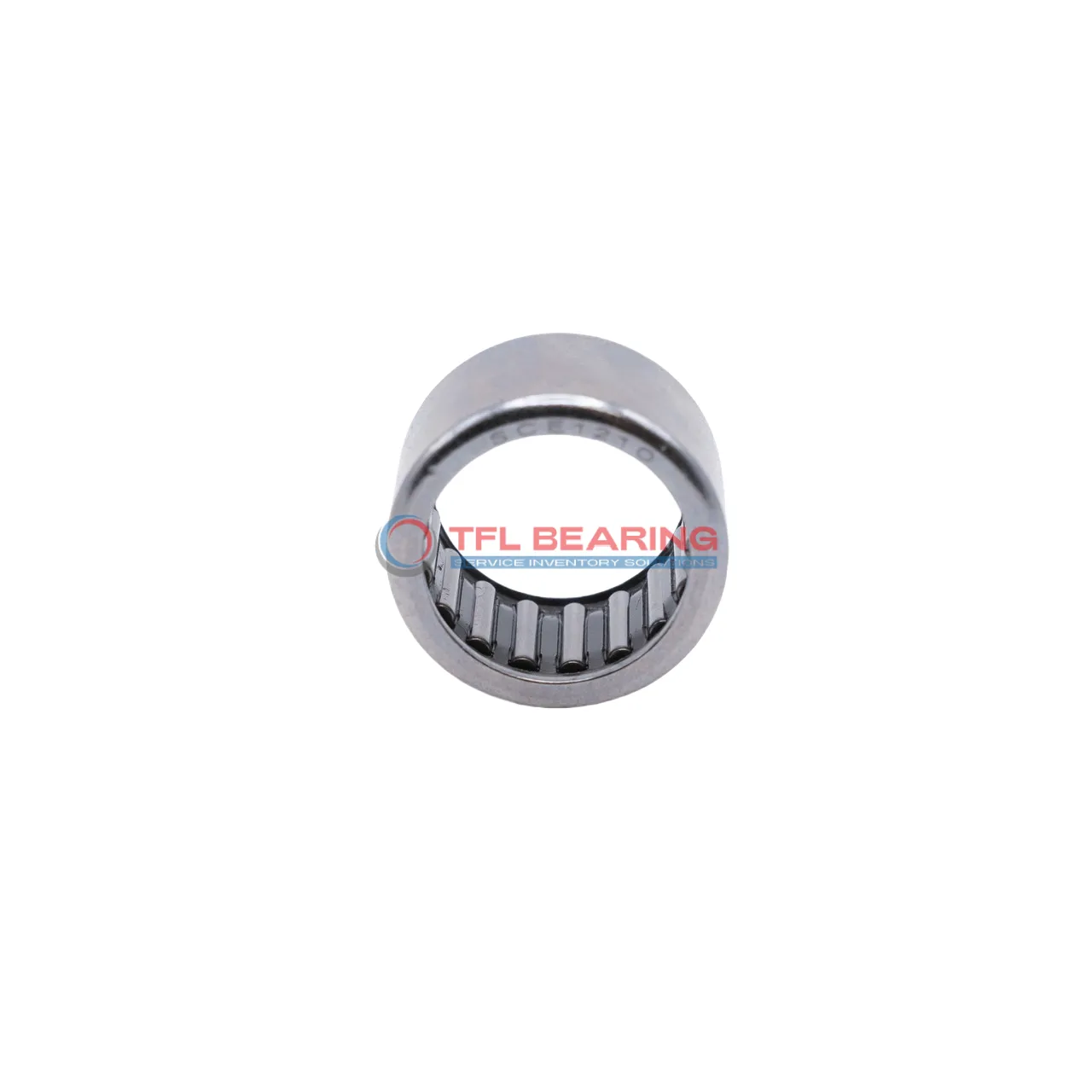

Drawn Cup Needle Roller Bearings BCE810

Drawn Cup Needle Roller Bearings BCE810

The BCE810 is a drawn cup needle roller bearing with a 0.5″ bore and 0.6875″ outer diameter, made from sturdy steel for reliable performance. It handles radial loads up to 1978 lbf and can reach speeds of 19500 RPM, making it suitable for high-speed applications.
Its open design and press-fit mounting ensure easy installation, while the steel cage provides durability under heavy loads. The bearing operates smoothly in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for use in automotive or industrial machinery where space is limited but high load capacity is needed.
Regular lubrication is recommended to maintain performance. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE810
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.6875"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1978 lbf
  • Static Radial Load 2765 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19500 rpm
  • Weight 9 g
Drawn Cup Needle Roller Bearings BCE810 dimension drawing
Download DWG Download PDF

Features

Performance Features of BCE810 Bearing
BCE810 Bearing is crafted with steel rings and needles, offering robust radial load support.
Its dynamic radial load capacity reaches 1978 lbf, making it suitable for high-demand applications.
The press-fit shaft mount ensures secure installation, reducing slippage during operation.
With a maximum speed of 19,500 rpm, it delivers reliable performance in fast-moving systems.
BCE810 Bearing operates efficiently within a temperature range of -20 to 110°C.
Its open design allows for easy lubrication, ensuring smooth and consistent performance.

Application

Common Applications of BCE810 Bearing
BCE810 Bearing is widely used in industrial equipment like conveyor systems and packaging machines, where its compact design helps save space. The press-fit mounting ensures a secure hold, even in high-vibration environments.
In automotive applications, BCE810 Bearing fits well in gearboxes and transmission systems, handling radial loads efficiently. Its steel construction offers durability, making it suitable for long-term use in vehicles.
For automation projects, BCE810 Bearing works smoothly in robotic arms and linear guides, thanks to its high-speed capability. The open seal design allows for easy lubrication, maintaining performance over time.
In household appliances like power tools, BCE810 Bearing provides reliable support for rotating parts. Its inch measurements make it compatible with many standard designs, simplifying replacements.
Medical devices such as dental drills benefit from BCE810 Bearing’s precision and smooth operation. The steel cage ensures stability, even during prolonged use in sensitive equipment.
