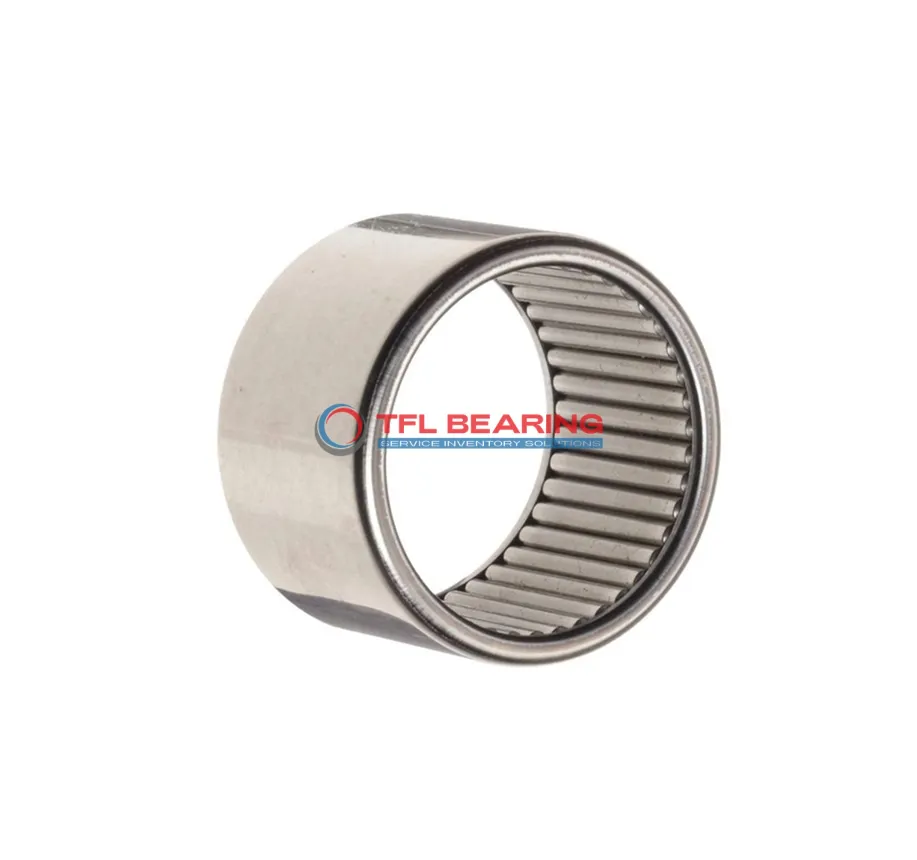

Drawn Cup Needle Roller Bearings BCE2414

Drawn Cup Needle Roller Bearings BCE2414

The BCE2414 is a drawn cup needle roller bearing with a 1.5″ bore and 1.875″ outer diameter, made from sturdy steel. It handles radial loads up to 8093 lbf and runs smoothly at speeds up to 6700 RPM.
Its open design and press-fit mounting make it easy to install, while the steel construction ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like automotive components or industrial machinery where radial loads are common.
It operates well in temperatures from -20°C to 110°C and is RoHS compliant for safe use. The closed-end design helps keep contaminants out, extending its lifespan.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE2414
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.875"
  • Outer Dia Tolerance Not Rated
  • Width 0.875"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 8093 lbf
  • Static Radial Load 13489 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 6700 rpm
  • Weight 72 g
Drawn Cup Needle Roller Bearings BCE2414 dimension drawing
Download DWG Download PDF

Features

Why Choose BCE2414 Bearing for Precision Tasks?
BCE2414 Bearing features a steel construction, providing strong resistance to radial loads.
Its dynamic radial load capacity reaches 8093 lbf, making it suitable for demanding applications.
The needle roller design ensures smooth operation and efficient load distribution.
With a maximum speed of 6700 rpm, it offers reliable performance in various conditions.
BCE2414 Bearing requires lubrication, ensuring long-lasting operation and reduced wear.
Its press-fit shaft mount type simplifies installation, saving time and effort.

Application

Common Applications of BCE2414 Bearing
BCE2414 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability in demanding environments.
In automotive systems, BCE2414 Bearing fits well in gearboxes and steering mechanisms, providing reliable performance under radial loads. The press-fit design makes installation straightforward for mechanics.
For automation equipment, BCE2414 Bearing works smoothly in robotic arms and assembly lines, thanks to its needle roller design. The open seal allows for easy lubrication, extending its service life.
In household appliances, BCE2414 Bearing can be found in washing machines and power tools, where its compact size and strength are ideal. The inch measurements make it compatible with many standard designs.
