Drawn Cup Needle Roller Bearings BCE2412

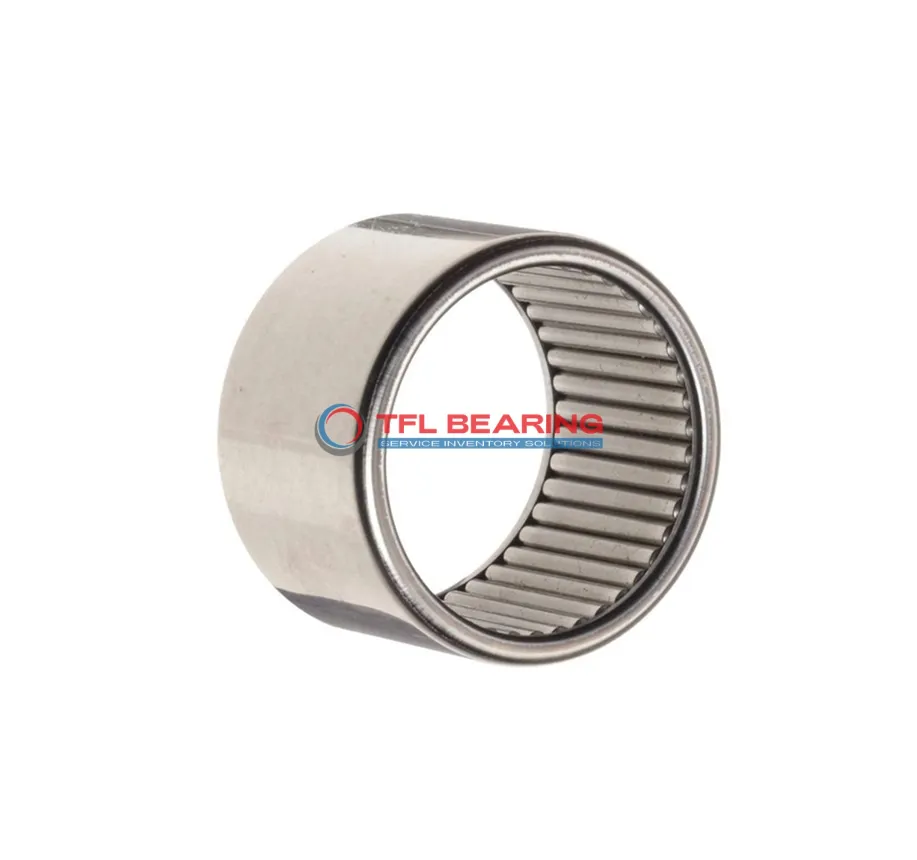

Drawn Cup Needle Roller Bearings BCE2412

The BCE2412 is a drawn cup needle roller bearing with a 1.5″ bore and 1.875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6857 lbf and can spin at speeds up to 6700 RPM.
Its open, single-row design with a press-fit shaft mount ensures easy installation and maintenance. The steel cage and rollers provide durability under heavy loads.
This bearing works well in temperatures from -20°C to 110°C and requires regular lubrication for optimal performance. It’s interchangeable with INA bearings, making it a versatile choice for replacements.
Ideal for applications like automotive components or industrial machinery where space is limited but high load capacity is needed. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE2412
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.875"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 6857 lbf
  • Static Radial Load 10903 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 6700 rpm
  • Weight 62 g
Drawn Cup Needle Roller Bearings BCE2412 dimension drawing
Download DWG Download PDF

Features

Why Choose BCE2412 Bearing for Precision Tasks?
BCE2412 Bearing features a steel construction, offering strong resistance to radial loads with a dynamic capacity of 6857 lbf.
Its needle roller design ensures efficient load distribution, enhancing performance in compact spaces.
The press-fit shaft mount simplifies installation, saving time and effort during assembly.
With a maximum speed of 6700 rpm, it delivers reliable operation in various applications.

Application

Common Applications of BCE2412 Bearing
BCE2412 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its steel construction ensures durability in demanding environments.
In automotive applications, BCE2412 Bearing fits well in transmission systems and steering mechanisms, providing reliable performance under radial loads. The press-fit design makes installation straightforward for mechanics.
For automation equipment, BCE2412 Bearing supports smooth movement in robotic arms and assembly lines. Its open seal type allows for easy lubrication, extending service life in high-speed operations.
In household appliances, BCE2412 Bearing can be found in power tools and small motors, where its inch sizing suits various consumer products. The steel cage adds stability during frequent use.
