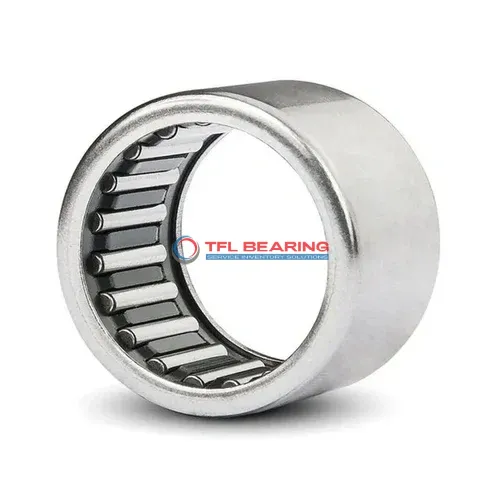

Drawn Cup Needle Roller Bearings BCE2220

Drawn Cup Needle Roller Bearings BCE2220

The BCE2220 is a drawn cup needle roller bearing with a 1.375″ bore and 1.625″ outer diameter, made from sturdy steel. It handles radial loads up to 7644 lbf and can spin at speeds up to 8000 RPM.
Its open, single-row design with a press-fit shaft mount ensures easy installation and reliable performance. The steel cage and rollers provide durability under heavy loads.
This bearing requires regular lubrication to maintain smooth operation. It works well in temperatures ranging from -20°C to 110°C and is RoHS compliant.
Ideal for applications like automotive transmissions or industrial machinery where space is limited but high load capacity is needed. Its closed-end design helps keep contaminants out.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE2220
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 1.25"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 7644 lbf
  • Static Radial Load 1731 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8000 rpm
  • Weight 81 g

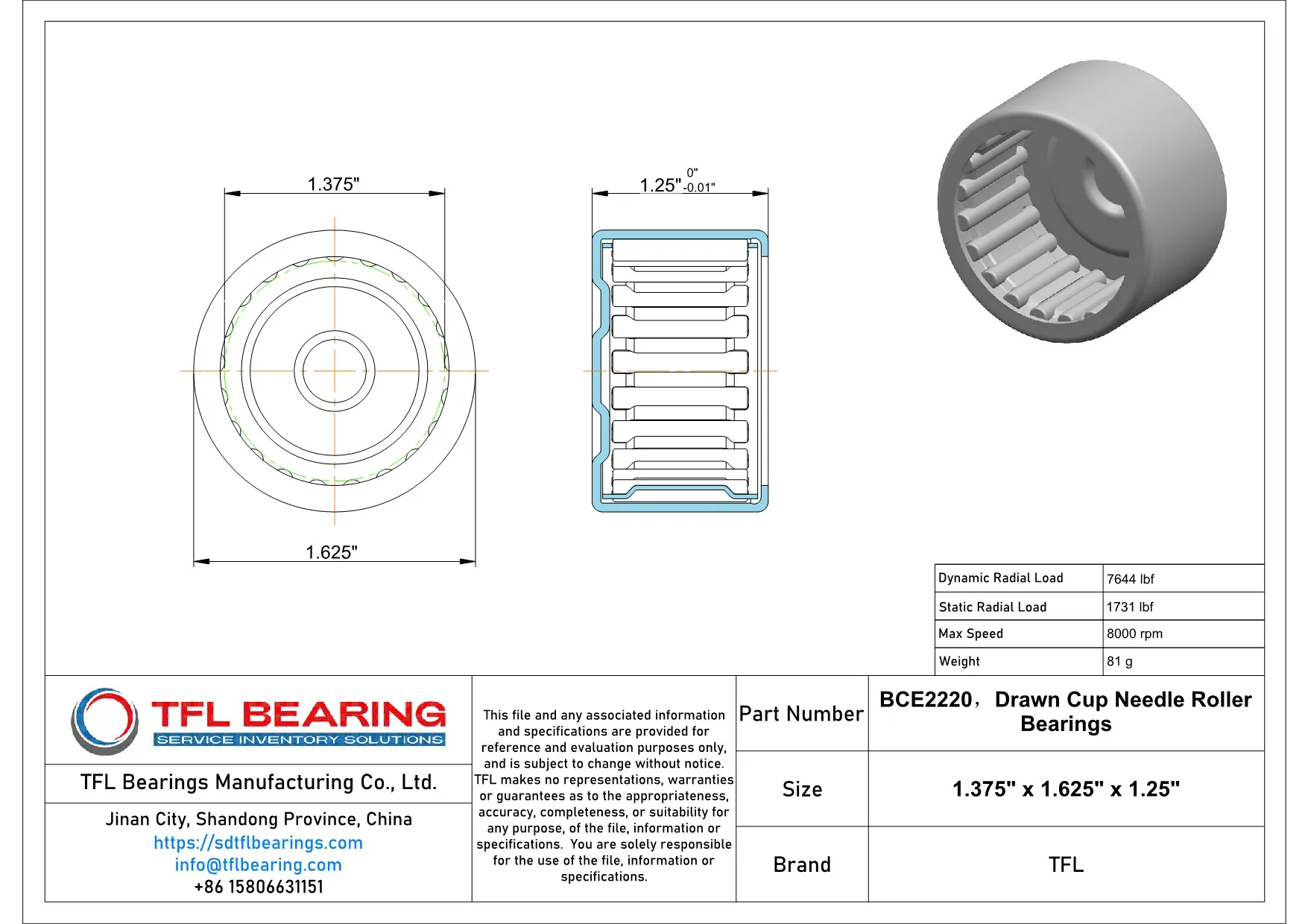

Drawn Cup Needle Roller Bearings BCE2220 dimension drawing
Download DWG Download PDF

Features

How Is BCE2220 Bearing Engineered for Reliability?
BCE2220 Bearing features a steel construction, ensuring durability and resistance to wear in radial load applications.
Its dynamic radial load capacity of 7644 lbf makes it suitable for demanding industrial environments.
The press-fit shaft mount design simplifies installation, reducing setup time and improving efficiency.
With a maximum speed of 8000 rpm, BCE2220 Bearing balances performance and longevity.

Application

Industrial Uses of BCE2220 Bearing
BCE2220 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
Where Is BCE2220 Bearing Used?
You’ll often find BCE2220 Bearing in automotive transmissions, where its needle roller design handles high speeds and radial loads efficiently. Its press-fit mounting simplifies installation in tight spaces.
Built for Heavy-Duty Use: BCE2220 Bearing
BCE2220 Bearing excels in construction equipment like hydraulic pumps, thanks to its robust steel build and open design for easy lubrication. It’s a reliable choice for heavy machinery.
Automotive vs Industrial: Applications of BCE2220 Bearing
In automotive steering systems, BCE2220 Bearing provides smooth operation under radial loads. For industrial presses, its high dynamic load rating ensures long service life.
Perfect Fit for Automation: BCE2220 Bearing
BCE2220 Bearing works well in robotic arms, where its needle rollers reduce friction for precise movement. The inch sizing makes it compatible with many North American systems.
