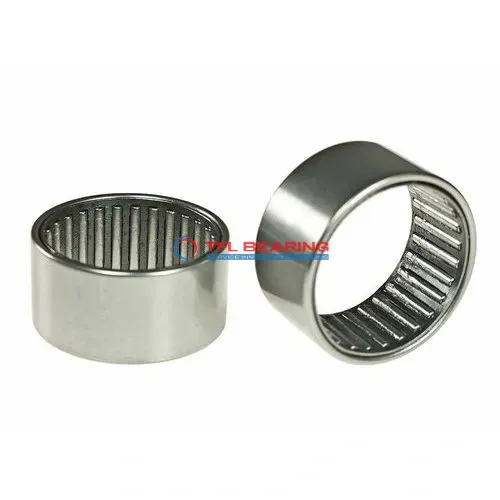

Drawn Cup Needle Roller Bearings BCE2020

Drawn Cup Needle Roller Bearings BCE2020

The BCE2020 is a drawn cup needle roller bearing with a 1.25″ bore and 1.5″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 7531 lbf and can spin at speeds up to 8200 RPM when properly lubricated.
Its open, single-row design with a press-fit shaft mount ensures easy installation and stable operation. The closed-end series offers added protection against contaminants in harsh environments.
This bearing is interchangeable with INA models, making it a practical choice for replacements. Ideal for applications like automotive components or industrial machinery where space is limited but high load capacity is needed.
Operating smoothly from -20°C to 110°C, it’s a versatile option for various conditions. RoHS compliant for safe use in regulated industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE2020
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 1.25"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 7531 lbf
  • Static Radial Load 15961 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8200 rpm
  • Weight 56 g
Drawn Cup Needle Roller Bearings BCE2020 dimension drawing
Download DWG Download PDF

Features

Why Choose BCE2020 Bearing for Precision Tasks?
BCE2020 Bearing is crafted with steel rings and needles, offering strong radial load capacity up to 7531 lbf.
Its press-fit shaft mount ensures secure installation, making it suitable for precision applications.
The open design allows for easy lubrication, enhancing performance and longevity.
With a maximum speed of 8,200 rpm, it delivers reliable operation in various conditions.

Application

Common Applications of BCE2020 Bearing
BCE2020 Bearing is widely used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive systems, BCE2020 Bearing is often found in transmission assemblies and steering mechanisms, providing smooth operation under heavy loads. Its press-fit design simplifies installation, saving time during maintenance.
For automation equipment, BCE2020 Bearing supports robotic arms and conveyor systems, offering reliable performance at high speeds. The open seal type allows for easy lubrication, extending its service life.
In household appliances like washing machines, BCE2020 Bearing handles radial loads efficiently, ensuring quiet and long-lasting operation. Its inch sizing makes it compatible with many North American models.
