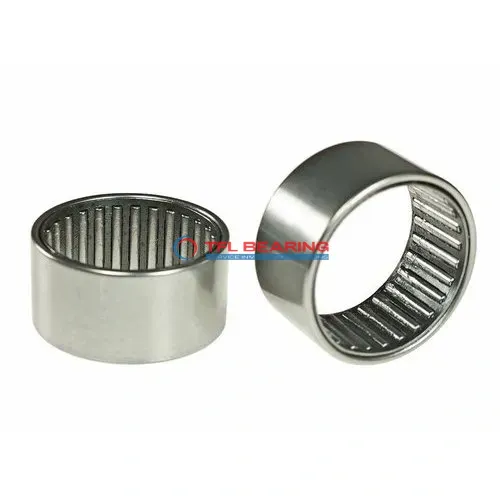

Drawn Cup Needle Roller Bearings BCE186

Drawn Cup Needle Roller Bearings BCE186

The BCE186 is a drawn cup needle roller bearing with a 1.125″ bore and 1.375″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1866 lbf and spins smoothly at speeds up to 9800 RPM.
Its open design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing requires lubrication for optimal operation and works in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or machinery where compact, high-load capacity is needed.
Compliant with RoHS standards, it’s a dependable choice for various industrial uses. Its closed-end design helps keep contaminants out, extending service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE186
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.375"
  • Outer Dia Tolerance Not Rated
  • Width 0.375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1866 lbf
  • Static Radial Load 2585 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 9800 rpm
  • Weight 19 g
Drawn Cup Needle Roller Bearings BCE186 dimension drawing
Download DWG Download PDF

Features

How Does BCE186 Bearing Handle Radial Loads?
BCE186 Bearing features a steel construction, providing robust performance under radial loads.
Its dynamic radial load capacity of 1866 lbf ensures reliable operation in various applications.
The needle roller design offers a compact solution while maintaining high load-bearing capabilities.
With a maximum speed of 9800 rpm, BCE186 Bearing balances efficiency and durability.
Its press-fit shaft mount simplifies installation, saving time and effort.
The open design allows for easy lubrication, ensuring smooth operation over time.

Application

Key Fields for BCE186 Bearing
BCE186 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity help in reducing friction and improving efficiency. The press-fit mounting ensures a secure installation in tight spaces.
In automotive applications, BCE186 Bearing fits well in transmission systems and steering mechanisms, providing reliable performance under radial loads. Its steel construction offers durability, even in high-speed conditions.
For small machinery and tools, BCE186 Bearing’s inch sizing makes it a versatile choice for equipment requiring precise radial support. The open seal design allows for easy lubrication, extending its service life.
In robotics and automation, BCE186 Bearing is often found in joint assemblies, where its needle roller design ensures smooth movement. The closed-end series helps in retaining lubrication, reducing maintenance needs.
