Double Row Super-Precision Cylindrical Roller Bearings NN 3013 TN/SP

Double Row Super-Precision Cylindrical Roller Bearings NN 3013 TN/SP

The NN 3013 TN/SP is a double-row cylindrical roller bearing with a 65mm bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles combined loads up to 17212 lbf and reaches speeds of 10000 RPM, making it suitable for precision applications.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Ideal for machine tools or industrial gearboxes where high precision and durability are needed.

Weighing 0.7kg, it balances strength and lightweight design. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NN 3013 TN/SP
  • Size 65 mm x 100 mm x 26 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.009mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.010mm to 0
  • Width 26 mm
  • Width Tolerance -0.15mm to 0
  • Chamfer Dimension Outer Ring(r1,2)(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 1.5 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Dynamic Radial Load 17212 lbf
  • Static Radial Load 26100 lbf
  • Max Speed 10000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 kg
  • Cage Material PA66 cage, roller centred

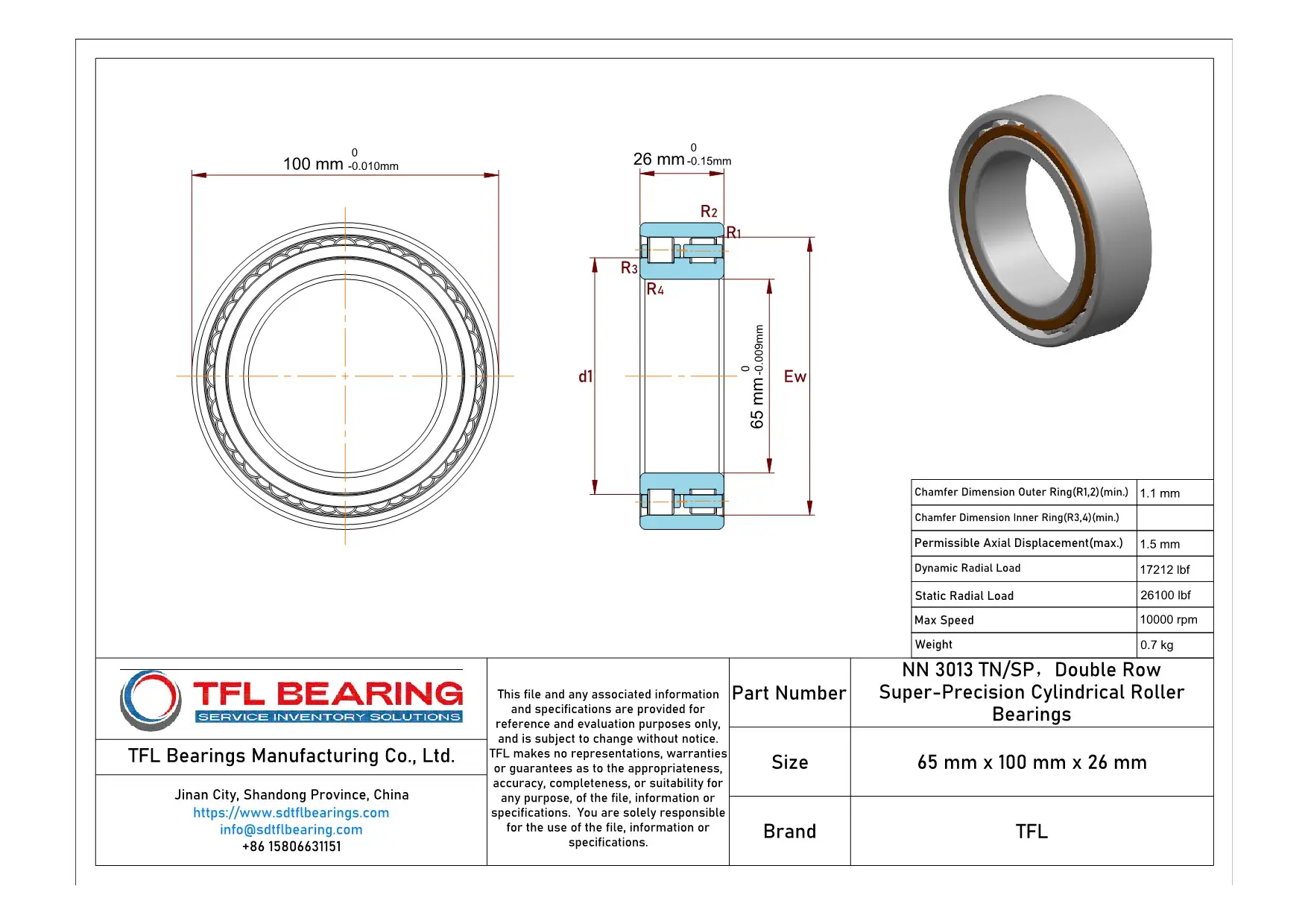

Double Row Super-Precision Cylindrical Roller Bearings NN 3013 TN/SP dimension drawing
Download DWG Download PDF

Features

Performance Features of NN 3013 TN/SP Bearing

NN 3013 TN/SP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 17212 lbf, ensuring reliable performance in high-demand applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 10,000 rpm, it balances durability and efficiency.

NN 3013 TN/SP Bearing operates smoothly in temperatures from -30° to 110°C, making it versatile for various environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The double-row construction enhances stability, making it suitable for precision tasks.
Its metric dimensions (65 mm x 100 mm x 26 mm) ensure compatibility with standard systems.

Application

Industrial Uses of NN 3013 TN/SP Bearing
NN 3013 TN/SP Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The high-speed capability up to 10,000 rpm makes it suitable for precision grinding spindles.

In automation systems, NN 3013 TN/SP Bearing ensures smooth operation in robotic arms and CNC machinery. Its chrome steel construction provides durability, while the PA66 cage reduces friction during high-speed movements.

For heavy-duty applications like gearboxes, NN 3013 TN/SP Bearing offers reliable performance under dynamic loads. The open design allows for easy lubrication, extending service life in demanding environments.

What Makes NN 3013 TN/SP Bearing a Preferred Choice?
NN 3013 TN/SP Bearing is ideal for wind turbine generators, where its precision and load capacity are crucial. The grease or oil lubrication options adapt to various operating conditions.

In printing machinery, NN 3013 TN/SP Bearing maintains accuracy during high-speed paper handling. The metric dimensions ensure compatibility with European and Asian equipment standards.
