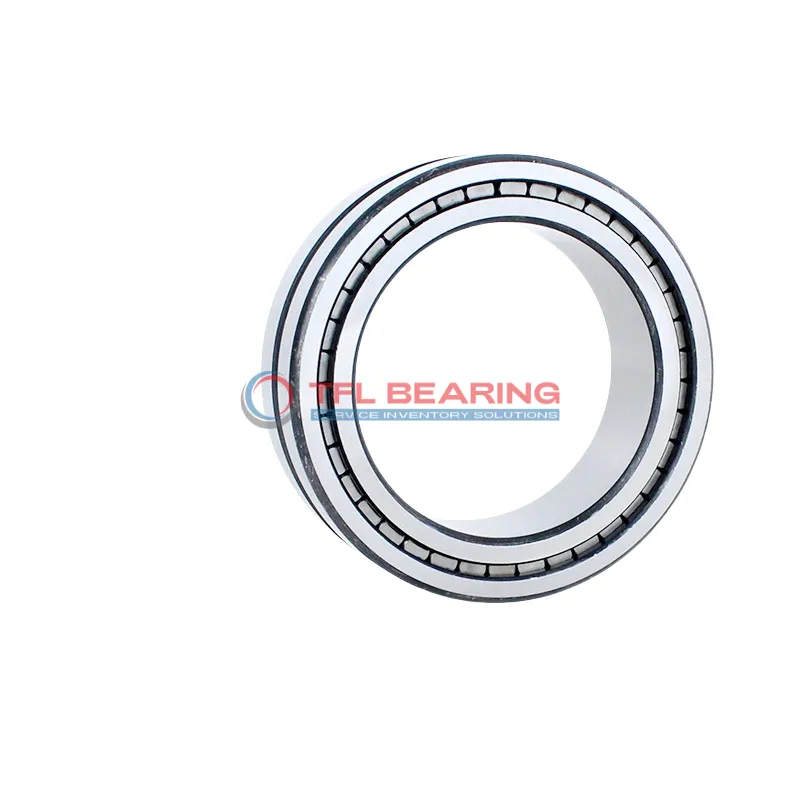

Double Row Full Complement Cylindrical Roller Bearings NNF 5012 ADB-2LSV

Double Row Full Complement Cylindrical Roller Bearings NNF 5012 ADB-2LSV

The NNF 5012 ADB-2LSV is a double row full complement cylindrical roller bearing, measuring 60mm by 95mm by 46mm. Made from durable 52100 chrome steel, it handles combined loads with a dynamic radial load capacity of 30150 lbf.

Its sealed design keeps contaminants out, while the full complement roller arrangement boosts load capacity. The bearing operates smoothly at speeds up to 1000 RPM and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where high radial loads are common.

Weighing 1.17kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses. Grease or oil lubrication options provide flexibility for different maintenance needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNF 5012 ADB-2LSV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 46 mm
  • Width Tolerance -0.15mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Sealed
  • Shoulder Diameter Inner Ring 73.7 mm
  • Width Annular Lubrication Groove Outer Ring 9.5 mm
  • Diameter Lubrication Hole (Outer Ring) 5 mm
  • Chamfer Dimension r3,4(min.) 0.6 mm
  • Ring Material 52100 Chrome Steel
  • Roller Material 52100 Chrome Steel
  • Cage Material Full complement (no cage)
  • Dynamic Radial Load 30150 lbf
  • Static Radial Load 46800 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.17 kg
  • Outer Ring Width 45 mm
  • Snap Ring Groove Diameter At Outer Ring 92.4 mm
  • Distance Between Two Snap Ring Grooves Of The Outer Ring Outside Surface C1 40.2 mm
  • Tolerance For Distance C1 0.2 mm
  • Distance Outer Ring Side Face - Snap Ring Groove 2.4 mm
  • Width Snap Ring Groove Outer Ring 3.2 mm
  • Chamfer Dimension r(min.) 1 mm
  • Snap ring Seeger SW 95
  • Snap ring in accordance with DIN 471 95x3

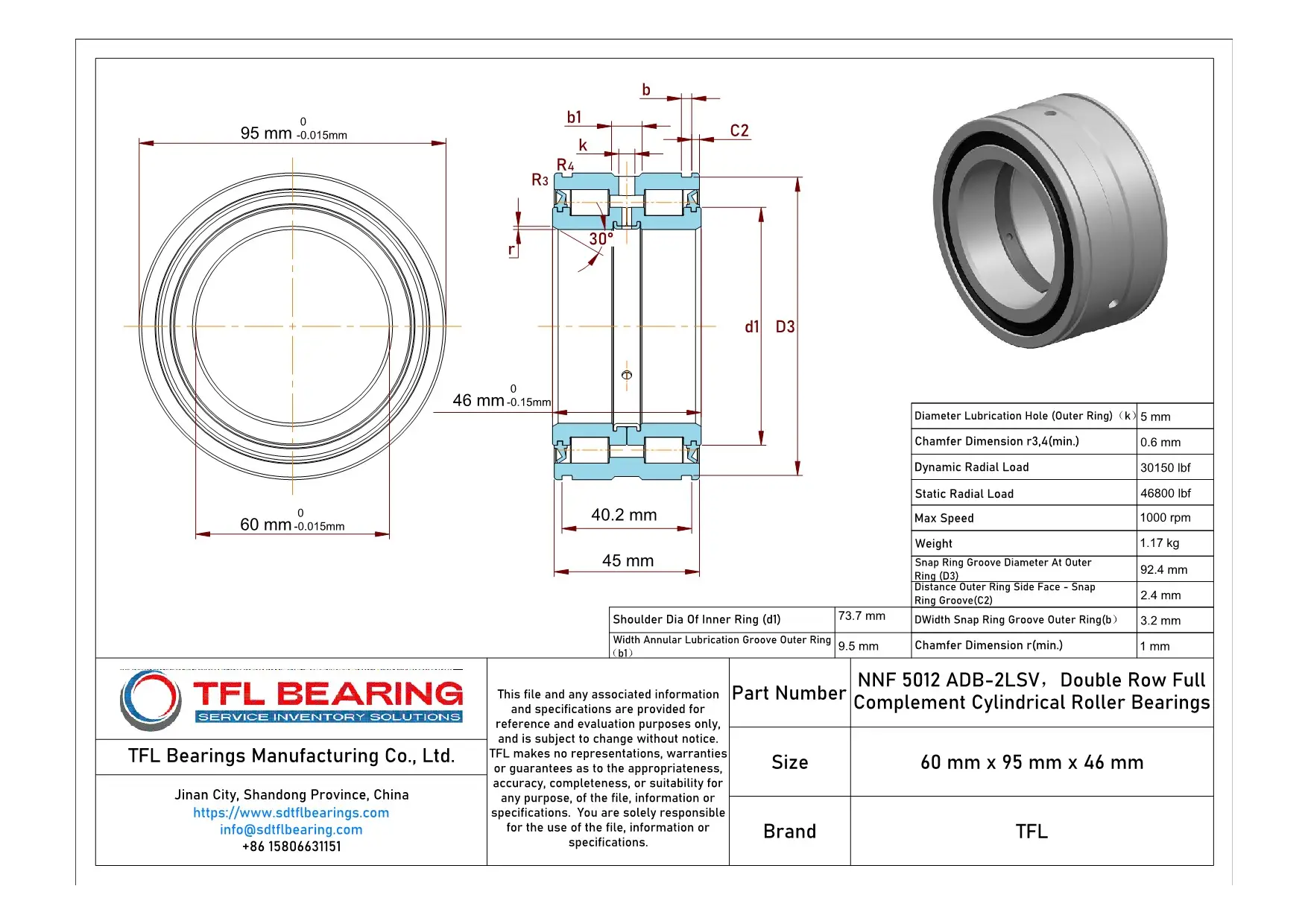

Double Row Full Complement Cylindrical Roller Bearings NNF 5012 ADB-2LSV dimension drawing
Download DWG Download PDF

Features

Performance Features of NNF 5012 ADB-2LSV Bearing

NNF 5012 ADB-2LSV Bearing is built with double-row full complement cylindrical rollers, offering high load capacity and durability.
Its 52100 chrome steel construction ensures resistance to wear, even under heavy radial loads up to 30150 lbf.

The sealed design protects against contaminants, making it suitable for harsh environments.
Grease or oil lubrication options provide flexibility for different operating conditions.

With a maximum speed of 1000 rpm, it balances performance and reliability.
The temperature range of -30° to 110°C ensures stable operation in various climates.

NNF 5012 ADB-2LSV Bearing’s full complement design eliminates the need for a cage, maximising roller count.
This enhances load distribution and extends service life in demanding applications.

Application

Industrial Uses of NNF 5012 ADB-2LSV Bearing
NNF 5012 ADB-2LSV Bearing is commonly used in heavy machinery like gearboxes and industrial presses, where its double-row design handles high radial loads with ease. The sealed construction keeps contaminants out, ensuring long service life even in harsh environments.

How Does NNF 5012 ADB-2LSV Bearing Improve Performance?
In automotive applications, NNF 5012 ADB-2LSV Bearing supports wheel hubs and transmissions, providing stability under combined loads. Its full complement roller arrangement maximises load capacity without needing a cage, ideal for compact spaces.

Built for Heavy-Duty Use: NNF 5012 ADB-2LSV Bearing
NNF 5012 ADB-2LSV Bearing excels in construction equipment, such as excavators and cranes, where its chrome steel rollers withstand intense stress. The grease lubrication option simplifies maintenance in remote or dusty sites.

Automotive vs Aerospace: Applications of NNF 5012 ADB-2LSV Bearing
While NNF 5012 ADB-2LSV Bearing fits well in truck axles, its precision also suits aerospace landing gear systems. The metric sizing and DIN-compliant snap rings ensure compatibility across European engineering standards.

Perfect Fit for Automation: NNF 5012 ADB-2LSV Bearing
NNF 5012 ADB-2LSV Bearing works smoothly in robotic arms and assembly lines, thanks to its low-friction rollers. The temperature range of -30° to 110°C covers most factory conditions without performance drops.
