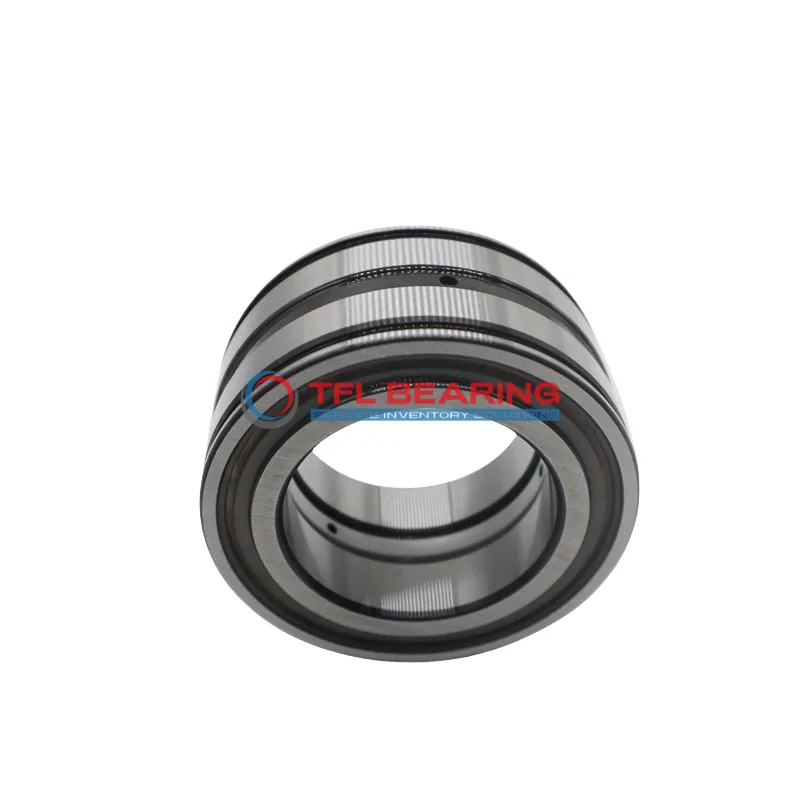

Double Row Full Complement Cylindrical Roller Bearings NNCL 4980 CV

Double Row Full Complement Cylindrical Roller Bearings NNCL 4980 CV

The NNCL 4980 CV is a double-row cylindrical roller bearing with a 400mm bore and 540mm outer diameter, built for heavy combined loads. Made from durable 52100 chrome steel, it handles radial loads up to 544500 lbf and operates smoothly at 1000 RPM.

Its full-complement design (no cage) maximises roller count for higher load capacity, while the open seal allows easy lubrication with grease or oil. The bearing works in temperatures from -30°C to 110°C.

With a 140mm width and 4mm chamfer, it fits securely in industrial setups. The design permits up to 7mm axial displacement, useful in machinery with slight misalignment.

Ideal for heavy equipment like presses or large gearboxes where high radial loads are common. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNCL 4980 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 400 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 140 mm
  • Width Tolerance -0.40mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 7 mm
  • Ring Material 52100 Chrome Steel
  • Roller Material 52100 Chrome Steel
  • Cage Material Full complement (no cage)
  • Dynamic Radial Load 544500 lbf
  • Static Radial Load 1350000 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

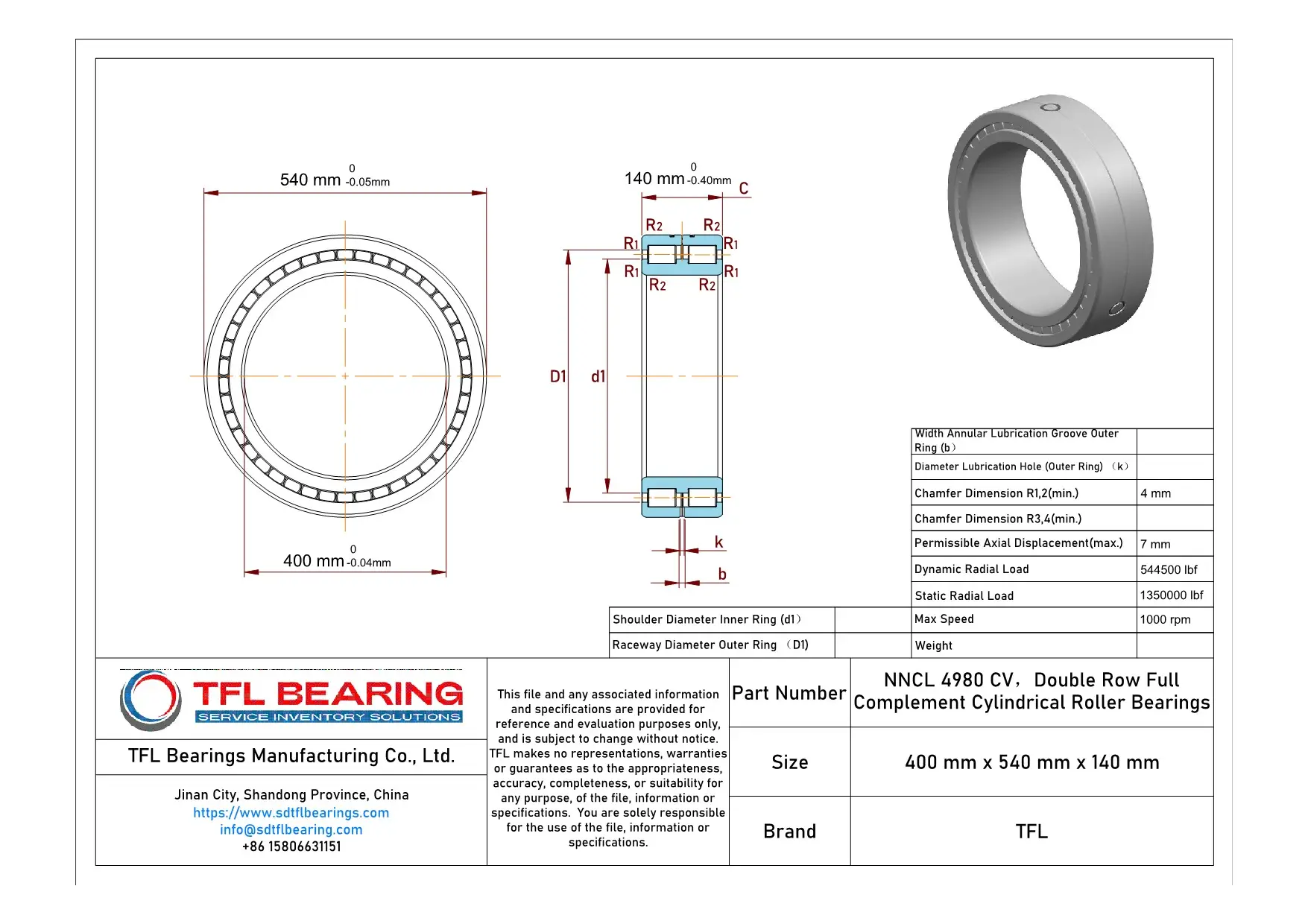

Double Row Full Complement Cylindrical Roller Bearings NNCL 4980 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NNCL 4980 CV Bearing

NNCL 4980 CV Bearing is constructed with double-row full complement cylindrical rollers, offering high load capacity and stability.
Its chrome steel rings and rollers provide excellent resistance to wear, ensuring long-lasting performance.

The bearing handles combined loads efficiently, with a dynamic radial load capacity of 544,500 lbf.
It operates smoothly at speeds up to 1,000 rpm, making it suitable for heavy-duty applications.

NNCL 4980 CV Bearing works in temperatures ranging from -30° to 110°C, adapting to various industrial environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The absence of a cage in NNCL 4980 CV Bearing maximises roller count, enhancing load distribution and durability.
Precision tolerances ensure reliable operation, even under demanding conditions.

Application

Industrial Uses of NNCL 4980 CV Bearing
NNCL 4980 CV Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its double-row full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

In wind turbine applications, NNCL 4980 CV Bearing supports the main shaft, providing stability under combined loads. Its chrome steel construction ensures durability even in harsh outdoor environments.

For mining equipment, NNCL 4980 CV Bearing’s high static radial load capacity makes it ideal for crushers and conveyors. The absence of a cage allows for more rollers, enhancing load distribution and performance.
