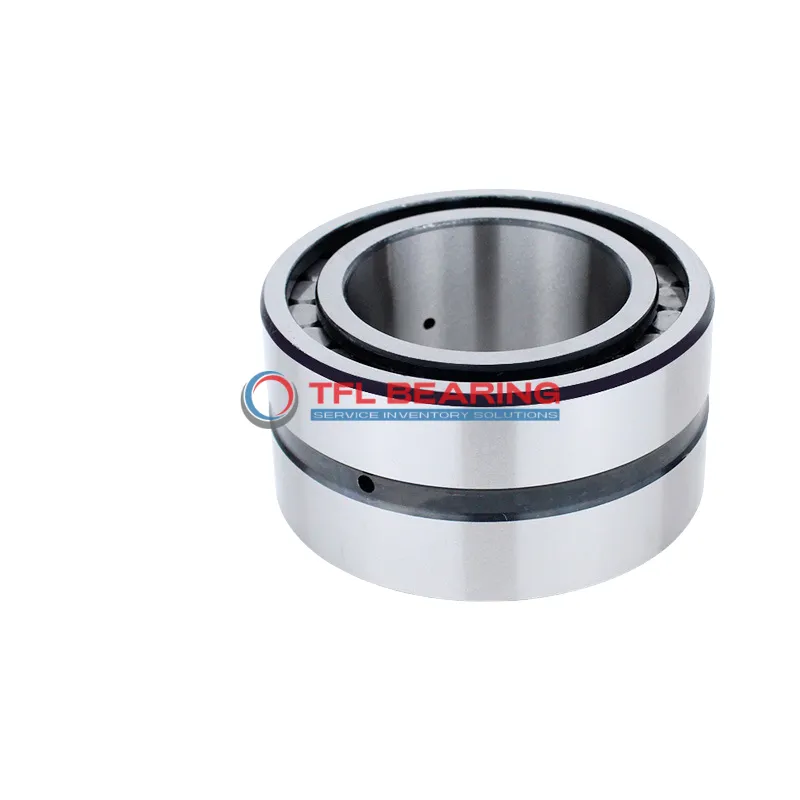

Double Row Full Complement Cylindrical Roller Bearings NNC 4960 CV

Double Row Full Complement Cylindrical Roller Bearings NNC 4960 CV

The NNC 4960 CV is a double row full complement cylindrical roller bearing with a 300mm bore and 420mm outer diameter, built from tough 52100 chrome steel. It handles heavy radial loads up to 378000 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design maximises load capacity without a cage, while the open seal allows easy lubrication with grease or oil. The bearing operates reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 52.9kg, it’s a robust solution for demanding applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNC 4960 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 420 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 118 mm
  • Width Tolerance -0.35mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Diameter Inner Ring 341 mm
  • Raceway Diameter Outer Ring 374 mm
  • Width Annular Lubrication Groove Outer Ring 9.4 mm
  • Diameter Lubrication Hole (Outer Ring) 5 mm
  • Chamfer Dimension r1,2(min.) 3 mm
  • Ring Material 52100 Chrome Steel
  • Roller Material 52100 Chrome Steel
  • Cage Material Full complement (no cage)
  • Dynamic Radial Load 378000 lbf
  • Static Radial Load 843750 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 52.9 kg

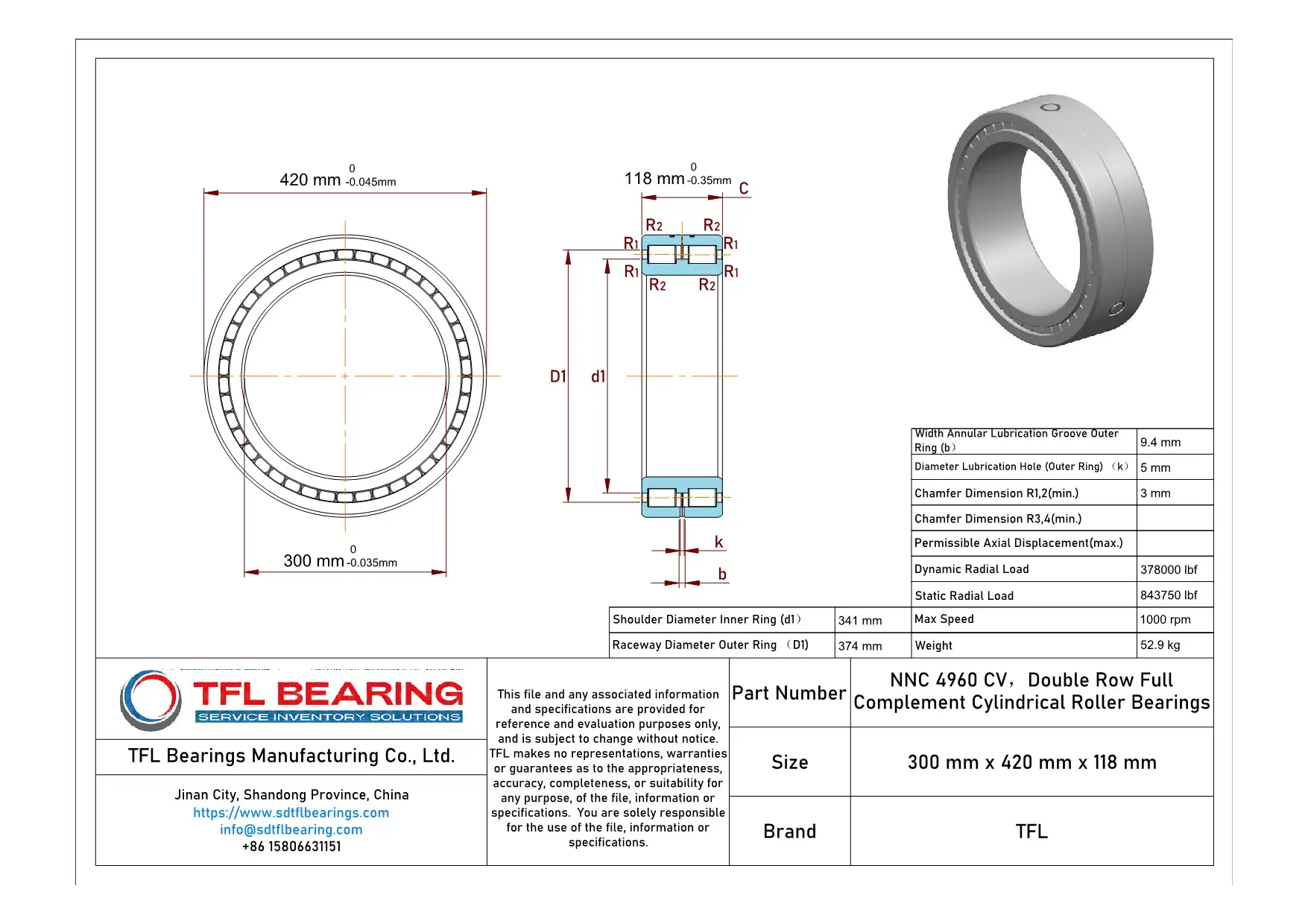

Double Row Full Complement Cylindrical Roller Bearings NNC 4960 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NNC 4960 CV Bearing

NNC 4960 CV Bearing is built with double-row full complement cylindrical rollers, offering high load capacity and stability.
Its 52100 chrome steel construction ensures durability and resistance to wear under heavy radial loads.

The bearing handles dynamic radial loads up to 378,000 lbf, making it suitable for demanding industrial applications.
With a maximum speed of 1,000 rpm, it balances performance and reliability in various conditions.

NNC 4960 CV Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The full complement roller arrangement maximizes load distribution, enhancing the bearing’s service life.
Precision tolerances ensure smooth operation and consistent performance in combined load scenarios.

Application

Industrial Uses of NNC 4960 CV Bearing
NNC 4960 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without a cage, making it ideal for slow-speed, high-load applications.

Where Is NNC 4960 CV Bearing Used?
You’ll often find NNC 4960 CV Bearing in wind turbine gearboxes, where its robust construction and grease lubrication withstand harsh environmental conditions. Its metric sizing also makes it a reliable choice for European-manufactured equipment.

Built for Heavy-Duty Use: NNC 4960 CV Bearing
NNC 4960 CV Bearing excels in steel mills and mining equipment, thanks to its chrome steel rollers and rings that resist wear under extreme pressure. The open design allows for easy lubrication, extending service life in demanding environments.

Automotive vs Aerospace: Applications of NNC 4960 CV Bearing
In automotive applications, NNC 4960 CV Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment due to its high static load capacity. The temperature range ensures performance in varied climates.

Practical Applications of NNC 4960 CV Bearing
NNC 4960 CV Bearing is a go-to for paper mill machinery, where its ability to handle combined loads keeps production lines running smoothly. The lack of a cage means fewer points of failure, reducing maintenance downtime.
