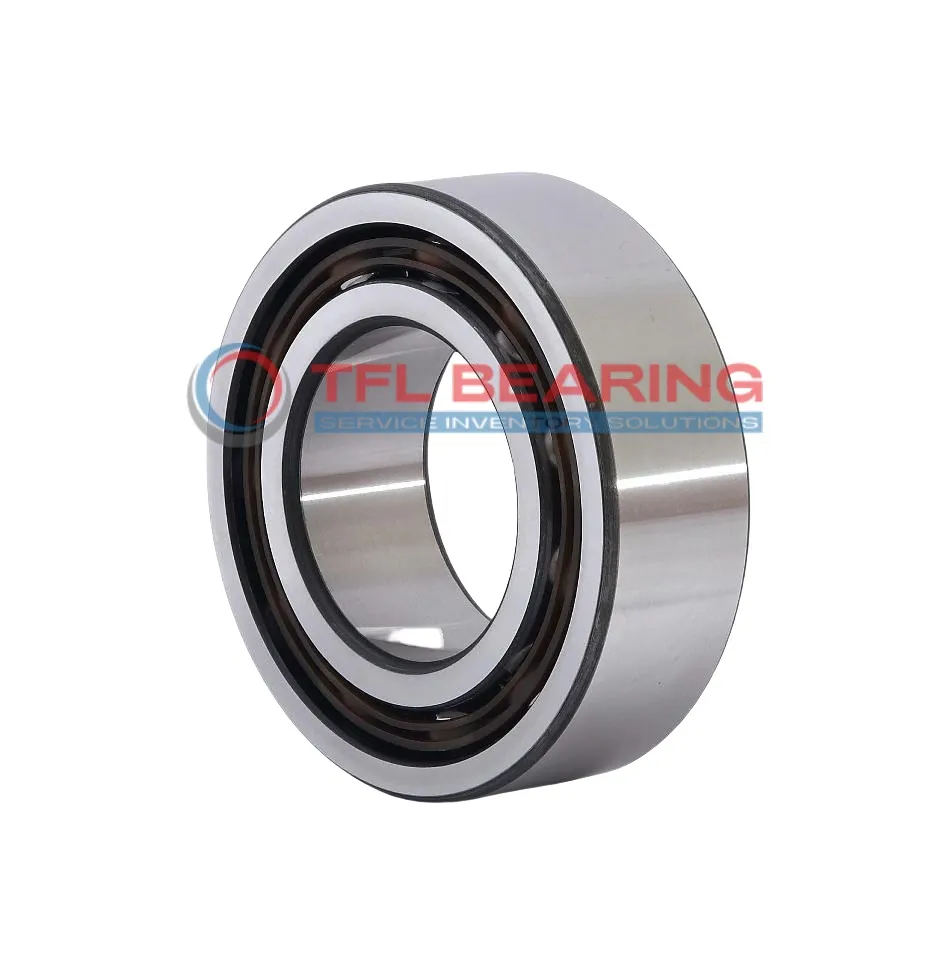

Double Row Deep Groove Ball Bearings 4214 ATN9

Double Row Deep Groove Ball Bearings 4214 ATN9

The 4214 ATN9 is a double-row deep groove ball bearing measuring 70mm by 125mm by 31mm, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 15795 lbf and can handle speeds of 8000 RPM, making it suitable for demanding applications.

With an open design and nylon cage, it offers smooth operation and easy maintenance. The bearing operates efficiently in temperatures ranging from -30°C to 110°C, ensuring versatility in various environments.

Its double-row construction provides added stability, ideal for machinery with high radial load requirements. The ABEC-1 tolerance and C0 radial clearance ensure consistent performance.

Weighing 1500g, it’s a robust choice for industrial equipment like pumps or electric motors. Compliant with RoHS standards, it’s a safe and dependable option for your needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 4214 ATN9
  • Brand TFL & OEM
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.01mm to 0.03mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 15795 lbf
  • Static Radial Load 16538 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 8000 rpm
  • Weight 1500 g
  • Price（$） 45.39
Double Row Deep Groove Ball Bearings 4214 ATN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 4214 ATN9 Bearing for Precision Tasks?

4214 ATN9 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 15795 lbf, making it suitable for demanding industrial applications.

The nylon cage in 4214 ATN9 Bearing helps reduce friction and noise during operation.
With a maximum speed of 8,000 rpm, it offers a balance of performance and durability.

4214 ATN9 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Industrial Uses of 4214 ATN9 Bearing
4214 ATN9 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design provides stable radial load support. The open seal allows for easy lubrication, extending its service life in demanding environments.

What Makes 4214 ATN9 Bearing a Preferred Choice?
In automotive applications, 4214 ATN9 Bearing fits well in wheel hubs and transmissions, thanks to its high dynamic load capacity. The chrome steel construction ensures durability even under continuous use.

Built for Heavy-Duty Use: 4214 ATN9 Bearing
For automation equipment, 4214 ATN9 Bearing offers reliable performance in robotic arms and assembly lines. Its nylon cage reduces friction, making it suitable for high-speed operations.

Medical vs Industrial: Where 4214 ATN9 Bearing Excels
While 4214 ATN9 Bearing is robust enough for industrial presses, its precision also makes it useful in medical devices like centrifuges. The ABEC-1 tolerance ensures consistent performance in sensitive applications.

Perfect Fit for Automation: 4214 ATN9 Bearing
In consumer electronics, 4214 ATN9 Bearing can be found in high-power tools and printers, where its radial load handling keeps devices running smoothly. The wide temperature range adds versatility for various environments.
