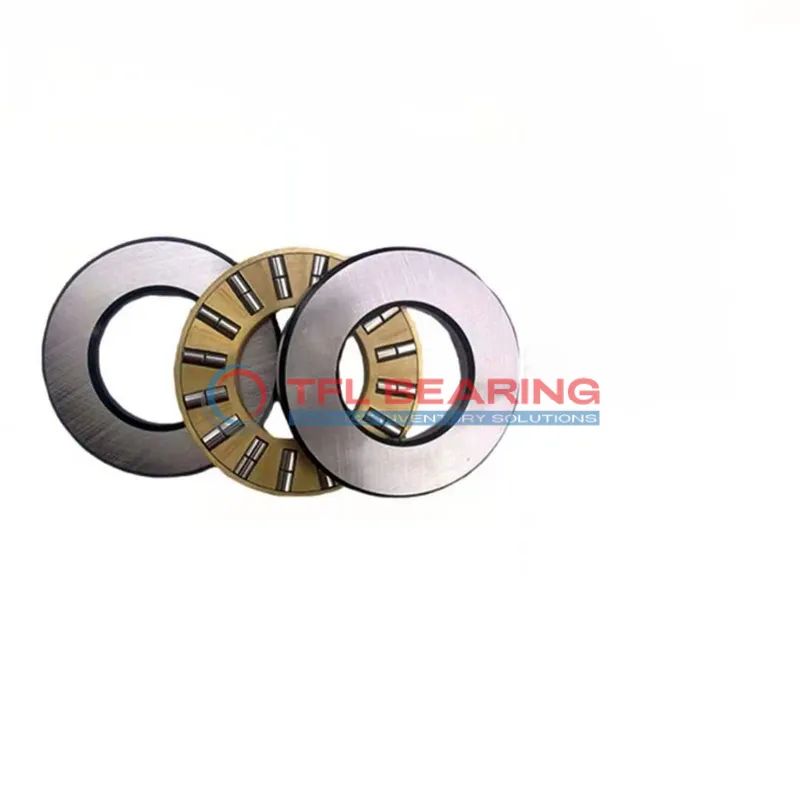

Double Row Cylindrical Roller Thrust Bearings 89436 M

Double Row Cylindrical Roller Thrust Bearings 89436 M

The 89436 M is a double-row cylindrical roller thrust bearing with a 180mm bore and 360mm outer diameter, built from sturdy chrome steel. It handles heavy thrust loads up to 396000 lbf and operates smoothly at speeds up to 800 RPM.

Its machined brass cage ensures durability, while the two-row design provides extra stability under high pressure. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery like industrial presses or large gear systems where robust thrust support is needed.

Weighing 60.2kg, it’s built for demanding applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89436 M
  • Size 180 mm x 360 mm x 109 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.040mm to 0
  • Width 109 mm
  • Height Tolerance -0.40mm to +0.025mm
  • Outside Diameter Shaft Washer 360 mm
  • Bore Diameter Housing Washer 184 mm
  • Height Shaft Washer 36.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 396000 lbf
  • Static Radial Load 1800000 lbf
  • Max Speed 800 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 60.2 kg
  • Roller And Cage Thrust Assembly K 89436 M
  • Shaft Washer WS 89436
  • Housing Washer GS 89436
Double Row Cylindrical Roller Thrust Bearings 89436 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 89436 M Bearing

89436 M Bearing is built with chrome steel washers and rollers, offering robust resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 396000 lbf, ensuring dependable performance in high-demand scenarios.

The machined brass cage maintains roller alignment, reducing friction and enhancing longevity.
With a maximum speed of 800 rpm, it delivers a balance of durability and efficiency.

89436 M Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its precise tolerances and sturdy construction make it suitable for industrial applications.

Application

Industrial Uses of 89436 M Bearing
The 89436 M Bearing is commonly used in heavy machinery, such as large presses and rolling mills, where its double-row design handles significant thrust loads. Its chrome steel construction ensures durability in demanding industrial environments.

In automotive applications, 89436 M Bearing supports components like heavy-duty transmissions and differential systems. The machined brass cage enhances stability, making it suitable for high-torque scenarios.

For wind turbine systems, 89436 M Bearing’s robust design helps manage axial loads in gearboxes. Its metric sizing ensures compatibility with European and Asian turbine models.

Where Is 89436 M Bearing Used?
You’ll often find 89436 M Bearing in construction equipment, such as cranes and excavators, where its high load capacity is essential. The wide temperature range also makes it reliable in varying weather conditions.

In marine applications, 89436 M Bearing is used in propeller shafts and thrust blocks. Its corrosion-resistant materials ensure long-term performance in saltwater environments.

Built for Heavy-Duty Use: 89436 M Bearing
The 89436 M Bearing excels in mining equipment, where its ability to handle extreme loads is crucial. The precision tolerances ensure smooth operation even under stress.

For power generation plants, 89436 M Bearing supports turbines and generators. Its high-speed capability and load ratings make it a dependable choice for continuous operation.

Automotive vs Aerospace: Applications of 89436 M Bearing
In automotive settings, 89436 M Bearing is ideal for heavy trucks and buses, providing reliable thrust support. Its brass cage reduces friction, extending service life.

Aerospace applications benefit from 89436 M Bearing’s precision in landing gear systems. The chrome steel rollers ensure consistent performance under high stress.
