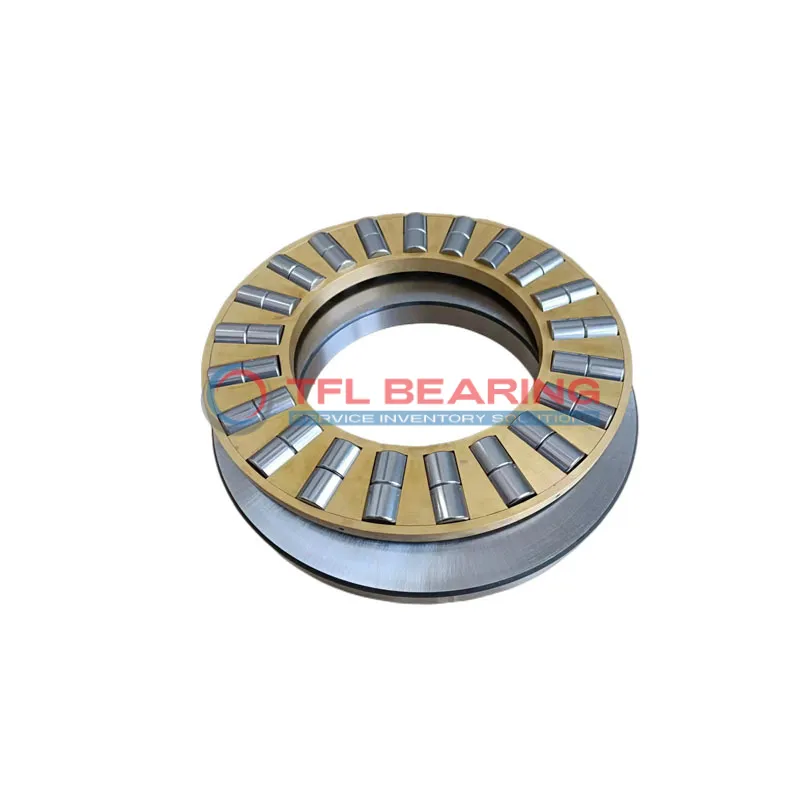

Double Row Cylindrical Roller Thrust Bearings 89420 M

Double Row Cylindrical Roller Thrust Bearings 89420 M

The 89420 M is a double-row cylindrical roller thrust bearing with a 100mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It manages heavy thrust loads up to 153000 lbf and operates smoothly at speeds up to 1400 RPM.

Its machined brass cage enhances durability, while the two-row design distributes loads evenly for reliable performance. The bearing functions well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial gearboxes or large machinery where high thrust loads are present.

Weighing 13.4kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards. The precise tolerances ensure a secure fit in various setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89420 M
  • Size 100 mm x 210 mm x 67 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.020mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 67 mm
  • Height Tolerance -0.30mm to +0.025mm
  • Outside Diameter Shaft Washer 210 mm
  • Bore Diameter Housing Washer 103 mm
  • Height Shaft Washer 22.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 3 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 153000 lbf
  • Static Radial Load 630000 lbf
  • Max Speed 1400 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 13.4 kg
  • Roller And Cage Thrust Assembly K 89420 M
  • Shaft Washer WS 89420
  • Housing Washer GS 89420
Double Row Cylindrical Roller Thrust Bearings 89420 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 89420 M Bearing

89420 M Bearing is built with a double-row cylindrical roller design, offering high thrust load capacity.
Its chrome steel rollers and washers provide excellent durability under heavy loads.

The machined brass cage ensures smooth operation and reduces friction during high-speed applications.
With a dynamic radial load capacity of 153,000 lbf, it handles demanding industrial tasks effortlessly.

89420 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its precise tolerances and robust construction make it suitable for long-term use in harsh environments.

The bearing’s design simplifies installation and maintenance, reducing downtime.
Weighing 13.4 kg, it balances strength and practicality for heavy-duty machinery.

Application

Industrial Uses of 89420 M Bearing
The 89420 M Bearing is commonly used in heavy machinery like industrial presses and large conveyor systems, where its double-row design handles significant thrust loads. Its chrome steel construction ensures durability even in demanding environments.

Where Is 89420 M Bearing Used?
You’ll often find the 89420 M Bearing in wind turbines and mining equipment, where its high dynamic load capacity keeps operations running smoothly. The machined brass cage adds stability, making it a reliable choice for long-term use.

Built for Heavy-Duty Use: 89420 M Bearing
In steel mills and paper processing plants, the 89420 M Bearing excels under extreme conditions. Its precise tolerances and robust design make it ideal for applications requiring consistent performance under heavy loads.

Automotive vs Aerospace: Applications of 89420 M Bearing
While the 89420 M Bearing isn’t typically used in aerospace, it’s a staple in heavy-duty automotive applications like large truck transmissions. Its high static load capacity ensures reliability in these demanding settings.

Perfect Fit for Automation: 89420 M Bearing
The 89420 M Bearing works well in automated production lines, particularly in equipment requiring precise axial load management. Its metric sizing and compatibility with SKF models make it a versatile option for various industrial setups.
