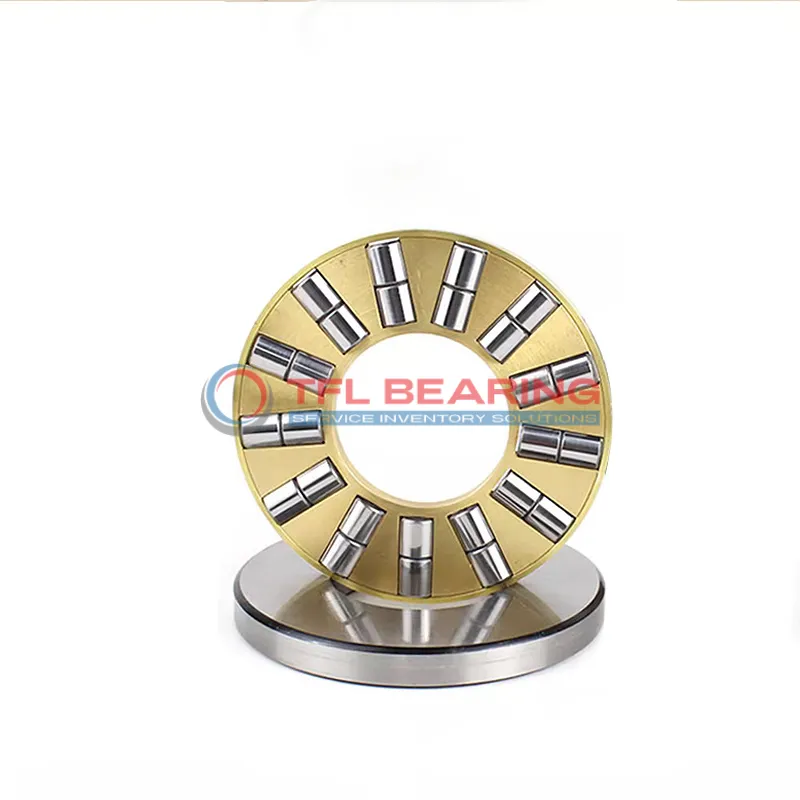

Double Row Cylindrical Roller Thrust Bearings 89417 M

Double Row Cylindrical Roller Thrust Bearings 89417 M

The 89417 M is a double-row cylindrical roller thrust bearing, measuring 85mm in bore and 180mm in outer diameter, crafted from sturdy chrome steel. It handles heavy thrust loads up to 110250 lbf and operates smoothly at speeds up to 1700 RPM.

Its machined brass cage enhances durability, while the double-row design provides extra stability under high loads. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where robust thrust load capacity is needed.

Weighing 8.65kg, it’s built for demanding applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89417 M
  • Size 85 mm x 180 mm x 58 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.020mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Height Tolerance -0.30mm to +0.025mm
  • Outside Diameter Shaft Washer 180 mm
  • Bore Diameter Housing Washer 88 mm
  • Height Shaft Washer 19.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2.1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 110250 lbf
  • Static Radial Load 434250 lbf
  • Max Speed 1700 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 8.65 kg
  • Roller And Cage Thrust Assembly K 89417 M
  • Shaft Washer WS 89417
  • Housing Washer GS 89417
Double Row Cylindrical Roller Thrust Bearings 89417 M dimension drawing
Download DWG Download PDF

Features

How Does 89417 M Bearing Handle Heavy Thrust Loads?

89417 M Bearing features double-row cylindrical rollers, designed to manage high thrust loads efficiently.
Its dynamic radial load capacity reaches 110250 lbf, ensuring robust performance in demanding conditions.
The machined brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1700 rpm, it delivers reliable operation under heavy loads.

What Makes 89417 M Bearing Suitable for High-Temperature Applications?

89417 M Bearing operates smoothly in temperatures ranging from -30° to 110 °C.
The chrome steel construction ensures resistance to thermal expansion and wear.
Its precision-engineered design maintains stability even in challenging environments.
This makes it ideal for applications requiring consistent performance under varying temperatures.

Built for Reliability: 89417 M Bearing

89417 M Bearing’s chrome steel rollers and washers provide excellent load-bearing capacity.
The machined brass cage enhances stability, reducing operational noise and vibration.
Its static radial load capacity of 434250 lbf ensures long-term reliability.
This design is perfect for heavy-duty machinery requiring dependable thrust support.

Steel vs Brass Cages: Benefits of 89417 M Bearing

89417 M Bearing uses a machined brass cage for superior strength and reduced wear.
This material choice ensures smooth operation and extended service life.
The cage design keeps rollers aligned, minimising friction and maintenance needs.
It’s a practical solution for applications demanding durability and precision.

Performance Features of 89417 M Bearing

89417 M Bearing’s double-row cylindrical rollers distribute loads evenly.
The chrome steel components resist wear, ensuring consistent performance over time.
With a height tolerance of -0.30mm to +0.025mm, it offers precise fit and function.
This makes it suitable for high-precision industrial applications.

Application

Industrial Uses of 89417 M Bearing
The 89417 M Bearing is commonly used in heavy machinery like industrial presses and large conveyor systems, where its double-row design handles significant thrust loads. Its chrome steel construction ensures durability in demanding environments.

Where Is 89417 M Bearing Used?
You’ll often find the 89417 M Bearing in automotive applications such as heavy-duty gearboxes and drivetrains, where its high load capacity is essential. The machined brass cage adds stability, making it reliable for long-term use.

Built for Heavy-Duty Use: 89417 M Bearing
In wind turbines, the 89417 M Bearing supports rotor shafts, handling both axial and radial loads efficiently. Its temperature range of -30° to 110°C makes it suitable for outdoor and variable conditions.

Automotive vs Aerospace: Applications of 89417 M Bearing
While the 89417 M Bearing excels in automotive transmissions, it’s also used in aerospace landing gear systems for its robust load handling. The metric sizing ensures compatibility across international standards.

Key Fields for 89417 M Bearing
The 89417 M Bearing is ideal for mining equipment, where its high static radial load capacity withstands extreme conditions. Its machined brass cage reduces friction, enhancing performance in gritty environments.
