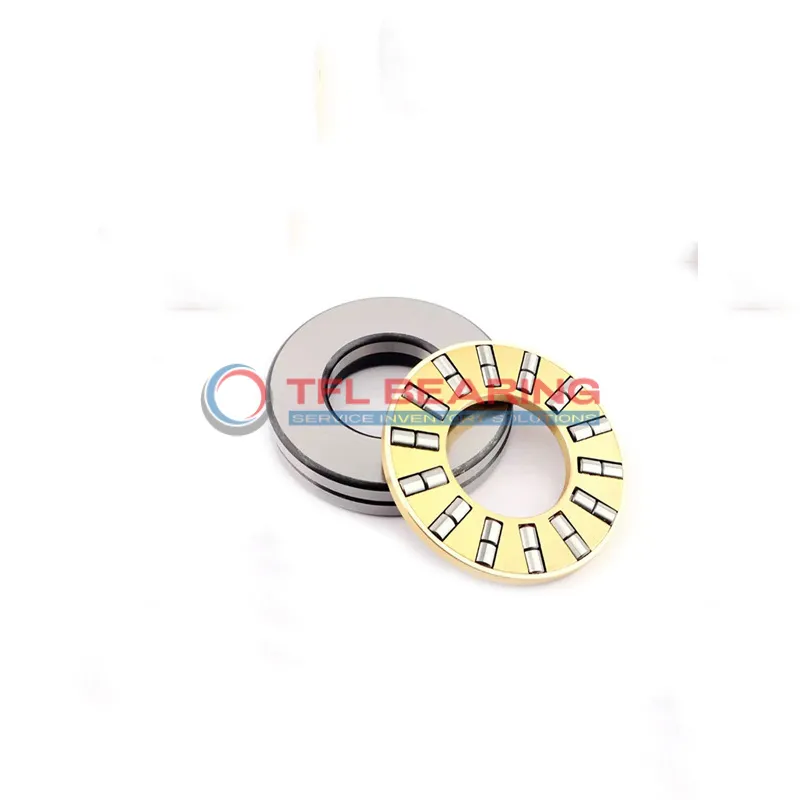

Double Row Cylindrical Roller Thrust Bearings 89326 M

Double Row Cylindrical Roller Thrust Bearings 89326 M

The 89326 M is a double-row cylindrical roller thrust bearing measuring 130mm by 225mm by 58mm, crafted from robust chrome steel for durability. It handles heavy thrust loads up to 126000 lbf and operates smoothly at speeds up to 1400 RPM.

Its machined brass cage ensures stability and reduces friction, while the two-row design enhances load distribution. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery, industrial gearboxes, or applications requiring high thrust capacity.

Weighing 11.2kg, it’s built for demanding environments. Compliant with RoHS and REACH standards for safety and environmental friendliness.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89326 M
  • Size 130 mm x 225 mm x 58 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 58 mm
  • Height Tolerance -0.40mm to +0.025mm
  • Outside Diameter Shaft Washer 225 mm
  • Bore Diameter Housing Washer 134 mm
  • Height Shaft Washer 20 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2.1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 126000 lbf
  • Static Radial Load 596250 lbf
  • Max Speed 1400 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 11.2 kg
  • Roller And Cage Thrust Assembly K 89326 M
  • Shaft Washer WS 89326
  • Housing Washer GS 89326
Double Row Cylindrical Roller Thrust Bearings 89326 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 89326 M Bearing

89326 M Bearing is built with chrome steel washers and rollers, offering robust resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 126000 lbf, ensuring dependable performance in tough conditions.

The machined brass cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1400 rpm, it delivers a balance of strength and efficiency.

89326 M Bearing operates smoothly in temperatures from -30° to 110°C, suitable for varied environments.
Its precise tolerances and double-row design provide stability under high loads.

Application

Industrial Uses of 89326 M Bearing
The 89326 M Bearing is commonly used in heavy machinery like industrial presses and large conveyor systems, where its double-row design handles significant axial loads. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 89326 M Bearing supports components such as gearboxes and drivetrains, providing reliable performance under high thrust loads. The machined brass cage adds stability, making it suitable for long-term use.

For automation systems, 89326 M Bearing is ideal for robotic arms and assembly lines, where precision and load capacity are key. Its metric sizing ensures compatibility with a wide range of equipment.

Medical equipment like MRI scanners also benefit from 89326 M Bearing’s robust design, which maintains performance in critical settings. The temperature range allows it to function reliably in various conditions.

In consumer electronics, 89326 M Bearing can be found in high-power tools and industrial printers, where its load-handling capabilities ensure smooth operation. The open design simplifies maintenance for extended service life.
