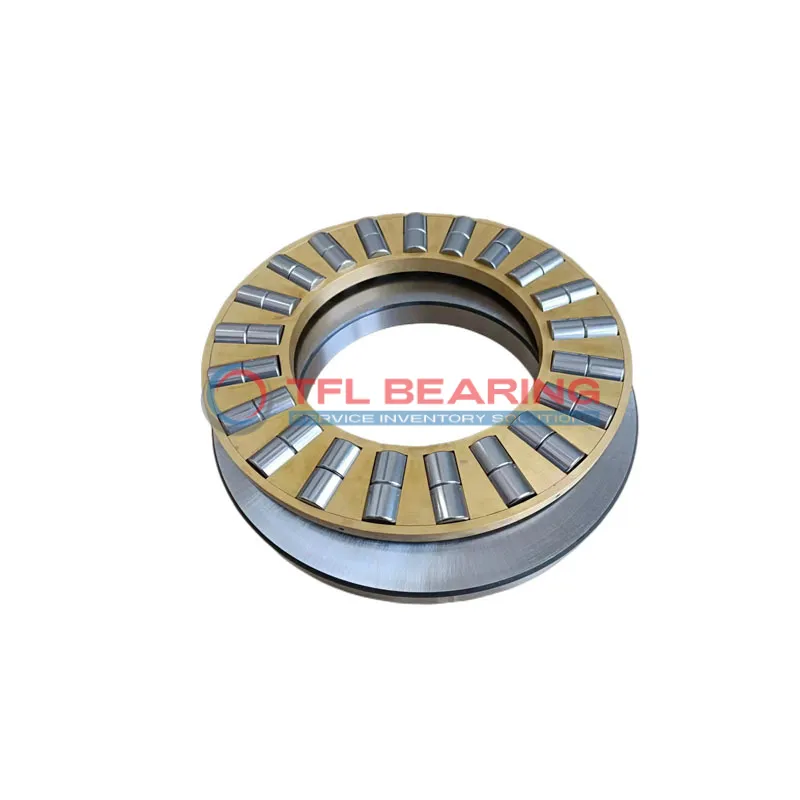

Double Row Cylindrical Roller Thrust Bearings 89322 M

Double Row Cylindrical Roller Thrust Bearings 89322 M

The 89322 M is a double-row cylindrical roller thrust bearing measuring 110mm by 190mm by 48mm, crafted from sturdy chrome steel for durability. It handles heavy thrust loads up to 90000 lbf and operates smoothly at speeds up to 1700 RPM.

Its machined brass cage ensures reliable performance, while the two-row design distributes loads evenly. The bearing works in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for heavy machinery or industrial equipment where high thrust loads are common.

Weighing 6.7kg, it’s built to last while meeting RoHS and REACH standards for safety and compliance. The included shaft and housing washers simplify installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89322 M
  • Size 110 mm x 190 mm x 48 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.020mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 48 mm
  • Height Tolerance -0.30mm to +0.025mm
  • Outside Diameter Shaft Washer 190 mm
  • Bore Diameter Housing Washer 113 mm
  • Height Shaft Washer 16.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 90000 lbf
  • Static Radial Load 411750 lbf
  • Max Speed 1700 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.7 kg
  • Roller And Cage Thrust Assembly K 89322 M
  • Shaft Washer WS 89322
  • Housing Washer GS 89322
Double Row Cylindrical Roller Thrust Bearings 89322 M dimension drawing
Download DWG Download PDF

Features

How Does 89322 M Bearing Handle Heavy Loads?

89322 M Bearing features double-row cylindrical rollers, designed to manage heavy thrust loads efficiently.
Its dynamic radial load capacity reaches 90000 lbf, making it suitable for demanding industrial applications.
The machined brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 1700 rpm, it balances performance and reliability in high-load scenarios.

Built for Reliability: 89322 M Bearing

89322 M Bearing is crafted from chrome steel, offering excellent resistance to wear and tear.
Its precise tolerances and robust construction ensure consistent performance under heavy loads.
The bearing operates smoothly within a temperature range of -30° to 110°C, adapting to various environments.
With a static radial load capacity of 411750 lbf, it provides long-term reliability.

Structural Advantages of 89322 M Bearing

89322 M Bearing’s double-row design distributes loads evenly, reducing stress on individual rollers.
The chrome steel rollers and washers enhance strength, ensuring prolonged service life.
Its machined brass cage maintains roller alignment, preventing premature wear.
The bearing’s dimensions (110 mm x 190 mm x 48 mm) make it ideal for compact yet high-load applications.

Why Choose 89322 M Bearing for Precision Tasks?

89322 M Bearing’s precise engineering ensures accurate performance in thrust applications.
The chrome steel construction resists deformation, maintaining alignment under heavy loads.
Its temperature range and RoHS compliance make it suitable for diverse industrial uses.
With interchangeable compatibility with SKF, it offers flexibility in replacement and maintenance.

Application

Industrial Uses of 89322 M Bearing
89322 M Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its double-row design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

Where Is 89322 M Bearing Used?
You’ll often find 89322 M Bearing in wind turbine systems, supporting the main shaft where reliability is key. Its chrome steel rollers provide durability in harsh outdoor conditions.

Built for Heavy-Duty Use: 89322 M Bearing
89322 M Bearing excels in mining equipment, such as conveyor systems, thanks to its high static radial load capacity. The precise tolerances make it ideal for demanding environments.

Automotive vs Aerospace: Applications of 89322 M Bearing
In automotive applications, 89322 M Bearing is used in heavy-duty transmissions, while in aerospace, it supports landing gear mechanisms. Its temperature range suits both industries well.

Practical Applications of 89322 M Bearing
For robotics, 89322 M Bearing is a solid choice for joint mechanisms due to its stability under load. The metric sizing ensures compatibility with European-designed automation systems.
