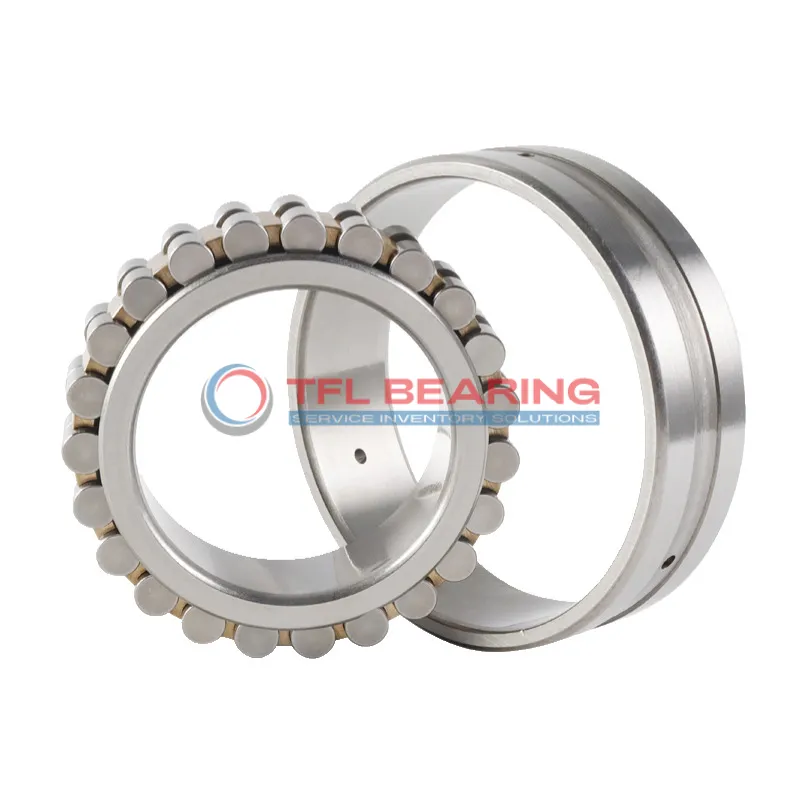

Double Row Cylindrical Roller Bearings BC2-8015/HB1

Double Row Cylindrical Roller Bearings BC2-8015/HB1

The BC2-8015/HB1 is a double-row cylindrical roller bearing with a large 690mm bore and 980mm outer diameter, designed for heavy-duty applications. It handles combined loads, supporting up to 2227500 lbf dynamically and 6075000 lbf statically.

With a width of 357.5mm, it offers stability and can operate at speeds up to 1000 RPM. The bearing works well in temperatures from -30°C to 110°C and can be lubricated with grease or oil.

Its design allows for axial displacement up to 105mm, making it suitable for machinery with slight misalignments. The chamfered edges (4mm outer, 7.5mm inner) ensure easier installation.

Ideal for industrial equipment like large gearboxes or rolling mills, where high radial and axial loads are common. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BC2-8015/HB1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 690 mm
  • Outer Dia 980 mm
  • Width 357.5mm
  • Chamfer Dimension Outer Ring(r1,2)(min.) 4 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 7.5 mm
  • Permissible Axial Displacement(max.) 105 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Dynamic Radial Load 2227500 lbf
  • Static Radial Load 6075000 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

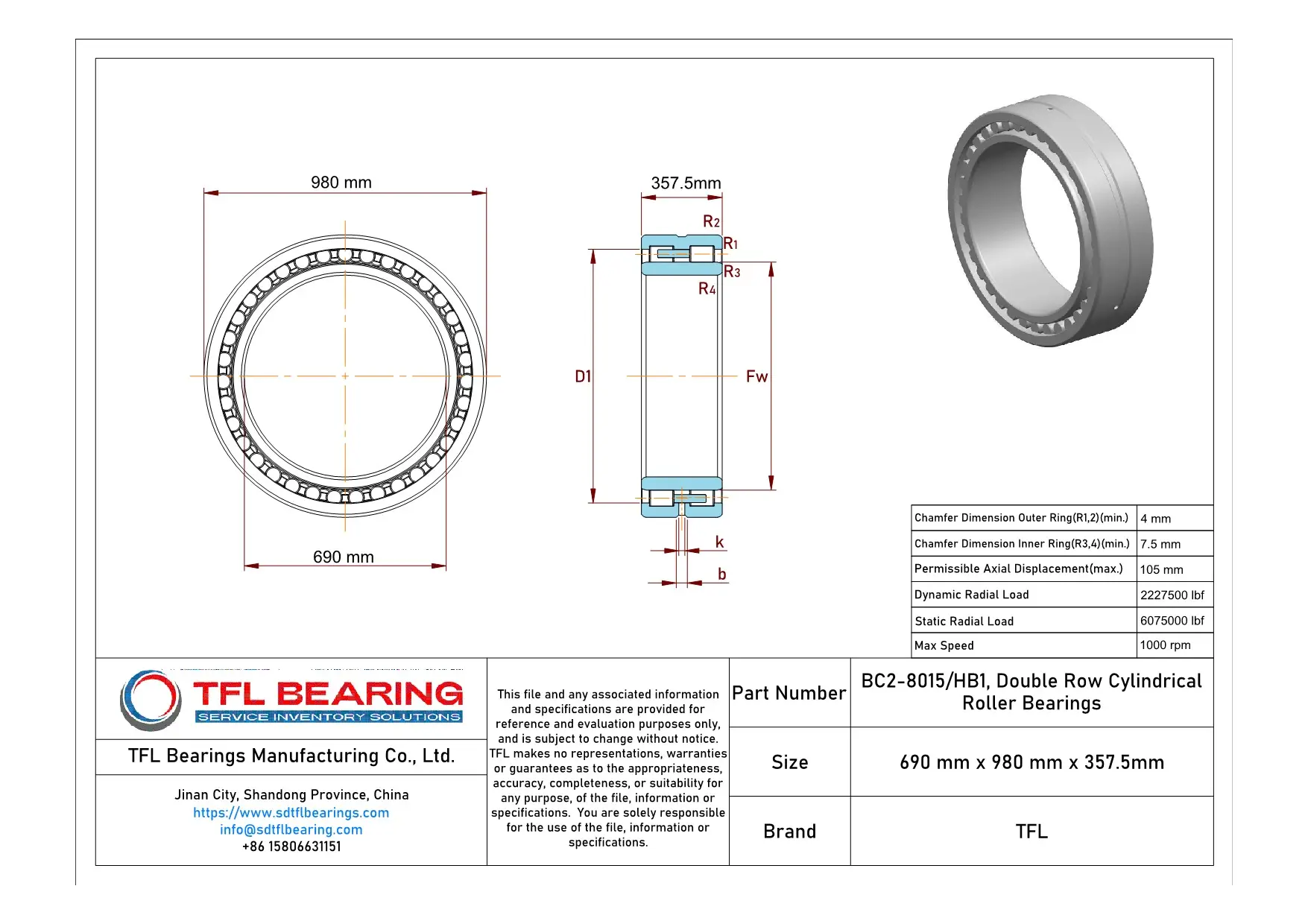

Double Row Cylindrical Roller Bearings BC2-8015/HB1 dimension drawing
Download DWG Download PDF

Features

Performance Features of BC2-8015/HB1 Bearing

BC2-8015/HB1 Bearing is designed for combined load applications, offering a dynamic radial load capacity of 2,227,500 lbf.
Its double-row cylindrical roller construction ensures stability and efficiency under heavy loads.

The bearing’s permissible axial displacement of 105 mm allows for flexibility in various industrial settings.
With a maximum speed of 1,000 rpm, it balances performance and durability.

BC2-8015/HB1 Bearing operates in temperatures from -30° to 110°C, making it suitable for diverse environments.
Its grease or oil lubrication options provide adaptability for different maintenance needs.

The chrome steel construction enhances wear resistance, extending the bearing’s service life.
Its large size (690 mm x 980 mm x 357.5 mm) is ideal for heavy machinery applications.

Application

Industrial Uses of BC2-8015/HB1 Bearing
BC2-8015/HB1 Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its double-row design handles both radial and axial loads efficiently. The generous axial displacement allowance makes it suitable for applications with slight misalignments.

Key Fields for BC2-8015/HB1 Bearing
In wind turbine systems, BC2-8015/HB1 Bearing supports the main shaft, offering reliable performance under varying wind loads. Its grease or oil lubrication options adapt well to outdoor conditions.

Where Is BC2-8015/HB1 Bearing Used?
You’ll find BC2-8015/HB1 Bearing in mining equipment, where its high static radial load capacity ensures stability in harsh environments. The metric sizing simplifies replacements in international machinery.

Built for Heavy-Duty Use: BC2-8015/HB1 Bearing
BC2-8015/HB1 Bearing excels in steel production lines, enduring extreme temperatures and heavy loads. The cylindrical roller design distributes stress evenly, prolonging service life.

Automotive vs Aerospace: Applications of BC2-8015/HB1 Bearing
While BC2-8015/HB1 Bearing isn’t typical in cars, it’s vital for aerospace landing gear components requiring precision under combined loads. Industrial uses still dominate its market.
