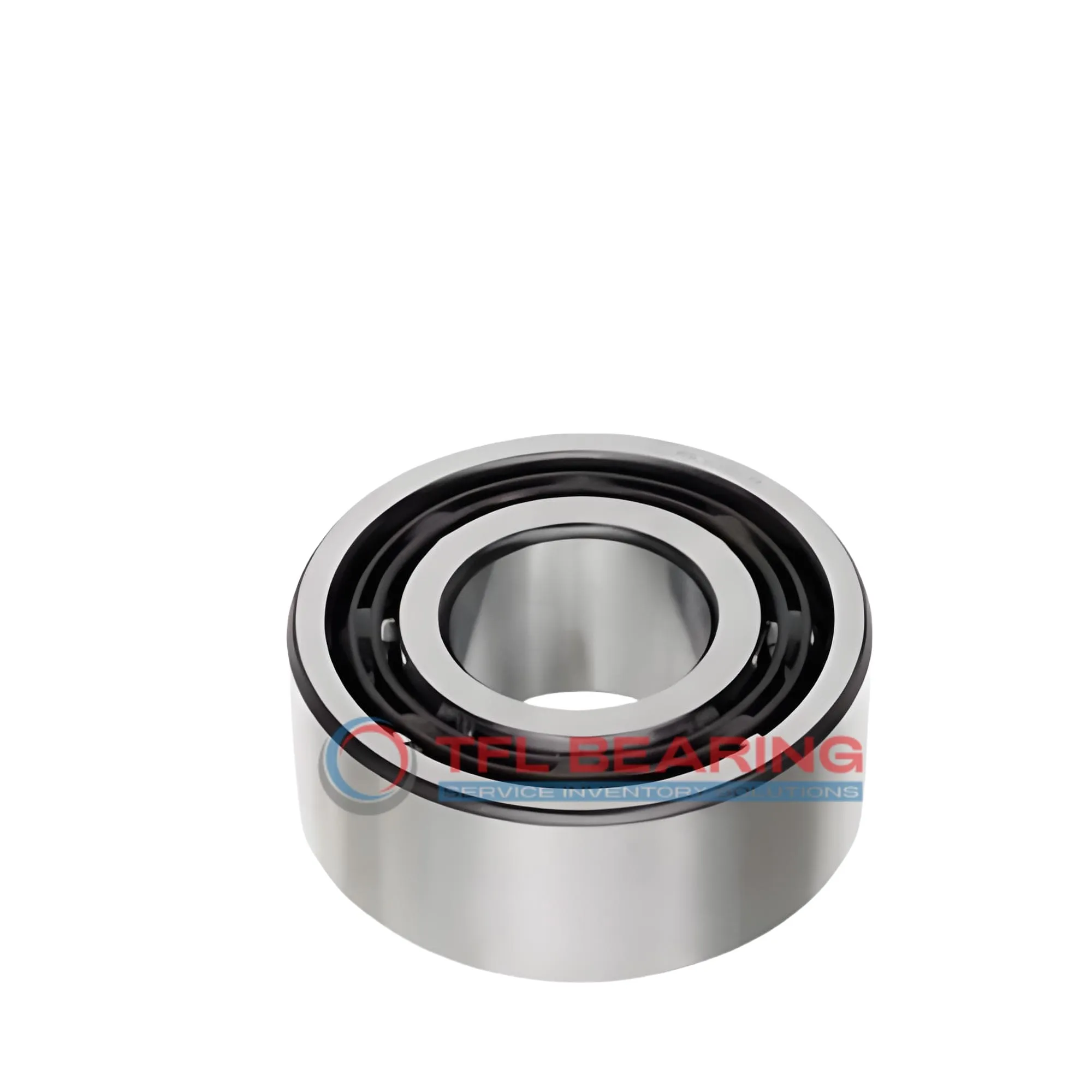

Double Row Angular Contact Ball Bearings (General) 3303 ATN9

Brand: TFL Bearing Interchangeable: SKF 3303 ATN9 17 mm × 47 mm × 22.2 mm Metric Open
Part number: 3303 ATN9
Double Row Angular Contact Ball Bearings (General) 3303 ATN9
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia17 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia47 mm
Outer Dia Tolerance-0.009mm to 0
Width22.2 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1 mm
Performance
Dynamic Radial Load4,860 lbf
Static Radial Load2,858 lbf
Max Speed14,000 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeOpen
Distance Pressure Point (a)28 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.18 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3303 ATN9 is a double-row angular contact ball bearing with a 17mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4860 lbf and operates smoothly at speeds up to 14,000 RPM.

Its open design and nylon cage reduce friction, while the double-row construction offers stability under angular loads. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.

Weighing just 0.18kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Features

Performance Features of 3303 ATN9 Bearing

3303 ATN9 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4860 lbf, ensuring reliable performance in various applications.
The nylon cage helps maintain smooth operation by keeping the balls properly aligned.
With a maximum speed of 14,000 rpm, it delivers both durability and efficiency.

Why Choose 3303 ATN9 Bearing for Precision Tasks?

3303 ATN9 Bearing’s double-row angular contact design provides excellent precision and load distribution.
The chrome steel construction ensures long-lasting performance even under demanding conditions.
Its P6 tolerance class (ABEC-3) guarantees consistent accuracy for high-precision applications.
The open seal type allows for easy lubrication, maintaining optimal performance over time.

Engineered for Reliability: 3303 ATN9 Bearing

3303 ATN9 Bearing is designed to withstand high speeds and heavy loads without compromising performance.
The chrome steel materials resist wear, ensuring a longer service life in various environments.
Its double-row construction enhances stability, making it suitable for angular contact applications.
With a temperature range of -30° to 110°C, it performs reliably in diverse operating conditions.

How Does 3303 ATN9 Bearing Reduce Friction?

3303 ATN9 Bearing’s precision-engineered design minimises friction for smoother operation.
The nylon cage reduces contact between balls, lowering friction and wear.
Its chrome steel construction ensures durability while maintaining low friction levels.
Proper lubrication further enhances its efficiency, making it ideal for high-speed applications.

Built for Durability: 3303 ATN9 Bearing

3303 ATN9 Bearing’s robust chrome steel construction ensures long-term durability.
The double-row design distributes loads evenly, reducing stress on individual components.
Its nylon cage provides excellent resistance to wear, extending the bearing’s lifespan.
With a static radial load capacity of 2858 lbf, it handles demanding applications with ease.

Application

Key Fields for 3303 ATN9 Bearing
In industrial settings, 3303 ATN9 Bearing is commonly used in machine tools and pumps, where its double-row design handles combined radial and axial loads efficiently. The open seal type simplifies lubrication, extending service life in demanding conditions.

Automotive applications like wheel hubs and transmissions benefit from 3303 ATN9 Bearing’s angular contact capability, ensuring smooth rotation under varying loads. Its metric sizing aligns well with standard automotive components.

For robotics, 3303 ATN9 Bearing’s nylon cage reduces friction in articulated joints, enhancing precision in automated movements. The P6 tolerance class guarantees consistent performance in high-speed operations.

In consumer appliances like washing machines, 3303 ATN9 Bearing’s chrome steel construction provides quiet, durable operation. The lubricated design minimises maintenance for household use.
