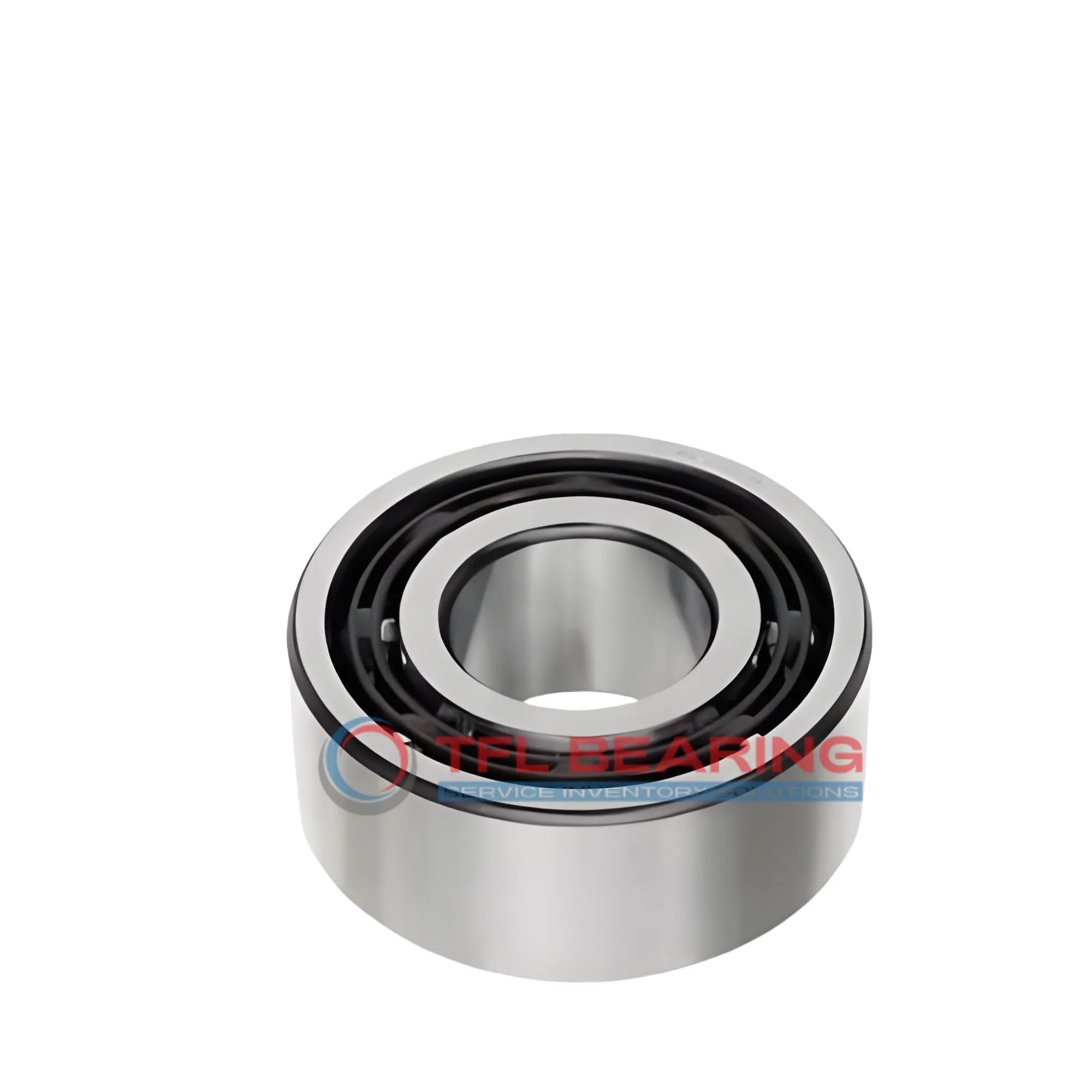

Double Row Angular Contact Ball Bearings (General) 3302 ATN9

Brand: TFL Bearing Interchangeable: SKF 3302 ATN9 15 mm × 42 mm × 19 mm Metric Open
Part number: 3302 ATN9
Double Row Angular Contact Ball Bearings (General) 3302 ATN9
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia42 mm
Outer Dia Tolerance-0.009mm to 0
Width19 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,398 lbf
Static Radial Load2,092 lbf
Max Speed16,000 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeOpen
Distance Pressure Point (a)24 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.13 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3302 ATN9 is a double-row angular contact ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3398 lbf and operates smoothly at speeds up to 16,000 RPM.

Its open design and nylon cage reduce friction, while the double-row construction enhances stability under angular loads. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like pumps or gearboxes where angular loads are present.

Weighing only 0.13kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Features

Performance Features of 3302 ATN9 Bearing

3302 ATN9 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 3398 lbf, making it suitable for high-performance applications.

The double-row angular contact design ensures stability and precision in operation.
With a maximum speed of 16,000 rpm, it delivers both durability and efficiency.

Nylon cage material reduces friction and noise, enhancing smooth performance.
The P6 tolerance class ensures consistent quality and reliability.

3302 ATN9 Bearing operates effectively in temperatures from -30° to 110°C.
Its open seal type allows for easy lubrication and maintenance.

Application

Common Applications of 3302 ATN9 Bearing
3302 ATN9 Bearing is widely used in industrial machinery, especially in applications needing high radial and axial load capacity, like pumps and compressors. Its double-row design offers stability, making it suitable for heavy-duty operations.

In automotive systems, 3302 ATN9 Bearing is commonly found in wheel hubs and transmissions, where its angular contact feature handles combined loads effectively. The P6 tolerance ensures precise alignment, crucial for vehicle performance.

For automation equipment, 3302 ATN9 Bearing supports robotic arms and conveyor systems, providing smooth motion with minimal friction. The nylon cage reduces noise, ideal for environments requiring quiet operation.

In household appliances, 3302 ATN9 Bearing can be seen in washing machines and fans, where its durability and speed rating ensure long-lasting performance. The lubricated design also minimizes maintenance needs.
