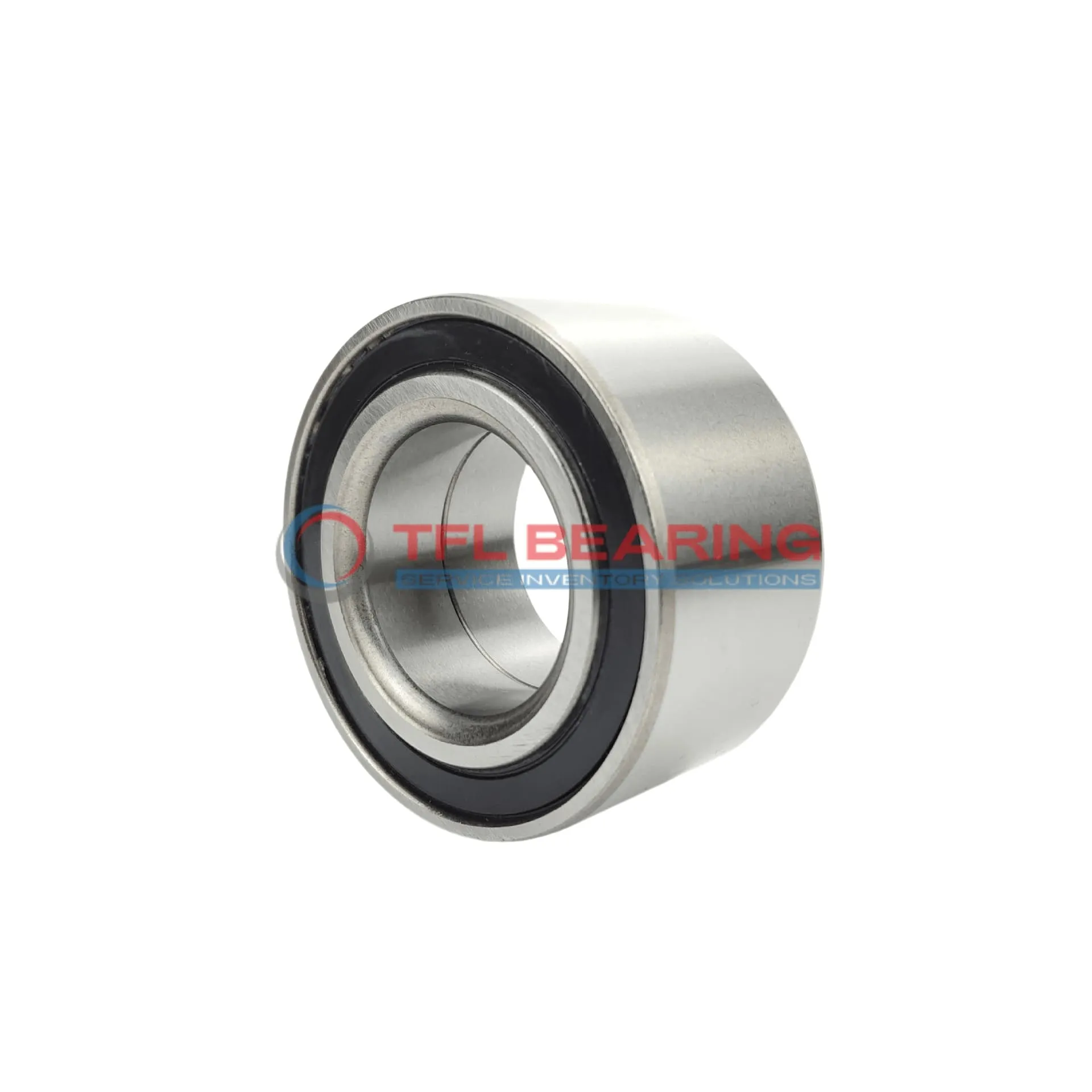

Double Row Angular Contact Ball Bearings (General) 3302 A-2RS1

Brand: TFL Bearing Interchangeable: SKF 3302 A-2RS1 15 mm × 42 mm × 19 mm Metric Sealed
Part number: 3302 A-2RS1
Double Row Angular Contact Ball Bearings (General) 3302 A-2RS1
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia42 mm
Outer Dia Tolerance-0.009mm to 0
Width19 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1 mm
Performance
Dynamic Radial Load3,398 lbf
Static Radial Load2,092 lbf
Max Speed12,000 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeSealed
Distance Pressure Point (a)24 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.13 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3302 A-2RS1 is a double-row angular contact ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3398 lbf and operates smoothly at speeds up to 12,000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like pumps or electric motors where angular contact loads are common.

Weighing just 0.13kg, it’s compact yet robust. Compliant with RoHS and REACH standards for safe use.

Features

Performance Features of 3302 A-2RS1 Bearing

3302 A-2RS1 Bearing is built with double-row angular contact design, offering excellent radial load capacity.
Its dynamic radial load rating of 3398 lbf ensures reliable performance in various applications.
The sealed construction keeps contaminants out, extending the bearing’s service life.
With a maximum speed of 12,000 rpm, it delivers smooth and efficient operation.

How Is 3302 A-2RS1 Bearing Engineered for Reliability?

3302 A-2RS1 Bearing features chrome steel rings and balls, providing durability and resistance to wear.
The stainless steel cage maintains proper ball alignment, reducing friction and noise.
Its P6 tolerance class ensures precision, making it suitable for high-performance applications.
The sealed design also helps retain lubrication, reducing maintenance needs.

Designed for Durability: 3302 A-2RS1 Bearing

3302 A-2RS1 Bearing’s double-row design enhances load distribution, improving overall stability.
It operates smoothly within a temperature range of -30° to 110°C, adapting to various environments.
The bearing’s sealed construction protects against dust and moisture, ensuring long-term reliability.
Its 15 mm bore size and 42 mm outer diameter make it versatile for different installations.

Why Choose 3302 A-2RS1 Bearing for Precision Tasks?

3302 A-2RS1 Bearing’s P6 tolerance class ensures high precision, ideal for demanding applications.
The double-row angular contact design provides excellent load handling and stability.
Its sealed construction maintains lubrication and prevents contamination, reducing downtime.
With a maximum speed of 12,000 rpm, it balances performance and durability.

Structural Advantages of 3302 A-2RS1 Bearing

3302 A-2RS1 Bearing’s double-row design allows for better load distribution and reduced stress.
The chrome steel construction offers high strength and resistance to wear.
Its sealed design ensures consistent performance by keeping out contaminants.
The bearing’s 19 mm width provides a compact yet robust solution for various machinery.

Application

Common Applications of 3302 A-2RS1 Bearing
3302 A-2RS1 Bearing works well in industrial settings, especially for machine tools and conveyor systems that need reliable angular contact support. Its double-row design helps manage both radial and axial loads efficiently.

In automotive applications, 3302 A-2RS1 Bearing is often used in gearboxes and wheel hubs, where its sealed construction keeps contaminants out. The chrome steel rings ensure long-lasting performance even under heavy use.

For automation equipment like robotic arms, 3302 A-2RS1 Bearing provides smooth movement thanks to its precision tolerances. The stainless steel cage adds durability, making it suitable for high-speed operations.

In household appliances such as washing machines, 3302 A-2RS1 Bearing offers quiet and stable rotation. Its lubricated design reduces maintenance needs, which is handy for everyday devices.
