Double Row Angular Contact Ball Bearings (General) 3203 A-2ZTN9/MT33

Double Row Angular Contact Ball Bearings (General) 3203 A-2ZTN9/MT33

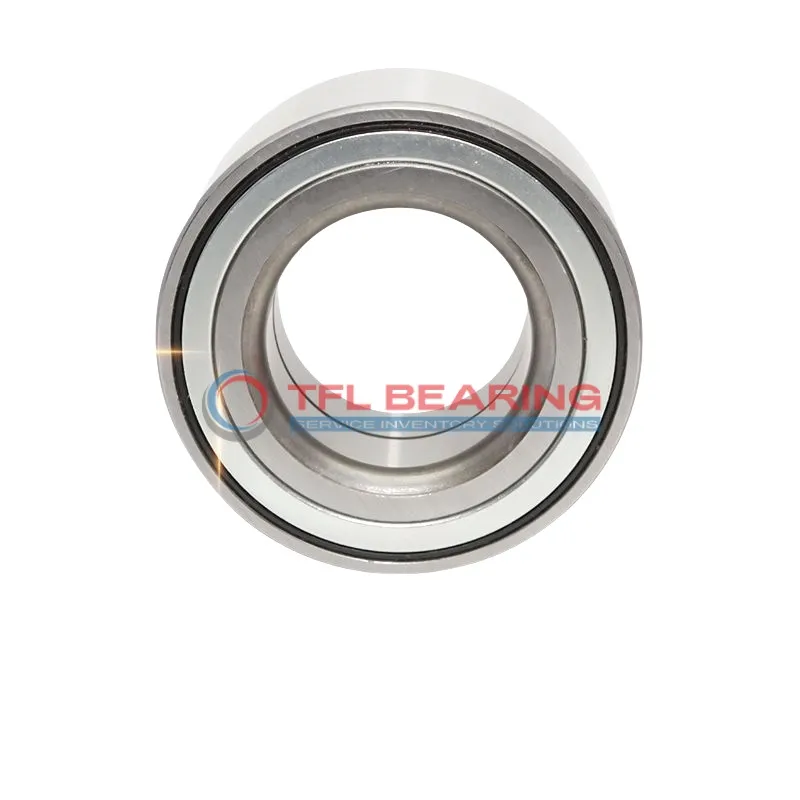

The 3203 A-2ZTN9/MT33 is a double-row angular contact ball bearing with a compact size of 17mm bore and 40mm outer diameter. Made from chrome steel, it offers a good balance of strength and durability.

This bearing handles radial loads up to 3218 lbf and can spin at speeds up to 16,000 RPM. Its shielded design helps keep contaminants out while maintaining smooth operation.

The double-row construction provides better load distribution, making it suitable for applications with combined loads. It works well in temperatures ranging from -30°C to 110°C.

Ideal for use in gearboxes, pumps, or small machinery where space is limited. Compliant with RoHS and REACH standards, it’s a reliable choice for various industrial needs. Weighing just 0.096kg, it’s lightweight yet robust.

Its P6 tolerance class ensures precise performance, while the stainless steel cage adds to its longevity. A practical option for engineers and maintenance teams alike.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3203 A-2ZTN9/MT33
  • Brand TFL & OEM
  • Interchangeable With SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Double Row
  • Seal Type Shielded
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 17.5 mm
  • Width Tolerance -0.05mm to 0
  • Chamfer Dimension 0.6 mm
  • Distance Pressure Point (a) 23 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3218 lbf
  • Static Radial Load 1980 lbf
  • Max Speed 16000 rpm
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Weight 0.096 kg

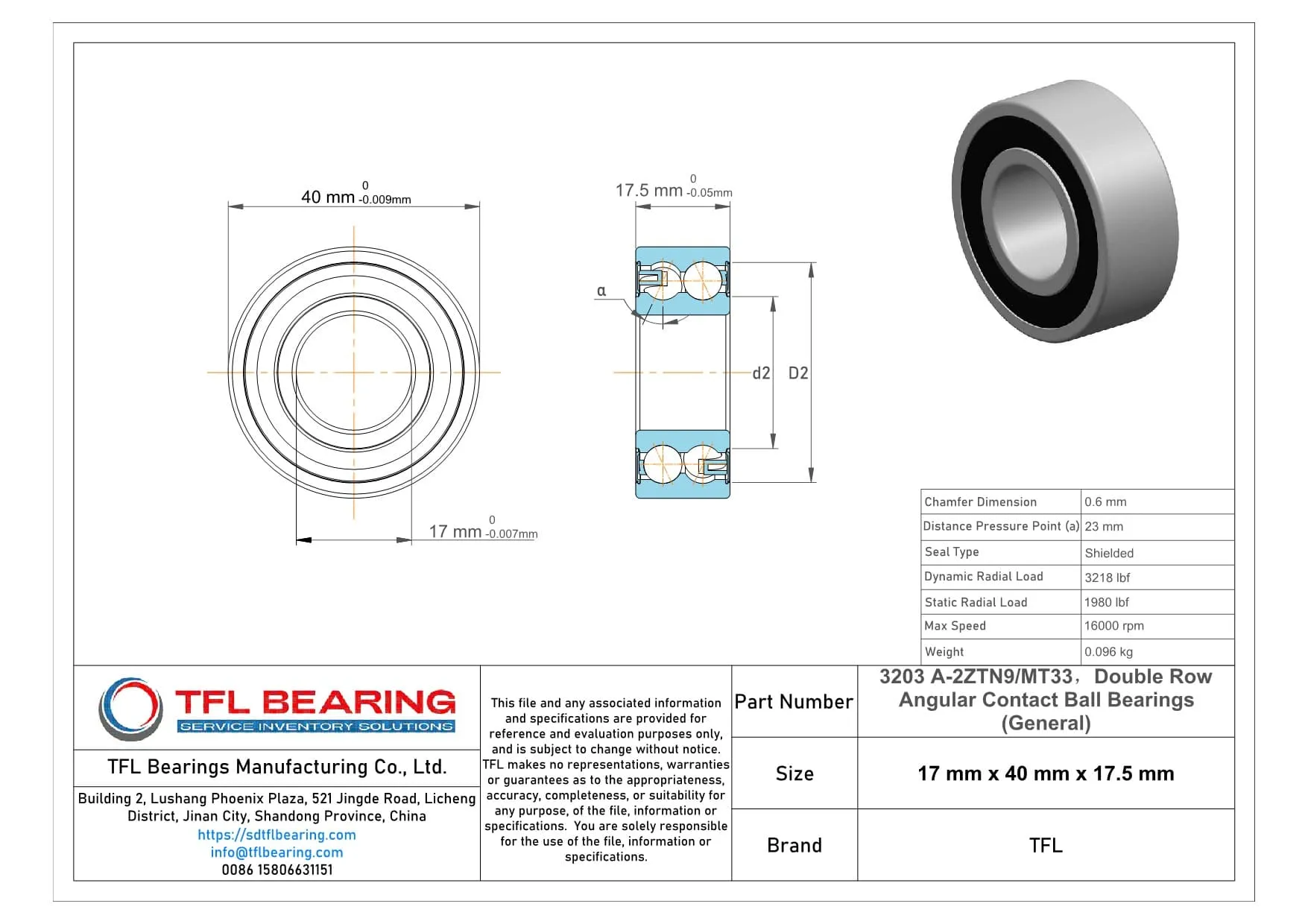

Double Row Angular Contact Ball Bearings (General) 3203 A-2ZTN9/MT33 dimension drawing
Download DWG Download PDF

Features

How Does 3203 A-2ZTN9/MT33 Bearing Reduce Friction?

3203 A-2ZTN9/MT33 Bearing features a double-row angular contact design, ensuring smooth operation under radial loads.
The shielded construction keeps contaminants out, reducing wear and maintaining performance.

With chrome steel rings and balls, 3203 A-2ZTN9/MT33 Bearing offers excellent durability and resistance to friction.
Its stainless steel cage ensures proper ball alignment, further enhancing efficiency.

3203 A-2ZTN9/MT33 Bearing operates at speeds up to 16,000 rpm, making it suitable for high-performance applications.
The P6 tolerance class guarantees precision and reliability in demanding conditions.

Designed for a temperature range of -30° to 110°C, 3203 A-2ZTN9/MT33 Bearing performs well in various environments.
Its lubricated design minimises maintenance needs while ensuring consistent operation.

Application

Common Applications of 3203 A-2ZTN9/MT33 Bearing
3203 A-2ZTN9/MT33 Bearing works well in machine tools, where its double-row design handles combined radial and axial loads efficiently. The shielded seals help keep contaminants out, extending the bearing’s life in dusty workshops.

In automotive applications, 3203 A-2ZTN9/MT33 Bearing fits smoothly into wheel hubs and transmissions, thanks to its precise P6 tolerance. The chrome steel construction ensures it can handle the demands of daily driving without issues.

For automation systems, 3203 A-2ZTN9/MT33 Bearing offers reliable performance in robotic arms and conveyor belts. Its lubricated design reduces friction, making it a solid choice for continuous operation.

Around the house, 3203 A-2ZTN9/MT33 Bearing can be found in appliances like washing machines, where durability matters. The stainless steel cage prevents rust, even in damp environments.
