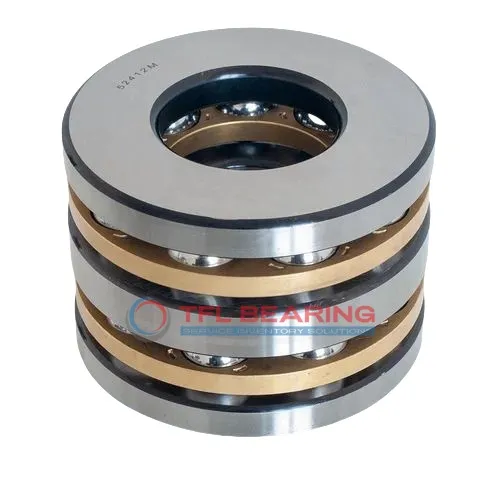

Double Direction Thrust Ball Bearings 54416 M

Brand: TFL Bearing Interchangeable: SKF 54416 M 65 mm × 170 mm × 128.5 mm Metric Open
Part number: 54416 M
Double Direction Thrust Ball Bearings 54416 M
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.025mm to 0
Width128.5 mm
Width Tolerance+0.15mm to -0.5mm
Chamfer Dimension Housing Washer2.1 mm
Chamfer Dimension Shaft Washer1 mm
Inner Dia Housing Washer83 mm
Performance
Dynamic Thrust Load69,075 lbf
Static Thrust Load168,750 lbf
Temperature Range-30° to 110 °C
Max Speed1,200 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionThrust
Seal TypeOpen
Weight17.5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant

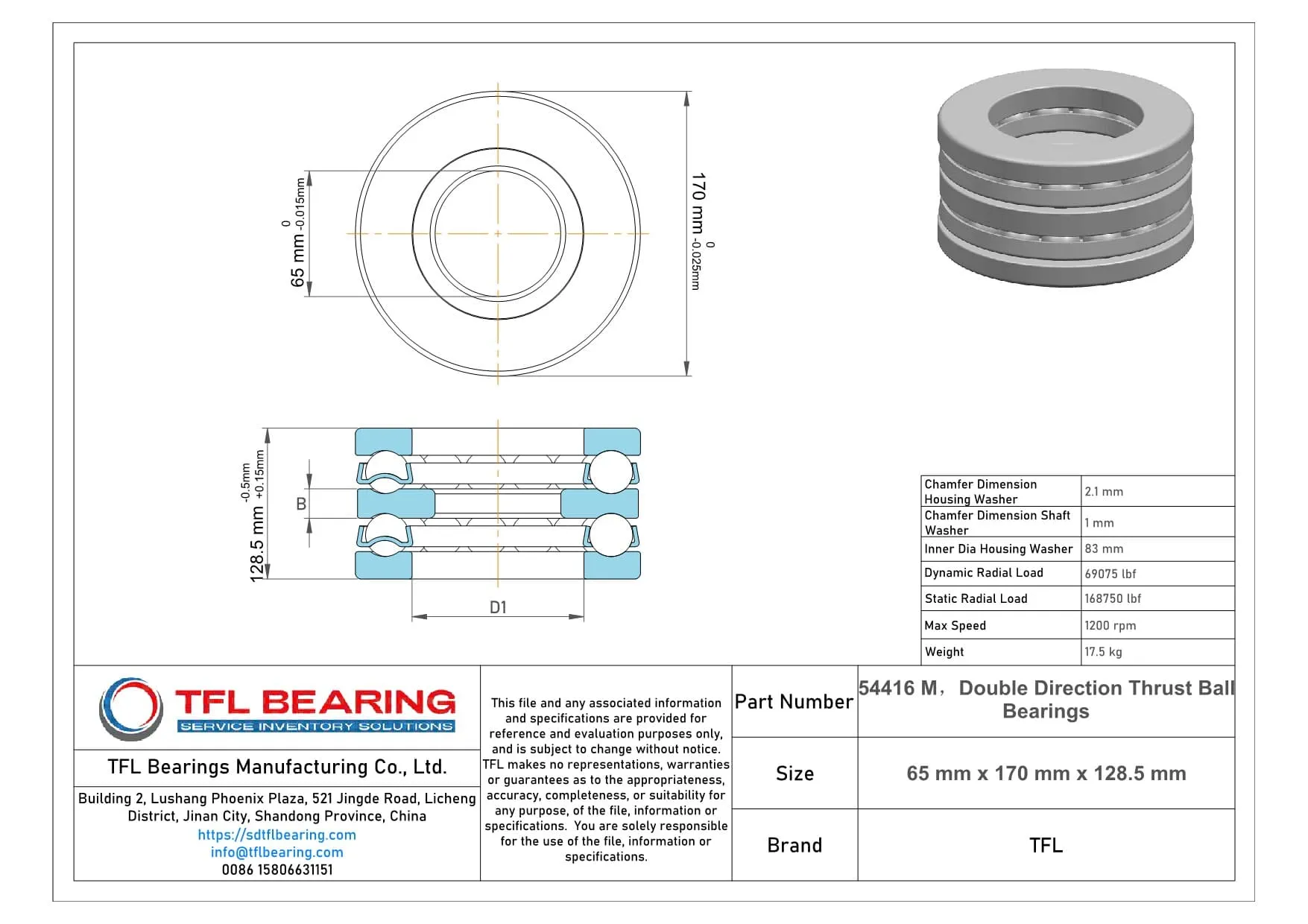

Dimension drawing · click to enlarge

Description

The 54416 M is a double-direction thrust ball bearing with a 65mm bore and 170mm outer diameter, built from sturdy chrome steel for heavy-duty use. It manages thrust loads up to 69075 lbf and operates at speeds up to 1200 RPM.

Its open design simplifies maintenance, while the brass cage enhances durability and reduces friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy machinery or industrial equipment where high thrust loads are expected.

Weighing 17.5kg, it’s robust and built to last. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Does 54416 M Bearing Handle Heavy Loads?

54416 M Bearing is built with chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 69075 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth ball alignment, reducing friction and enhancing durability.
With a maximum speed of 1,200 rpm, it delivers reliable performance under demanding conditions.

54416 M Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open seal design allows for easy maintenance, reducing long-term operational costs.

Application

Industrial Uses of 54416 M Bearing
54416 M Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity handles demanding axial forces. The brass cage offers smooth operation even under substantial stress.

Where Is 54416 M Bearing Used?
In wind turbines, 54416 M Bearing supports the rotor shaft, ensuring reliable performance in variable weather conditions. Its chrome steel construction provides long-lasting durability for continuous operation.

Built for Heavy-Duty Use: 54416 M Bearing
This bearing excels in mining equipment, where its robust design withstands extreme loads and harsh environments. The open seal type allows for easy lubrication, reducing maintenance downtime.

Automotive vs Aerospace: Applications of 54416 M Bearing
In automotive applications, 54416 M Bearing is found in heavy trucks’ transmission systems, while in aerospace, it aids in landing gear mechanisms. Its metric sizing ensures compatibility across industries.

Practical Applications of 54416 M Bearing
For industrial pumps, 54416 M Bearing ensures efficient fluid handling with its high static thrust load rating. The temperature range makes it suitable for both hot and cold operating conditions.
