Double Direction Thrust Ball Bearings 54310

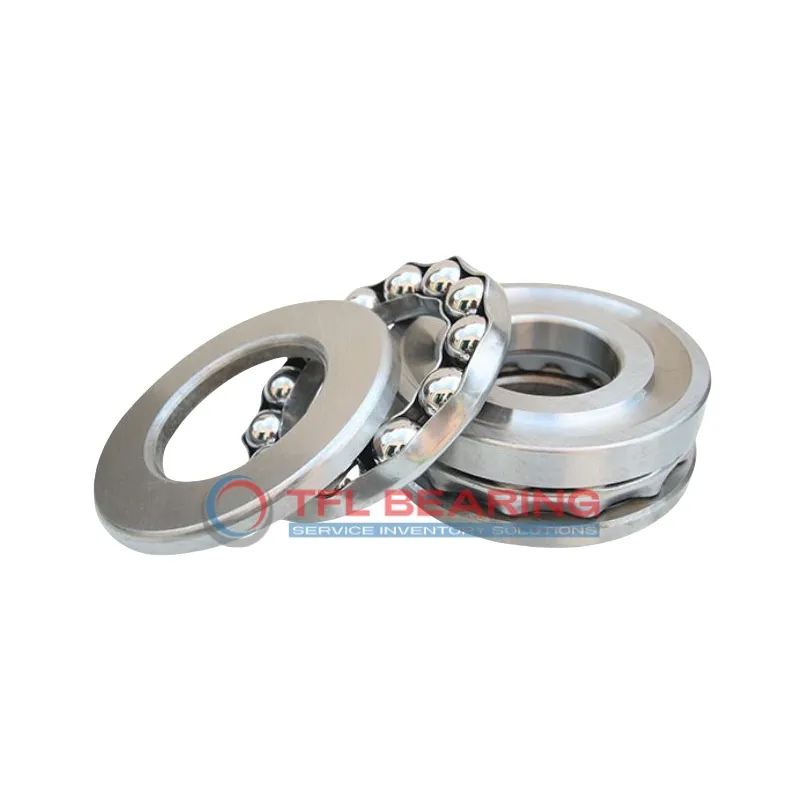

Double Direction Thrust Ball Bearings 54310

The 54310 is a double-direction thrust ball bearing measuring 40mm by 95mm by 64.7mm, crafted from sturdy chrome steel for durability. It supports heavy thrust loads up to 18428 lbf and operates at speeds up to 2400 RPM.

Its open seal design simplifies maintenance, while the stainless steel cage enhances longevity. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It suits heavy-duty applications like industrial presses or large gear systems where high thrust loads are present.

Weighing 2.3kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 54310
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 64.7 mm
  • Width Tolerance +0.15mm to -0.4mm
  • Chamfer Dimension Housing Washer 1.1 mm
  • Chamfer Dimension Shaft Washer 0.6 mm
  • Inner Dia Housing Washer 52 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 18428 lbf
  • Static Thrust Load 38250 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2400 rpm
  • Weight 2.3 kg

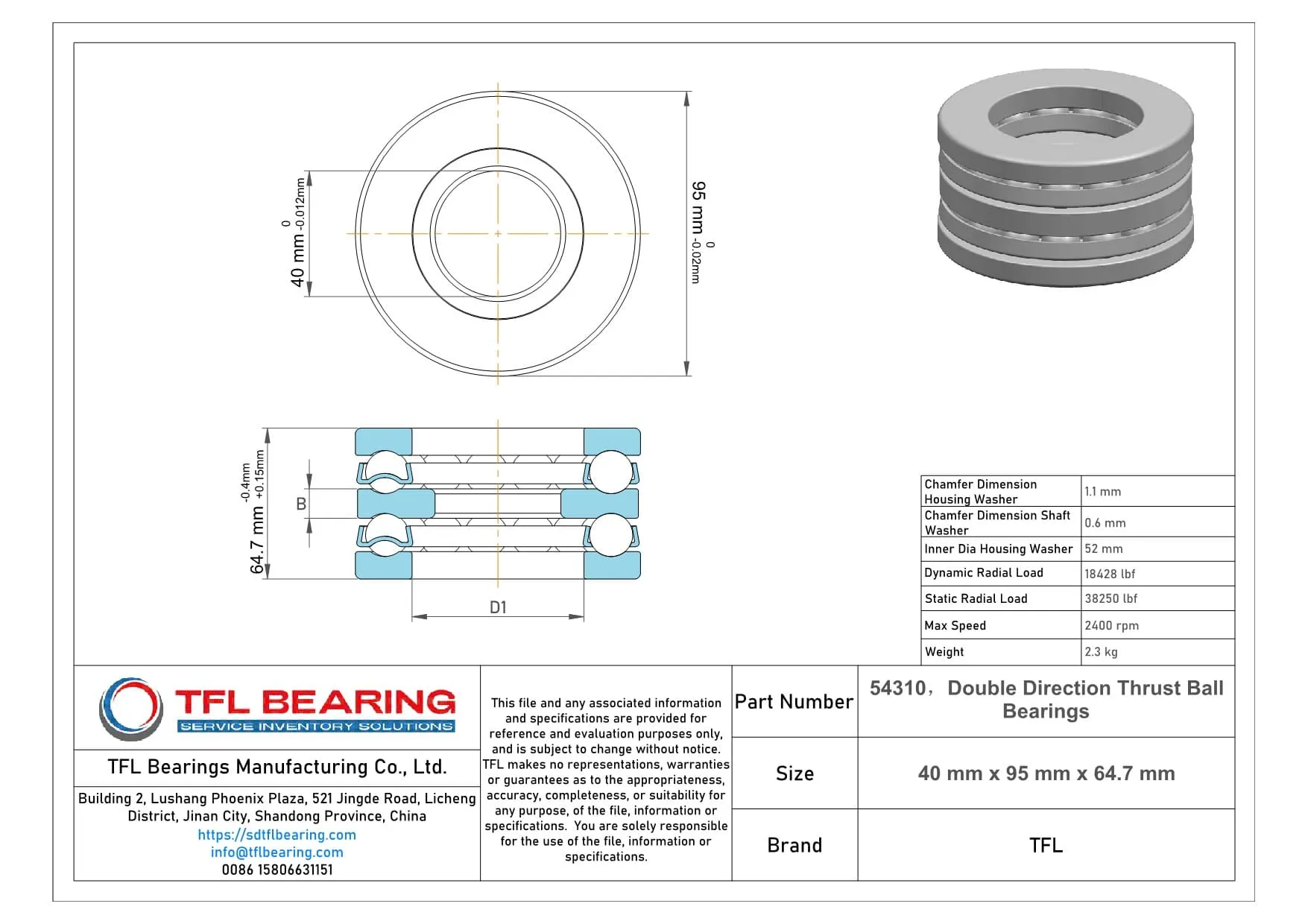

Double Direction Thrust Ball Bearings 54310 dimension drawing
Download DWG Download PDF

Features

Why Choose 54310 Bearing for Precision Tasks?

54310 Bearing is built with chrome steel rings and balls, offering high precision in thrust applications.
Its dynamic thrust load capacity of 18428 lbf ensures reliable performance under heavy loads.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 2,400 rpm, it delivers consistent performance in demanding conditions.

54310 Bearing operates smoothly in temperatures from -30° to 110°C, suitable for various environments.
Its open seal design allows for easy maintenance and longer service life.

Application

Industrial Uses of 54310 Bearing
54310 Bearing is commonly used in heavy machinery like hydraulic presses and large conveyor systems, where its high thrust load capacity handles demanding axial forces. The open seal design simplifies lubrication, extending service life in dusty industrial environments.

Where Is 54310 Bearing Used?
In automotive applications, 54310 Bearing fits well in truck transmissions and heavy-duty clutch systems, thanks to its robust chrome steel construction. The metric dimensions ensure compatibility with global vehicle standards.

Built for Heavy-Duty Use: 54310 Bearing
For wind turbine pitch control systems, 54310 Bearing provides reliable performance under variable loads and outdoor conditions. Its stainless steel cage resists corrosion, making it suitable for long-term use in harsh weather.

Medical vs Industrial: Where 54310 Bearing Excels
While 54310 Bearing isn’t typically used in medical devices, it shines in industrial settings like steel rolling mills, where its static load rating supports massive equipment. The temperature range also allows stable operation in heated processes.

Automotive vs Aerospace: Applications of 54310 Bearing
54310 Bearing is more suited for heavy vehicles than aerospace due to its weight, but it excels in earthmoving equipment axles. The dynamic load rating ensures smooth operation even under uneven stress distribution.
