Double Direction Thrust Ball Bearings 52412 M

Brand: TFL Bearing Interchangeable: SKF 52412 M 50 mm × 130 mm × 93 mm Metric Open
Part number: 52412 M

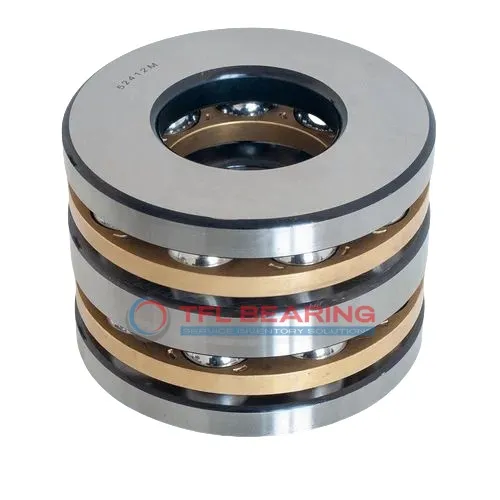

Double Direction Thrust Ball Bearings 52412 M
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.025mm to 0
Width93 mm
Width Tolerance+0.15mm to -0.4mm
Chamfer Dimension Housing Washer1.5 mm
Chamfer Dimension Shaft Washer0.6 mm
Inner Dia Housing Washer62 mm
Performance
Dynamic Thrust Load44,775 lbf
Static Thrust Load96,750 lbf
Temperature Range-30° to 110 °C
Max Speed1,700 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionThrust
Seal TypeOpen
Weight6.35 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant

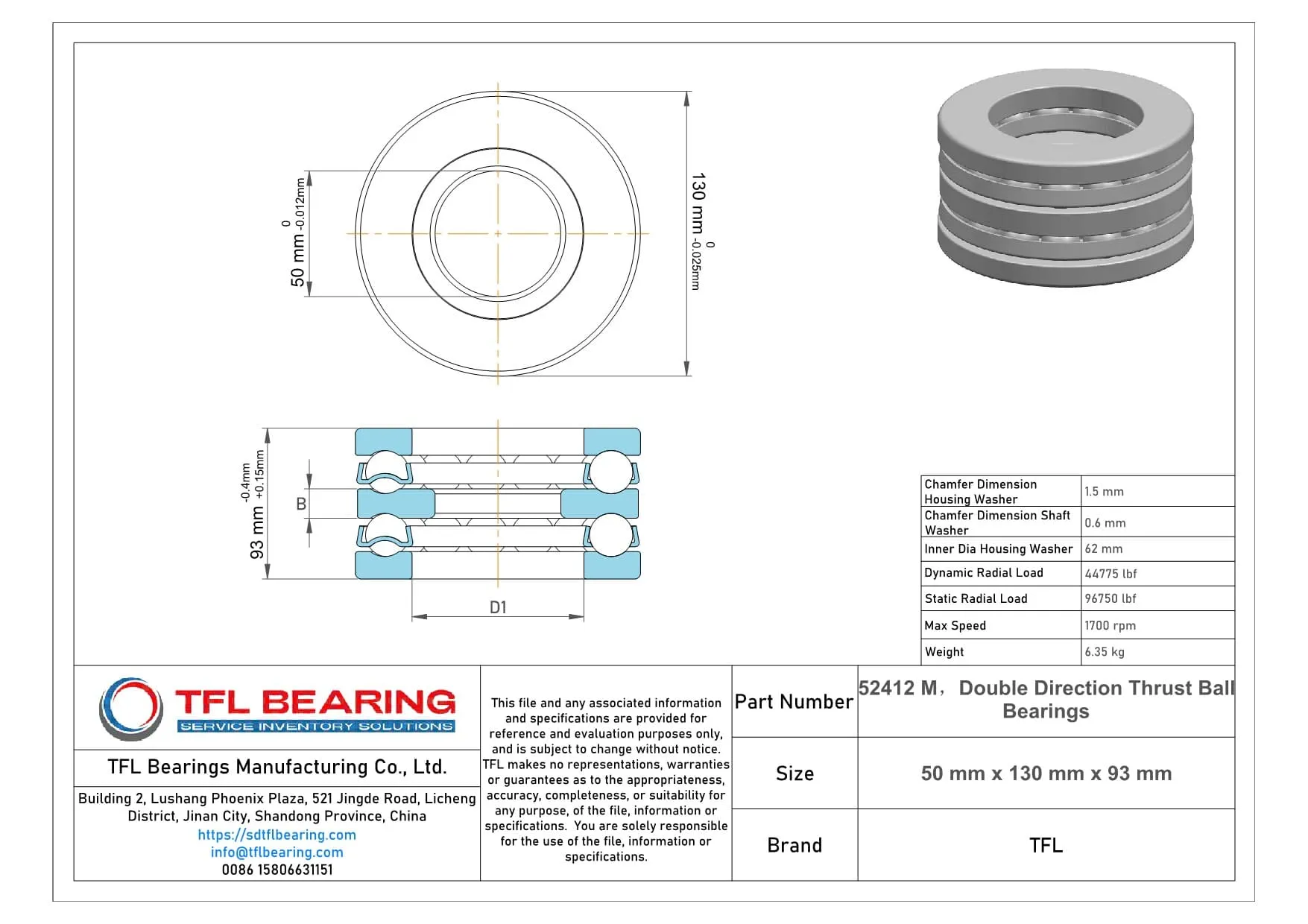

Dimension drawing · click to enlarge

Description

The 52412 M is a double-direction thrust ball bearing with a 50mm bore and 130mm outer diameter, built from sturdy chrome steel. It manages heavy thrust loads up to 44775 lbf and operates at speeds up to 1700 RPM.

Its open design simplifies maintenance, while the brass cage enhances durability and reduces friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large gear systems where high thrust loads are expected.

Weighing 6.35kg, it’s a robust unit designed for long-term use. Compliant with RoHS and REACH standards for environmental safety.

Features

Performance Features of 52412 M Bearing

52412 M Bearing is built with chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 44775 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth ball alignment, reducing friction and enhancing durability.
With a maximum speed of 1,700 rpm, it delivers reliable performance under demanding conditions.

52412 M Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design simplifies maintenance, ensuring long-term reliability.

Application

Key Fields for 52412 M Bearing
52412 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The brass cage helps reduce friction, making it suitable for continuous operation.

Where Is 52412 M Bearing Used?
In automotive applications, 52412 M Bearing can be found in heavy-duty gearboxes and drivetrains, handling significant axial loads with ease. Its chrome steel construction ensures durability even under demanding conditions.

Built for Heavy-Duty Use: 52412 M Bearing
52412 M Bearing is ideal for industrial fans and blowers, where its open design allows for efficient cooling and maintenance. The metric dimensions ensure compatibility with a wide range of equipment.

Automotive vs Aerospace: Applications of 52412 M Bearing
52412 M Bearing is versatile enough for both automotive drivetrains and aerospace landing gear systems. Its high static thrust load capacity makes it reliable in critical, high-stress environments.

Practical Applications of 52412 M Bearing
52412 M Bearing is often chosen for large pumps and compressors, where its ability to handle dynamic thrust loads is crucial. The temperature range also makes it suitable for varied operating conditions.
