Double Direction Thrust Ball Bearings 52202

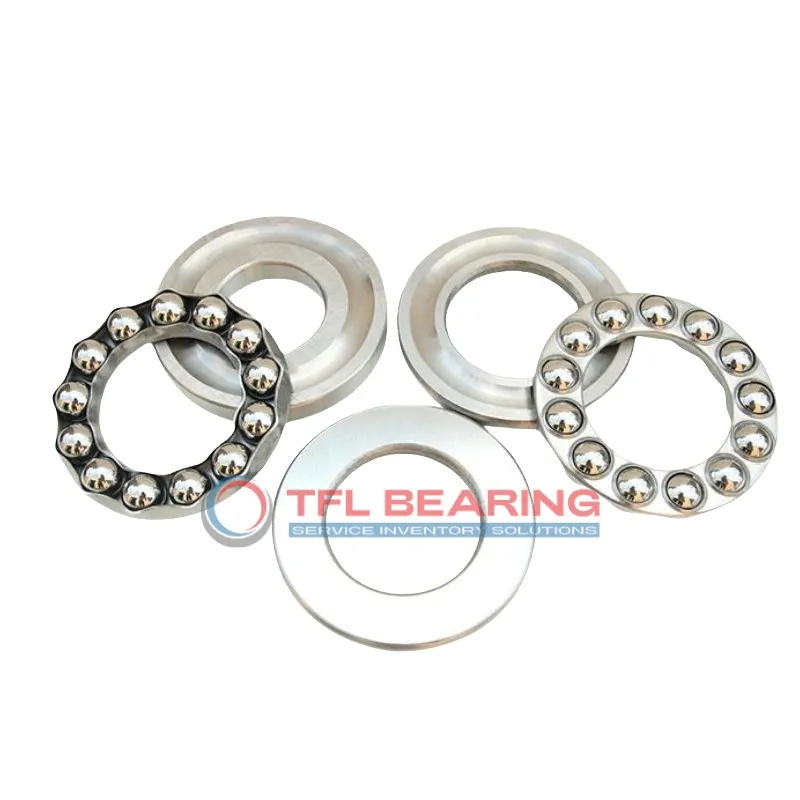

Double Direction Thrust Ball Bearings 52202

The 52202 is a compact double-direction thrust ball bearing, measuring 10mm in bore and 32mm in outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 3578 lbf and operates smoothly at speeds reaching 7500 RPM.

Its open seal design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It suits applications like small gearboxes or machinery where space is limited but thrust load handling is essential.

Weighing only 0.081kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 52202
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 22 mm
  • Width Tolerance +0.15mm to -0.4mm
  • Chamfer Dimension Housing Washer 0.6 mm
  • Chamfer Dimension Shaft Washer 0.3 mm
  • Inner Dia Housing Washer 17 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 3578 lbf
  • Static Thrust Load 5625 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.081 kg

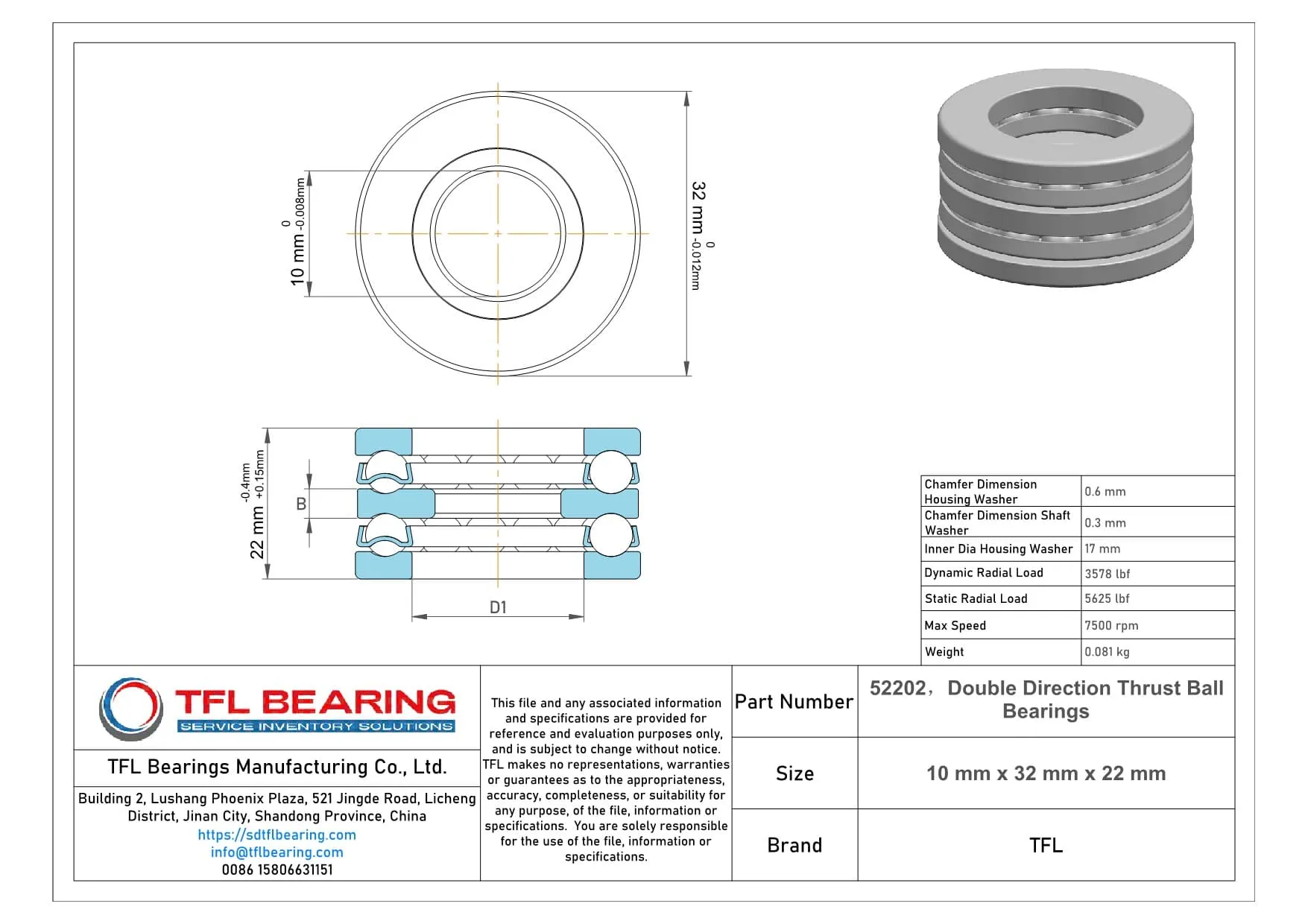

Double Direction Thrust Ball Bearings 52202 dimension drawing
Download DWG Download PDF

Features

Why Choose 52202 Bearing for Precision Tasks?

52202 Bearing features chrome steel rings and balls, ensuring precise movement under thrust loads.
Its stainless steel cage maintains ball alignment, enhancing accuracy in high-speed applications.

With a dynamic thrust load capacity of 3578 lbf, it handles demanding tasks without compromising performance.
The open seal design allows for easy inspection and maintenance, reducing downtime.

Operating smoothly from -30° to 110°C, 52202 Bearing adapts to various environmental conditions.
Its compact size (10mm x 32mm x 22mm) makes it ideal for space-constrained installations.

Application

Common Applications of 52202 Bearing
52202 Bearing works well in machine tools, where its double-direction thrust capacity handles axial loads smoothly. The open seal design makes it easy to clean and maintain in dusty workshops.

You’ll often spot 52202 Bearing in conveyor systems, keeping things moving without fuss. Its chrome steel construction holds up nicely under constant use, even in busy factories.

For automotive gearboxes, 52202 Bearing provides reliable thrust support without adding unnecessary bulk. The metric sizing fits neatly into compact European and Asian vehicle designs.

In medical imaging devices, 52202 Bearing’s stainless steel cage helps maintain precision during repeated scans. It’s a sensible choice for equipment needing quiet, consistent performance.

Home printers sometimes use 52202 Bearing in their paper feed mechanisms. The balanced load handling prevents jams while keeping operation pleasantly quiet.
