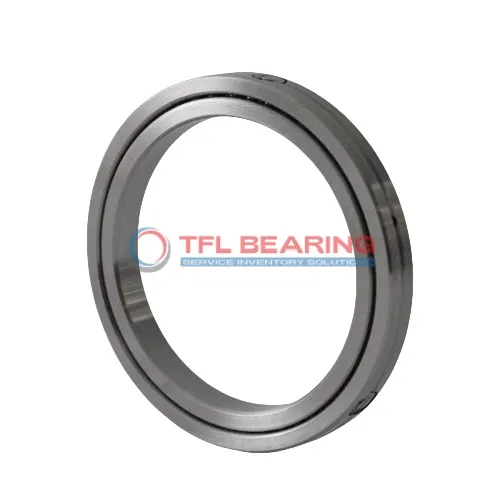

CRBS Crossed Roller Bearings CRBS808V

CRBS Crossed Roller Bearings CRBS808V

The CRBS808V is a compact crossed roller bearing, measuring 80mm in bore, 96mm in outer diameter, and just 8mm wide. Made from sturdy steel, it handles combined loads with ease, offering a basic load rating of 8.79 kN.

Its single-row design and open seal make it simple to lubricate and maintain. The bearing operates smoothly in temperatures ranging from 0°C to 110°C, suitable for various industrial conditions.

With a press-fit shaft mount, it stays securely in place during operation. This model is interchangeable with IKO bearings, providing a reliable alternative for replacements.

Ideal for precision applications like robotics or medical equipment, where space and accuracy are key. Compliant with RoHS and REACH standards, it’s both durable and safe for use. Weighing only 0.122kg, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBS808V
  • Brand TFL
  • Interchangeable Brand IKO
  • Size 80 mm x 96 mm x 8 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 80 mm
  • Outer Dia 96 mm
  • Width 8 mm
  • R(min) 0.4 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 84 mm
  • Mounting Dimensions(Da) 91 mm
  • Basic Load Rating C 8.790 kN
  • Basic Load Rating Co 15.500 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.122 Kg

Features

Performance Features of CRBS808V Bearing

CRBS808V Bearing is designed with a single-row crossed roller arrangement, offering high precision and stability.
Its steel rings and rollers provide excellent load capacity, handling both radial and axial forces efficiently.

The open design allows for easy lubrication, ensuring smooth operation in various conditions.
With a basic load rating of 8.790 kN, it performs reliably in demanding applications.

CRBS808V Bearing operates within a temperature range of 0 to 230°F, suitable for diverse environments.
Its press-fit shaft mounting simplifies installation, reducing setup time and effort.

The ABEC5 rating ensures consistent performance, with options for higher precision (ABEC7/9) available.
Weighing just 0.122 kg, it balances strength and lightweight design for versatile use.

Application

Industrial Uses of CRBS808V Bearing
CRBS808V Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

What Makes CRBS808V Bearing a Preferred Choice?
In robotics, CRBS808V Bearing supports articulated arms, offering smooth rotation and high load capacity. Its compact 8mm width fits neatly into tight spaces without sacrificing performance.

Built for Heavy-Duty Use: CRBS808V Bearing
For conveyor systems, CRBS808V Bearing handles combined loads effortlessly, making it ideal for material handling equipment. The steel construction ensures durability even in high-temperature environments.

Automotive vs Aerospace: Applications of CRBS808V Bearing
In automotive steering systems, CRBS808V Bearing ensures precise control, while in aerospace, it supports instrumentation with reliable accuracy. The ABEC5 rating guarantees consistent performance across both fields.

Perfect Fit for Automation: CRBS808V Bearing
CRBS808V Bearing works seamlessly in 3D printers, providing stable movement for print heads. Its press-fit mounting simplifies installation, reducing downtime in production lines.
