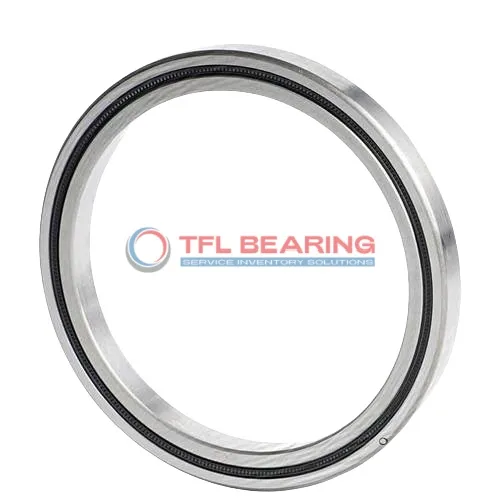

CRBS Crossed Roller Bearings CRBS808AUU

CRBS Crossed Roller Bearings CRBS808AUU

The CRBS808AUU is a compact crossed roller bearing, measuring 80mm in bore diameter and 96mm in outer diameter, with a slim 8mm width. Made from sturdy steel, it handles combined loads efficiently, with a basic load rating of 6.13 kN.

Its double-seal design keeps contaminants out and lubrication in, ensuring smooth operation. The bearing is press-fit mounted, making installation straightforward for tight spaces.

With a temperature range of 0°C to 110°C, it suits various industrial environments. Compliant with RoHS and REACH standards, it’s a reliable choice for precision applications like robotics or medical equipment.

Weighing just 0.122kg, it offers high performance without adding bulk. Interchangeable with IKO bearings, it’s a versatile option for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBS808AUU
  • Brand TFL
  • Interchangeable Brand IKO
  • Size 80 mm x 96 mm x 8 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 80 mm
  • Outer Dia 96 mm
  • Width 8 mm
  • R(min) 0.4 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 84 mm
  • Mounting Dimensions(Da) 91 mm
  • Basic Load Rating C 6.130 kN
  • Basic Load Rating Co 9.590 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.122 Kg

Features

How Is CRBS808AUU Bearing Engineered for Reliability?

CRBS808AUU Bearing features a crossed roller design, providing high precision and stability for combined load applications.
The double seal construction protects against contaminants, ensuring smooth operation in various environments.

Made from durable steel, CRBS808AUU Bearing offers a basic load rating of 6.130 kN, suitable for demanding tasks.
Its press-fit shaft mounting simplifies installation while maintaining secure positioning.

With a temperature range of 0-230°F, CRBS808AUU Bearing performs reliably in both moderate and high-heat conditions.
The ABEC5 rating ensures consistent accuracy, with options for higher precision upon request.

CRBS808AUU Bearing’s compact 8mm width makes it ideal for space-constrained applications.
The required lubrication ensures long-term performance with minimal maintenance.

Application

Industrial Uses of CRBS808AUU Bearing
CRBS808AUU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, ensuring long service life in demanding environments.

How Does CRBS808AUU Bearing Improve Performance?
In robotics, CRBS808AUU Bearing enhances accuracy in articulated arms due to its low friction and high load capacity. The press-fit mounting simplifies installation, making it a favourite for automated systems.

Built for Heavy-Duty Use: CRBS808AUU Bearing
This bearing handles combined loads effortlessly, making it ideal for medical imaging equipment where stability is key. Its steel construction ensures reliability even in continuous operation.

Automotive vs Aerospace: Applications of CRBS808AUU Bearing
In automotive steering systems, CRBS808AUU Bearing offers smooth rotation under heavy loads. For aerospace applications, its ABEC5 precision meets the stringent requirements of flight control mechanisms.

Perfect Fit for Automation: CRBS808AUU Bearing
CRBS808AUU Bearing works well in 3D printers, providing the necessary precision for detailed prints. The compact width allows for space-saving designs without compromising performance.
