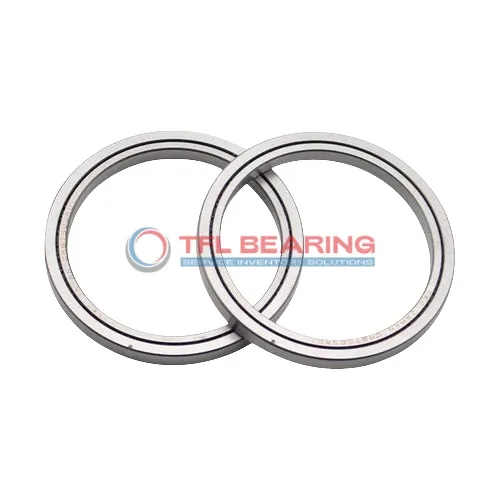

CRBS Crossed Roller Bearings CRBS18013AUU

The CRBS18013AUU is a crossed roller bearing with a compact design, measuring 180mm in bore diameter and 206mm in outer diameter. Its 13mm width makes it suitable for space-constrained applications.

Built from sturdy steel, it handles combined loads up to 45.7kN and operates smoothly in temperatures from 0°C to 110°C. The double-seal design keeps contaminants out while retaining lubrication.

This bearing features a press-fit mounting style for secure installation, with ABEC5 precision (also available in higher grades). It’s interchangeable with IKO models for easy replacement.

Ideal for rotary tables or robotic arms where precision and load capacity matter. Compliant with RoHS and REACH standards, it weighs just 0.71kg for easy handling.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number CRBS18013AUU
Brand TFL
Interchangeable Brand IKO
Size 180 mm x 206 mm x 13 mm
System of Measurement Metric
Roller Bearing Type Crossed
Bearing Type Roller
For Load Direction Combined
Construction Single Row
Seal Type Double Seal
Bore Dia 180 mm
Outer Dia 206 mm
Width 13 mm
R(min) 0.6 mm
Holes Without Holes
Ring Material Steel
Roller Material Steel
Mounting Dimensions(da) 186 mm
Mounting Dimensions(Da) 199 mm
Basic Load Rating C 45.700 kN
Basic Load Rating Co 28.600 kN
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230 °F
ABEC Rating ABEC5(Available in ABEC7/9)
RoHS Compliant
REACH Compliant
Weight 0.71 Kg

Features

Performance Features of CRBS18013AUU Bearing

CRBS18013AUU Bearing is designed for combined load applications, offering reliable performance with its single-row crossed roller construction.
The double seal design protects against contaminants, ensuring smooth operation in various environments.

With a basic load rating of 45.700 kN, CRBS18013AUU Bearing handles heavy loads efficiently.
Its steel rings and rollers provide durability, while the press-fit shaft mounting simplifies installation.

CRBS18013AUU Bearing operates in temperatures from 0 to 230°F, making it suitable for diverse conditions.
The ABEC5 precision rating ensures consistent performance, with options for higher precision (ABEC7/9) available.

Maintenance is straightforward, as CRBS18013AUU Bearing requires standard lubrication.
Its compact design (13 mm width) saves space without compromising strength.

Application

Common Applications of CRBS18013AUU Bearing
CRBS18013AUU Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its crossed roller design ensures smooth rotational movement. The double seal feature helps keep contaminants out, extending the bearing’s lifespan in demanding environments.

In medical imaging equipment, CRBS18013AUU Bearing provides stable support for rotating components, thanks to its high load capacity and precision. The steel construction ensures durability even in continuous operation scenarios.

For automotive applications, CRBS18013AUU Bearing is often found in steering systems and electric vehicle components, where its combined load handling capability is essential. The press-fit mounting simplifies installation in tight spaces.

CRBS18013AUU Bearing also works well in 3D printers, offering precise motion control for the print head. Its compact width makes it suitable for space-constrained designs without compromising performance.
