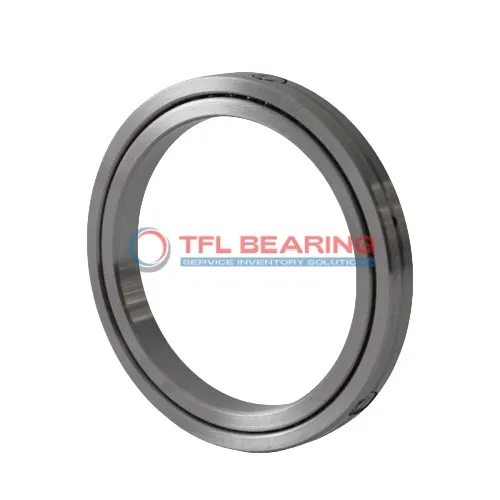

CRBS Crossed Roller Bearings CRBS1308AUU

CRBS Crossed Roller Bearings CRBS1308AUU

The CRBS1308AUU is a crossed roller bearing with a compact design, measuring 130mm in bore diameter and 146mm in outer diameter, with a slim width of just 8mm. Made from sturdy steel, it handles combined loads efficiently, with a basic load rating of 13.8 kN.

Its double-seal design keeps contaminants out while retaining lubrication, ensuring smooth operation. The press-fit mounting makes installation straightforward, and it performs well in temperatures from 0°C to 110°C.

This bearing is interchangeable with IKO models, offering flexibility for replacements. Ideal for precision applications like robotics or medical equipment where space is limited but performance is key.

Weighing only 0.199kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it meets strict environmental and safety requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBS1308AUU
  • Brand TFL
  • Interchangeable Brand IKO
  • Size 130 mm x 146 mm x 8 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 130 mm
  • Outer Dia 146 mm
  • Width 8 mm
  • R(min) 0.4 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 134 mm
  • Mounting Dimensions(Da) 141 mm
  • Basic Load Rating C 13.800 kN
  • Basic Load Rating Co 11.200 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.199 Kg

Features

How Is CRBS1308AUU Bearing Engineered for Reliability?

CRBS1308AUU Bearing features a crossed roller design, providing high precision and stability under combined loads.
Its steel rings and rollers ensure durability, while the double seal protects against contaminants.

The bearing offers a basic load rating of 13.800 kN, making it suitable for demanding applications.
With a temperature range of 0-230°F, CRBS1308AUU Bearing performs reliably in varying conditions.

Its press-fit shaft mounting simplifies installation, reducing setup time.
The ABEC5 rating ensures consistent performance, with options for higher precision grades.

Application

Key Fields for CRBS1308AUU Bearing
CRBS1308AUU Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its crossed roller design ensures smooth rotational movement. The double seal helps keep contaminants out, extending its lifespan in demanding environments.

In medical imaging devices, CRBS1308AUU Bearing provides stable support for rotating components, thanks to its high load capacity and ABEC5 precision. The steel construction ensures durability even in sterilised conditions.

For semiconductor manufacturing equipment, CRBS1308AUU Bearing’s compact design and press-fit mounting make it ideal for space-constrained applications. Its ability to handle combined loads simplifies assembly in complex systems.

Automotive testing rigs often rely on CRBS1308AUU Bearing for accurate motion control during performance evaluations. The temperature resistance up to 230°F ensures reliability under continuous use.
