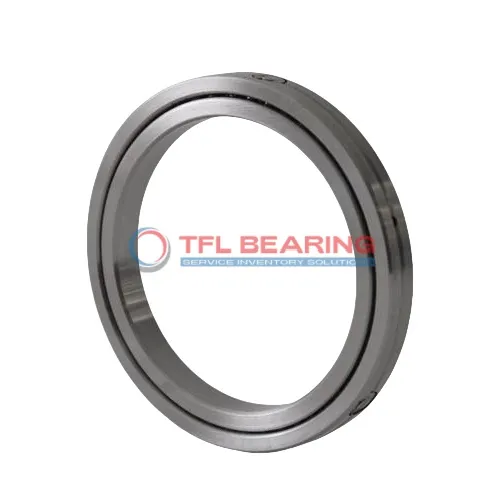

CRBS Crossed Roller Bearings CRBS1308

CRBS Crossed Roller Bearings CRBS1308

The CRBS1308 is a compact crossed roller bearing measuring 130mm in bore diameter and 146mm in outer diameter, with a slim 8mm width. Made from sturdy steel, it handles combined loads efficiently, with a basic load rating of 7.86 kN.

Its single-row design and open seal make it easy to lubricate, while the press-fit mounting ensures a secure installation. The bearing operates smoothly in temperatures ranging from 0°C to 110°C.

With an ABEC5 rating (also available in higher precision ABEC7/9), it offers reliable performance for precision applications. Its lightweight design, at just 0.0199kg, doesn’t compromise durability.

Ideal for rotary tables or robotic arms, this bearing is interchangeable with IKO models, making it a versatile choice for industrial and automation needs. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBS1308
  • Brand TFL
  • Interchangeable Brand IKO
  • Size 130 mm x 146 mm x 8 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 130 mm
  • Outer Dia 146 mm
  • Width 8 mm
  • R(min) 0.4 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 134 mm
  • Mounting Dimensions(Da) 141 mm
  • Basic Load Rating C 7.860 kN
  • Basic Load Rating Co 15.300 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0199 Kg

Features

Performance Features of CRBS1308 Bearing

CRBS1308 Bearing is designed for combined load applications, offering a balanced performance in various conditions.
Its crossed roller design ensures high precision and stability, making it suitable for demanding tasks.

The steel construction of CRBS1308 Bearing provides durability and resistance to wear.
With a basic load rating of 7.860 kN, it handles significant loads while maintaining efficiency.

CRBS1308 Bearing operates within a temperature range of 0-230°F, adapting to different environments.
Its press-fit shaft mounting simplifies installation, saving time and effort.

The open seal type of CRBS1308 Bearing allows for easy lubrication, ensuring smooth operation.
Weighing just 0.0199 kg, it is lightweight yet robust for its size.

Application

Industrial Uses of CRBS1308 Bearing
CRBS1308 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The steel construction ensures durability in high-load industrial environments.

Where Is CRBS1308 Bearing Used?
You’ll often find CRBS1308 Bearing in robotics, particularly in articulated arms that require smooth, precise movement. Its compact width makes it ideal for space-constrained applications.

Built for Heavy-Duty Use: CRBS1308 Bearing
CRBS1308 Bearing handles combined loads effortlessly, making it suitable for medical imaging equipment like CT scanners. The press-fit mounting ensures secure installation in critical applications.

Automotive vs Aerospace: Applications of CRBS1308 Bearing
In automotive systems, CRBS1308 Bearing supports steering mechanisms, while in aerospace, it’s used in flight control systems. The ABEC5 rating guarantees consistent performance in both fields.

Perfect Fit for Automation: CRBS1308 Bearing
CRBS1308 Bearing shines in automated production lines, where its low friction reduces energy consumption. The open design allows for easy lubrication, extending service life in continuous operation.
