CRBS Crossed Roller Bearings CRBS 1508 V UU

CRBS Crossed Roller Bearings CRBS 1508 V UU

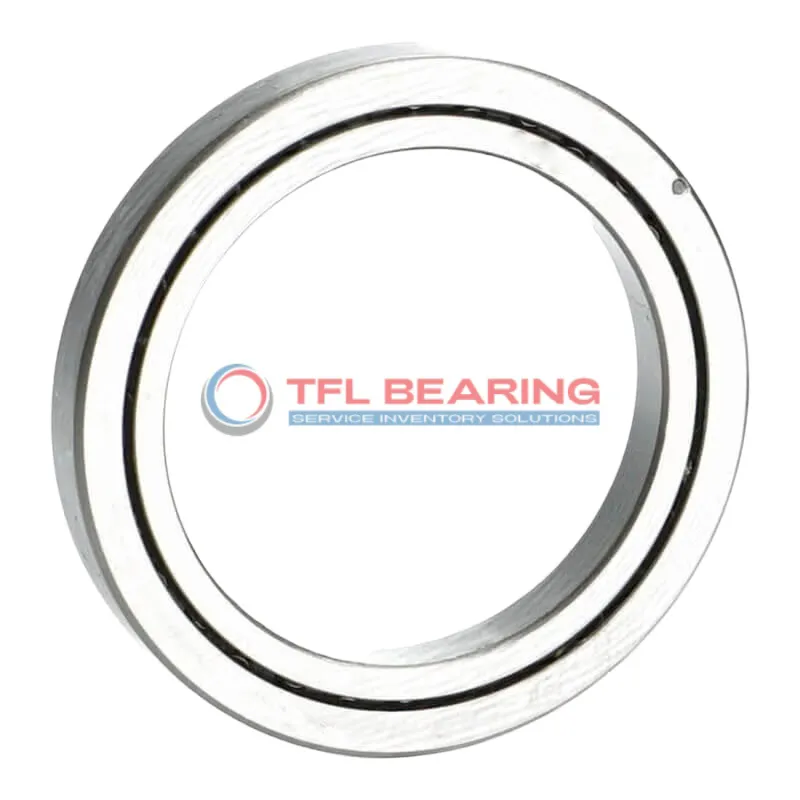

The CRBS 1508 V UU is a compact crossed roller bearing with a 150mm bore and 166mm outer diameter, crafted from sturdy steel for reliable performance. It handles combined loads up to 12.1 kN and operates smoothly in temperatures from 0°C to 110°C.

Its double-seal design keeps contaminants out while retaining lubrication, making it low-maintenance. The press-fit mounting ensures a secure fit, ideal for precision applications.

With an ABEC5 rating (upgradable to ABEC7/9), it offers excellent accuracy for rotary tables or medical equipment. Weighing just 0.22kg, it’s lightweight yet robust.

Compliant with RoHS and REACH standards, this bearing is interchangeable with IKO models, simplifying replacements in industrial or automation settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBS 1508 V UU
  • Brand TFL
  • Interchangeable Brand IKO
  • Size 150 mm x 166 mm x 8 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 150 mm
  • Outer Dia 166 mm
  • Width 8 mm
  • R(min) 0.4 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 154 mm
  • Mounting Dimensions(Da) 161 mm
  • Basic Load Rating C 12.100 kN
  • Basic Load Rating Co 28.700 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.22 Kg

Features

How Does CRBS 1508 V UU Bearing Handle Combined Loads?

CRBS 1508 V UU Bearing is designed with a single-row crossed roller construction, ideal for handling combined loads efficiently.
Its steel rings and rollers provide a basic load rating of 12.100 kN, ensuring reliable performance in various applications.
The double-seal design protects against contaminants, extending the bearing’s service life.
With a temperature range of 0-230°F, it remains stable in diverse operating conditions.

Application

Industrial Uses of CRBS 1508 V UU Bearing
CRBS 1508 V UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The double seal helps keep contaminants out, ensuring long service life in dusty workshops.

What Makes CRBS 1508 V UU Bearing a Preferred Choice?
In robotics, CRBS 1508 V UU Bearing offers precise movement for robotic arms, thanks to its combined load capacity and compact 8mm width. The steel construction handles moderate speeds while maintaining accuracy in automated assembly lines.

Perfect Fit for Automation: CRBS 1508 V UU Bearing
CRBS 1508 V UU Bearing works well in 3D printers, supporting the smooth motion of print heads with minimal friction. Its press-fit mounting simplifies installation in tight spaces common in desktop manufacturing equipment.

Medical vs Industrial: Where CRBS 1508 V UU Bearing Excels
While suitable for industrial gearboxes, CRBS 1508 V UU Bearing also meets the cleanliness needs of medical imaging devices. The sealed design prevents lubricant leakage, crucial for maintaining sterile environments in healthcare settings.
