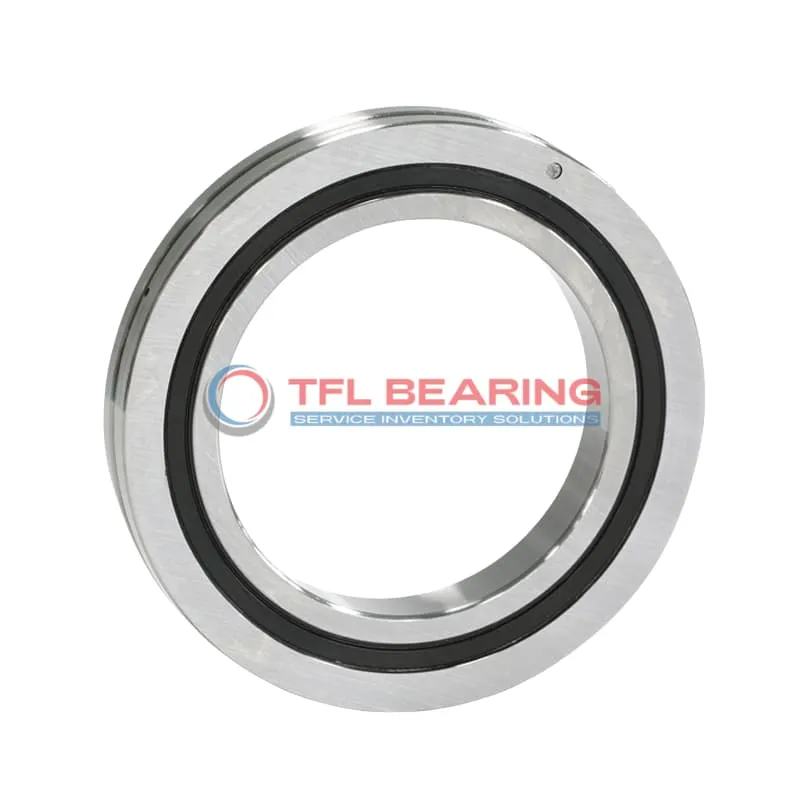

CRBH Crossed Roller Bearings CRBHV4510AUU

CRBH Crossed Roller Bearings CRBHV4510AUU

The CRBHV4510AUU is a compact crossed roller bearing, measuring 45mm by 70mm with a 10mm width, crafted from sturdy steel for reliable performance. It handles combined loads with ease, supporting up to 8.86 kN dynamically and 11.3 kN statically.

Its double-seal design keeps contaminants out while retaining lubrication, making it low-maintenance. The press-fit mounting ensures a secure fit, ideal for precision applications.

This bearing operates smoothly in temperatures from 0°F to 230°F, with an ABEC5 rating for consistent accuracy. It’s also available in higher precision grades (ABEC7/9) for specialised needs.

Perfect for robotics or CNC machinery where space is tight but performance is critical. Compliant with RoHS and REACH standards, it’s a safe and durable choice. Weighing just 0.16kg, it balances strength and portability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBHV4510AUU
  • Brand TFL
  • Size 45 mm x 70 mm x 10 mm
  • Bore Dia 45 mm
  • Outer Dia 70 mm
  • Width 10 mm
  • R(min) 0.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 51.5 mm
  • Mounting Dimensions(Da) 63.5 mm
  • Basic Load Rating C 8.860 kN
  • Basic Load Rating Co 11.300 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.16 Kg

Features

Performance Features of CRBHV4510AUU Bearing

CRBHV4510AUU Bearing features a crossed roller design, ideal for handling combined loads with precision.
Its steel construction ensures durability, while the double seal protects against contaminants.

The bearing operates efficiently within a temperature range of 0 to 230°F, suitable for various industrial applications.
With a basic load rating of 8.860 kN, it provides reliable performance under stress.

CRBHV4510AUU Bearing’s press-fit shaft mounting simplifies installation, reducing setup time.
Its compact size (45 mm x 70 mm x 10 mm) makes it perfect for space-constrained environments.

The ABEC5 rating ensures high precision, with options for ABEC7/9 for even tighter tolerances.
Regular lubrication maintains smooth operation, extending the bearing’s service life.

Application

Industrial Uses of CRBHV4510AUU Bearing
CRBHV4510AUU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, ensuring long service life in demanding environments.

Where Is CRBHV4510AUU Bearing Used?
In robotics, CRBHV4510AUU Bearing supports articulated arms, offering smooth rotation and high load capacity. Its compact size makes it ideal for space-constrained applications like automated assembly lines.

Built for Heavy-Duty Use: CRBHV4510AUU Bearing
CRBHV4510AUU Bearing handles combined loads effectively, making it suitable for medical imaging equipment where stability is key. The steel construction ensures durability even under continuous operation.

Automotive vs Aerospace: Applications of CRBHV4510AUU Bearing
In automotive steering systems, CRBHV4510AUU Bearing provides precise control, while in aerospace, its ABEC5 rating meets the high accuracy requirements for flight control mechanisms. The press-fit mounting simplifies installation in both sectors.
