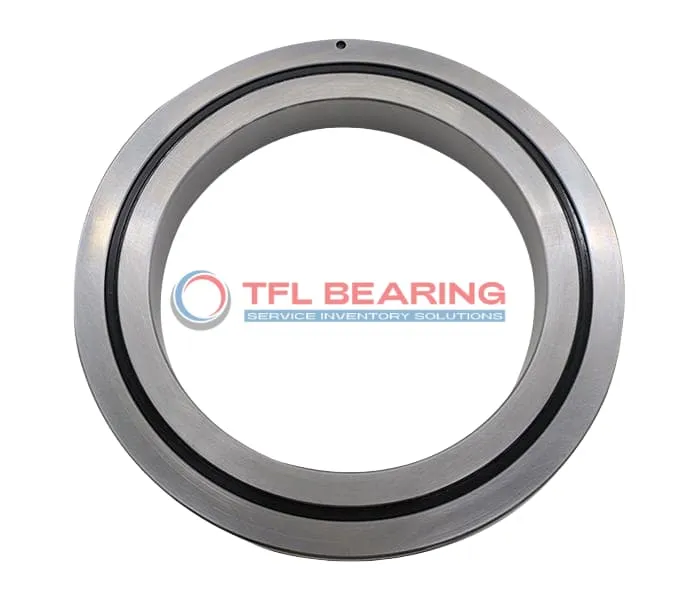

CRBH Crossed Roller Bearings CRBHV4010AUU

CRBH Crossed Roller Bearings CRBHV4010AUU

The CRBHV4010AUU is a compact crossed roller bearing measuring 40mm by 65mm by 10mm, crafted from sturdy steel for reliable performance. It handles combined loads with ease, supporting up to 8.61 kN dynamically and 10.6 kN statically.

Its double-seal design keeps contaminants out while maintaining smooth operation, ideal for precision applications. The bearing requires lubrication and fits securely with a press-fit mount, suitable for temperatures from 0°F to 230°F.

With an ABEC5 rating (also available in higher precision grades), it’s perfect for rotary tables or robotic arms where accuracy matters. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Weighing just 0.15kg, it balances strength and lightweight design for versatile installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBHV4010AUU
  • Brand TFL
  • Size 40 mm x 65 mm x 10 mm
  • Bore Dia 40 mm
  • Outer Dia 65 mm
  • Width 10 mm
  • R(min) 0.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 46.5 mm
  • Mounting Dimensions(Da) 58.5 mm
  • Basic Load Rating C 8.610 kN
  • Basic Load Rating Co 10.600 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.15 Kg

Features

How Is CRBHV4010AUU Bearing Engineered for Reliability?

CRBHV4010AUU Bearing features a crossed roller design, providing high precision and stability under combined loads.
Its steel rings and rollers ensure durability, while the double seal protects against contaminants.

The bearing operates efficiently within a temperature range of 0 to 230°F, suitable for various industrial applications.
With a basic load rating of 8.610 kN, it handles demanding conditions with ease.

CRBHV4010AUU Bearing’s press-fit mounting simplifies installation, reducing setup time.
Its ABEC5 rating guarantees consistent performance, with options for higher precision (ABEC7/9) if needed.

Application

Industrial Uses of CRBHV4010AUU Bearing
CRBHV4010AUU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, ensuring long service life in demanding conditions.

What Makes CRBHV4010AUU Bearing a Preferred Choice?
In robotics, CRBHV4010AUU Bearing offers smooth motion control for robotic arms, thanks to its high load capacity and compact size. The steel construction ensures durability even in continuous operation scenarios.

Optimized for Performance: CRBHV4010AUU Bearing
For medical imaging devices, CRBHV4010AUU Bearing delivers reliable performance with minimal vibration, crucial for accurate diagnostics. Its ABEC5 rating ensures consistent precision in sensitive applications.

Automotive vs Aerospace: Applications of CRBHV4010AUU Bearing
In automotive steering systems, CRBHV4010AUU Bearing handles combined loads efficiently, while in aerospace, its lightweight design suits instrumentation panels. The press-fit mounting simplifies installation in both fields.
