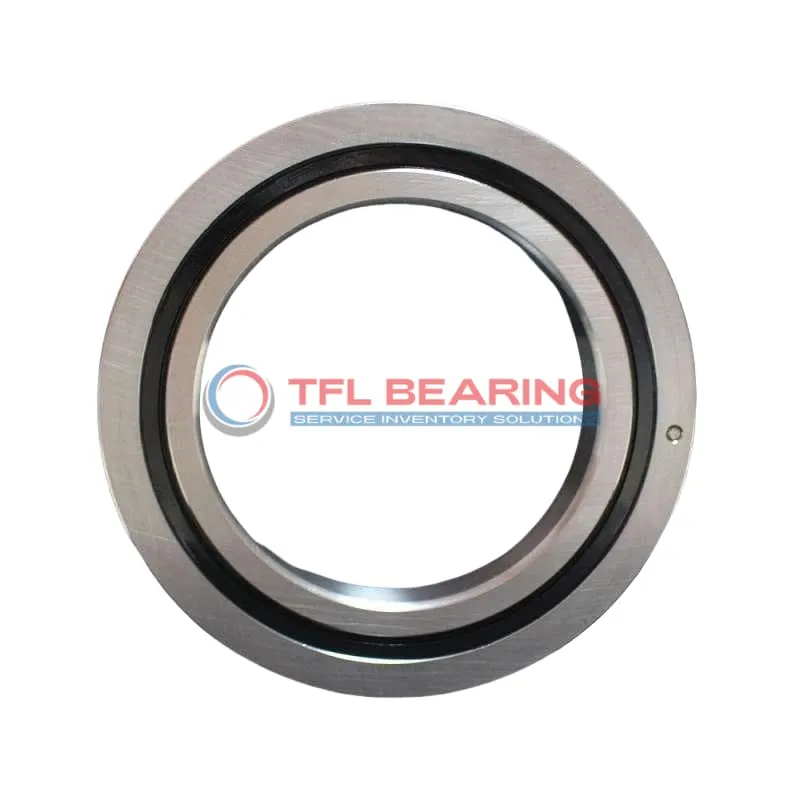

CRBH Crossed Roller Bearings CRBHV10020A

CRBH Crossed Roller Bearings CRBHV10020A

The CRBHV10020A is a crossed roller bearing with a compact design, measuring 100mm in bore diameter and 150mm in outer diameter, with a width of 20mm. Made from sturdy steel, it handles combined loads efficiently.

Its single-row construction and open design make it easy to maintain, while the press-fit mounting ensures a secure installation. The bearing supports loads up to 50.9 kN and operates smoothly within a temperature range of 0°C to 110°C.

With an ABEC5 rating (available in higher precision options), it offers reliable performance for precise applications. Ideal for use in robotics, medical equipment, or machine tools where accuracy and durability are key.

Weighing 1.45kg, it’s a robust choice for industrial settings. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBHV10020A
  • Brand TFL
  • Size 100 mm x 150 mm x 20 mm
  • Bore Dia 100 mm
  • Outer Dia 150 mm
  • Width 20 mm
  • R(min) 0.6 mm
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Mounting Dimensions(da) 110 mm
  • Mounting Dimensions(Da) 140 mm
  • Basic Load Rating C 50.900 kN
  • Basic Load Rating Co 72.200 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.45 Kg

Features

How Does CRBHV10020A Bearing Handle Combined Loads?

CRBHV10020A Bearing features a crossed roller design, providing stability under combined radial and axial loads.
Its steel construction ensures strength, with a basic load rating of 50.900 kN for dynamic applications.
The press-fit shaft mounting simplifies installation, while the open design allows for easy lubrication.
With a temperature range of 0-230°F, it performs reliably in various operating conditions.

Application

Industrial Uses of CRBHV10020A Bearing
CRBHV10020A Bearing is commonly used in machine tools, where its crossed roller design provides excellent precision for rotary tables and indexing heads. The steel construction ensures durability in demanding industrial environments.

Where Is CRBHV10020A Bearing Used?
You’ll find CRBHV10020A Bearing in robotics, particularly in articulated arms that require smooth, precise movement. Its combined load capacity makes it ideal for applications needing both radial and axial support.

Built for Heavy-Duty Use: CRBHV10020A Bearing
CRBHV10020A Bearing handles high loads in automation systems, such as conveyor belts and assembly lines. The press-fit mounting ensures a secure installation, reducing maintenance needs over time.

Automotive vs Aerospace: Applications of CRBHV10020A Bearing
In automotive systems, CRBHV10020A Bearing supports steering mechanisms, while in aerospace, it’s used in control surfaces for its reliability. The ABEC5 rating guarantees consistent performance in both fields.

Perfect Fit for Automation: CRBHV10020A Bearing
CRBHV10020A Bearing works well in 3D printers, where its low friction and high precision are essential. The open design allows for easy lubrication, keeping operations smooth.
