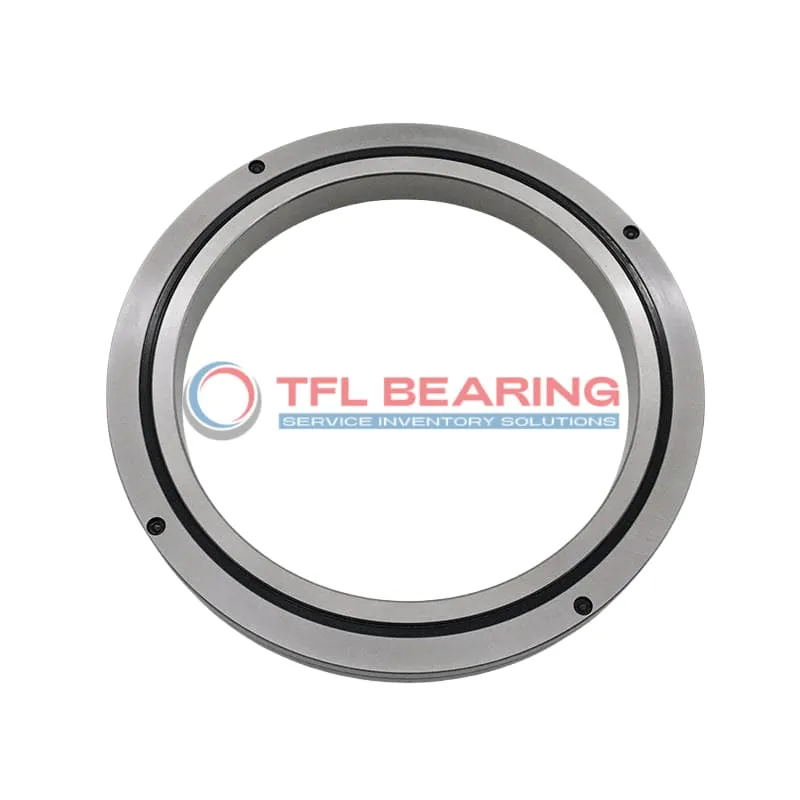

CRBC Crossed Roller Bearings CRBC8016

CRBC Crossed Roller Bearings CRBC8016

The CRBC8016 is a crossed roller bearing measuring 80mm by 120mm by 16mm, made from sturdy steel for reliable performance. It handles combined loads with a basic load rating of 30.1 kN, making it suitable for various industrial uses.

Its open design requires lubrication but allows for easy maintenance. The bearing operates well in temperatures ranging from 0°C to 110°C, ensuring versatility in different environments.

With a press-fit shaft mount, it stays securely in place during operation. The ABEC5 rating (also available in higher grades) ensures smooth and precise movement.

Ideal for applications like robotics or precision machinery where combined loads are common. Compliant with RoHS and REACH standards, it’s a safe and durable choice. Weighing just 0.7kg, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC8016
  • Brand TFL
  • Size 80 mm x 120 mm x 16 mm
  • Bore Dia 80 mm
  • Outer Dia 120 mm
  • Width 16 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 88 mm
  • Shoulder Height Dh(min) 110 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 30.1 kN
  • Basic Load Rating Co 42.1 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 Kg

Features

Performance Features of CRBC8016 Bearing

CRBC8016 Bearing is designed with a single-row crossed roller arrangement, offering high precision and stability.
Its steel rings and rollers provide excellent load capacity, handling both radial and axial forces efficiently.

The bearing operates within a temperature range of 0 to 230°F, making it suitable for various industrial applications.
With an ABEC5 rating (available in ABEC7/9), it ensures smooth and accurate performance.

CRBC8016 Bearing’s press-fit shaft mount simplifies installation, reducing setup time.
Its open design allows for easy lubrication, ensuring long-lasting operation.

The compact dimensions (80mm x 120mm x 16mm) make it ideal for space-constrained applications.
Weighing just 0.7 kg, it balances strength and portability.

Application

Industrial Uses of CRBC8016 Bearing
CRBC8016 Bearing is commonly used in machine tools, where its crossed roller design provides excellent precision for rotary tables and indexing heads. The steel construction ensures durability in high-load industrial environments.

Where Is CRBC8016 Bearing Used?
You’ll find CRBC8016 Bearing in robotics, particularly in robotic arms that require smooth, precise movement. Its press-fit design makes installation straightforward, reducing downtime during maintenance.

Built for Heavy-Duty Use: CRBC8016 Bearing
CRBC8016 Bearing handles combined loads effortlessly, making it ideal for automation systems like CNC machines. The ABEC5 rating ensures reliable performance in demanding applications.

Automotive vs Aerospace: Applications of CRBC8016 Bearing
In automotive testing equipment, CRBC8016 Bearing offers stability for precise measurements. For aerospace, its temperature range suits applications like actuator systems in aircraft.

Perfect Fit for Automation: CRBC8016 Bearing
CRBC8016 Bearing works well in 3D printers, where its low friction and high accuracy improve print quality. The open design allows for easy lubrication, extending its service life.
