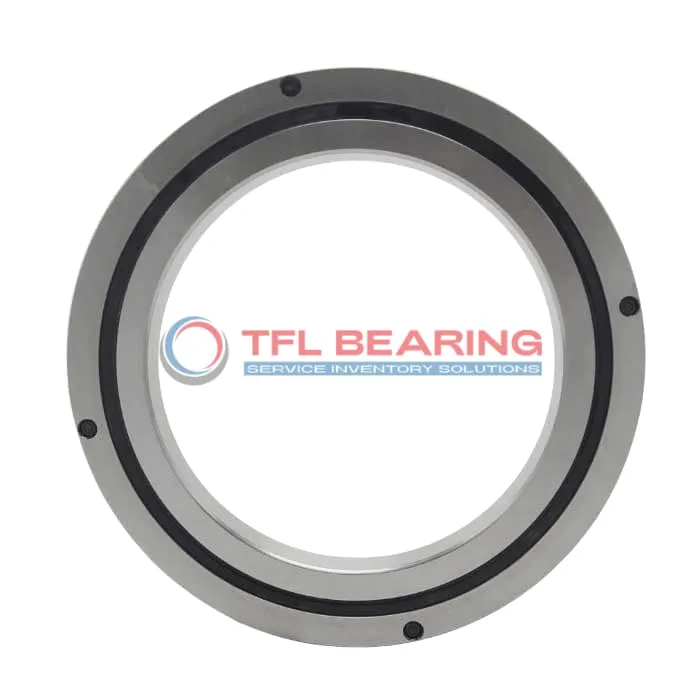

CRBC Crossed Roller Bearings CRBC5013

CRBC Crossed Roller Bearings CRBC5013

The CRBC5013 is a compact crossed roller bearing measuring 50mm by 80mm by 13mm, made from sturdy steel for reliable performance. It handles combined loads up to 16.7 kN and is designed for press-fit mounting.

Its open construction allows easy lubrication, while the crossed roller design ensures smooth rotation under heavy loads. The bearing operates well in temperatures ranging from 0°C to 110°C.

With an ABEC5 precision rating (available in higher grades), it offers accurate movement for demanding applications. The simple press-fit installation makes it practical for various setups.

Ideal for robotics, medical equipment or precision machinery where space is limited but performance is crucial. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. Weighing just 0.27kg, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC5013
  • Brand TFL
  • Size 50 mm x 80 mm x 13 mm
  • Bore Dia 50 mm
  • Outer Dia 80 mm
  • Width 13 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 57 mm
  • Shoulder Height Dh(min) 72 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 16.7 kN
  • Basic Load Rating Co 20.9 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.27 Kg

Features

Performance Features of CRBC5013 Bearing

CRBC5013 Bearing is designed with a single-row crossed roller construction, ideal for handling combined loads.
Its steel rings and rollers provide a basic load rating of 16.7 kN, ensuring reliable performance.

The compact 50 mm x 80 mm x 13 mm size makes CRBC5013 Bearing suitable for space-constrained applications.
With a press-fit shaft mount, it offers secure installation and stable operation.

CRBC5013 Bearing operates in temperatures from 0 to 230°F, adapting to various working conditions.
Its ABEC5 rating ensures precision, with options for higher ABEC7/9 grades if needed.

The open design simplifies lubrication, maintaining smooth performance over time.
Weighing just 0.27 kg, it balances strength and lightweight efficiency.

Application

Industrial Uses of CRBC5013 Bearing
CRBC5013 Bearing is commonly used in machine tools, where its crossed roller design provides excellent precision for rotary tables and indexing heads. The steel construction ensures durability even in demanding industrial environments.

Where Is CRBC5013 Bearing Used?
You’ll often find CRBC5013 Bearing in robotics, particularly in robotic arms that require smooth, precise movement. Its compact size and high load capacity make it ideal for space-constrained applications.

Built for Heavy-Duty Use: CRBC5013 Bearing
CRBC5013 Bearing handles combined loads effortlessly, making it suitable for medical imaging equipment like CT scanners. The press-fit design ensures a secure mount, reducing vibration during operation.

Automotive vs Aerospace: Applications of CRBC5013 Bearing
In automotive systems, CRBC5013 Bearing supports steering mechanisms, offering reliable performance under varying loads. For aerospace, its precision and temperature resistance make it a fit for navigation systems.

Perfect Fit for Automation: CRBC5013 Bearing
CRBC5013 Bearing shines in automated production lines, where its ABEC5 rating ensures consistent accuracy. The open design allows for easy lubrication, extending its service life in high-use scenarios.
