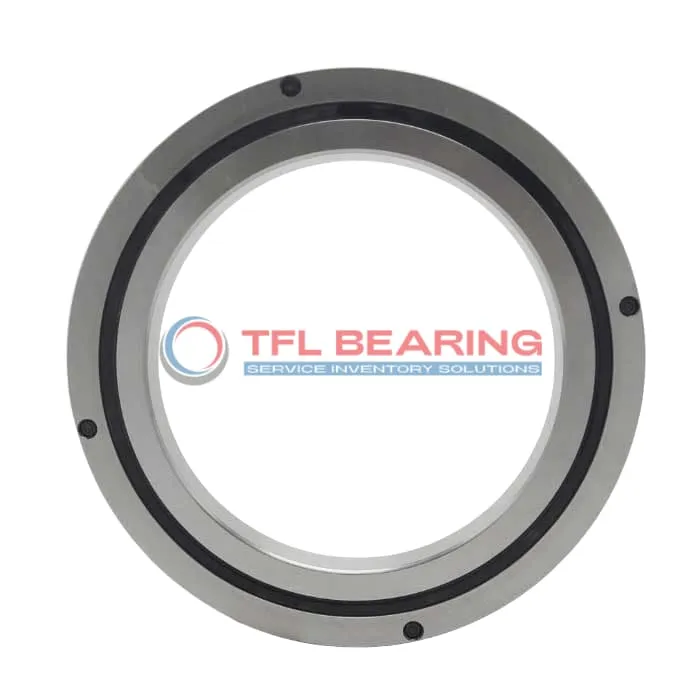

CRBC Crossed Roller Bearings CRBC3010

CRBC Crossed Roller Bearings CRBC3010

The CRBC3010 is a compact crossed roller bearing, measuring 30mm in bore diameter and 55mm in outer diameter, with a slim 10mm width. Made from sturdy steel, it’s designed to handle combined loads efficiently.

With a basic load rating of 7.35 kN, it’s suitable for applications requiring precise movement. The open design allows for easy lubrication, ensuring smooth operation over time.

Its press-fit shaft mount ensures a secure fit, while the crossed roller design provides excellent stability. The bearing operates well in temperatures ranging from 0°C to 110°C.

Ideal for use in robotics or precision machinery, this bearing is ABEC5 rated but available in higher precision grades. It’s compliant with RoHS and REACH standards, weighing just 0.12kg for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC3010
  • Brand TFL
  • Size 30 mm x 55 mm x 10 mm
  • Bore Dia 30 mm
  • Outer Dia 55 mm
  • Width 10 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 37 mm
  • Shoulder Height Dh(min) 47 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 7.35 kN
  • Basic Load Rating Co 8.36 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.12 Kg

Features

How Does CRBC3010 Bearing Handle Combined Loads?

CRBC3010 Bearing features a crossed roller design, providing stability under combined loads.
Its steel rings and rollers ensure durability, with a basic load rating of 7.35 kN.

The compact 30 mm x 55 mm x 10 mm size makes it suitable for space-constrained applications.
CRBC3010 Bearing operates in temperatures from 0 to 230°F, offering reliable performance in varied conditions.

With an ABEC5 rating, it delivers precision for demanding tasks.
The press-fit shaft mount simplifies installation, reducing setup time.

Application

Industrial Uses of CRBC3010 Bearing
CRBC3010 Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The compact 10mm width makes it ideal for space-constrained applications.

Where Is CRBC3010 Bearing Used?
You’ll find CRBC3010 Bearing in robotics, particularly in articulated arms requiring precise movement. Its steel construction handles combined loads well, ensuring smooth operation in automated systems.

Perfect Fit for Automation: CRBC3010 Bearing
CRBC3010 Bearing works brilliantly in 3D printers, supporting the print head with its high-precision ABEC5 rating. The press fit mounting ensures secure installation in fast-moving components.

Medical vs Industrial: Where CRBC3010 Bearing Excels
In medical imaging devices, CRBC3010 Bearing offers reliable performance for rotating components. Industrial applications like packaging machinery benefit from its ability to handle both radial and axial loads.

Essential Roles of CRBC3010 Bearing
CRBC3010 Bearing shines in optical equipment, where its minimal deflection maintains alignment accuracy. The temperature range up to 230°F makes it suitable for various operating environments.
