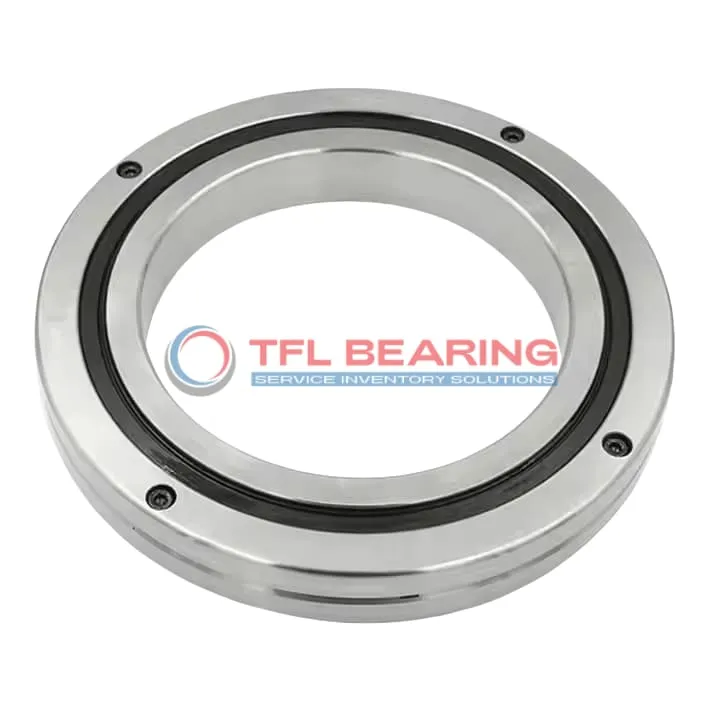

CRBC Crossed Roller Bearings CRBC25040

CRBC Crossed Roller Bearings CRBC25040

The CRBC25040 is a crossed roller bearing with a 250mm bore and 355mm outer diameter, designed for combined loads. Its compact 40mm width and steel construction make it sturdy yet space-efficient.

With a basic load rating of 195 kN, it handles heavy loads smoothly, while the open design allows easy lubrication. The bearing operates well in temperatures from 0°C to 110°C.

Its press-fit shaft mount ensures a secure installation, and the ABEC5 rating (upgradable to ABEC7/9) offers precision for demanding applications. The crossed roller design provides stability under combined loads.

Ideal for industrial machinery, robotics, or precision equipment where space and load capacity matter. Compliant with RoHS and REACH standards, it weighs 14.8kg for its robust size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC25040
  • Brand TFL
  • Size 250 mm x 355 mm x 40 mm
  • Bore Dia 250 mm
  • Outer Dia 355 mm
  • Width 40 mm
  • R(min) 2.5 mm
  • Shoulder Height Ds(max) 275 mm
  • Shoulder Height Dh(min) 326 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 195 kN
  • Basic Load Rating Co 348 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 14.8 Kg

Features

Performance Features of CRBC25040 Bearing

CRBC25040 Bearing is built with a single-row crossed roller design, ideal for handling combined loads with precision.
Its steel rings and rollers provide a basic load rating of 195 kN, ensuring strength and durability.

The press-fit shaft mount simplifies installation, saving time and effort during assembly.
With a temperature range of 0-230°F, CRBC25040 Bearing performs reliably in various operating conditions.

ABEC5 precision rating ensures smooth operation, with options for higher precision (ABEC7/9) available.
The open design allows for easy lubrication, maintaining optimal performance over time.

Application

Industrial Uses of CRBC25040 Bearing
CRBC25040 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The steel construction ensures durability even under heavy combined loads.

Where Is CRBC25040 Bearing Used?
You’ll find CRBC25040 Bearing in robotics, particularly in articulated arms that require smooth, precise movement. Its press-fit mounting makes installation straightforward in automated systems.

Built for Heavy-Duty Use: CRBC25040 Bearing
CRBC25040 Bearing handles demanding applications like industrial turntables, where its high load capacity and stability are key. The open design allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of CRBC25040 Bearing
In automotive testing rigs, CRBC25040 Bearing supports precise positioning, while in aerospace, it’s used in simulator platforms. The ABEC5 rating ensures reliable performance in both fields.

Perfect Fit for Automation: CRBC25040 Bearing
CRBC25040 Bearing works well in CNC machinery, offering low friction and high accuracy for repetitive tasks. The metric sizing simplifies integration into European and Asian equipment.
