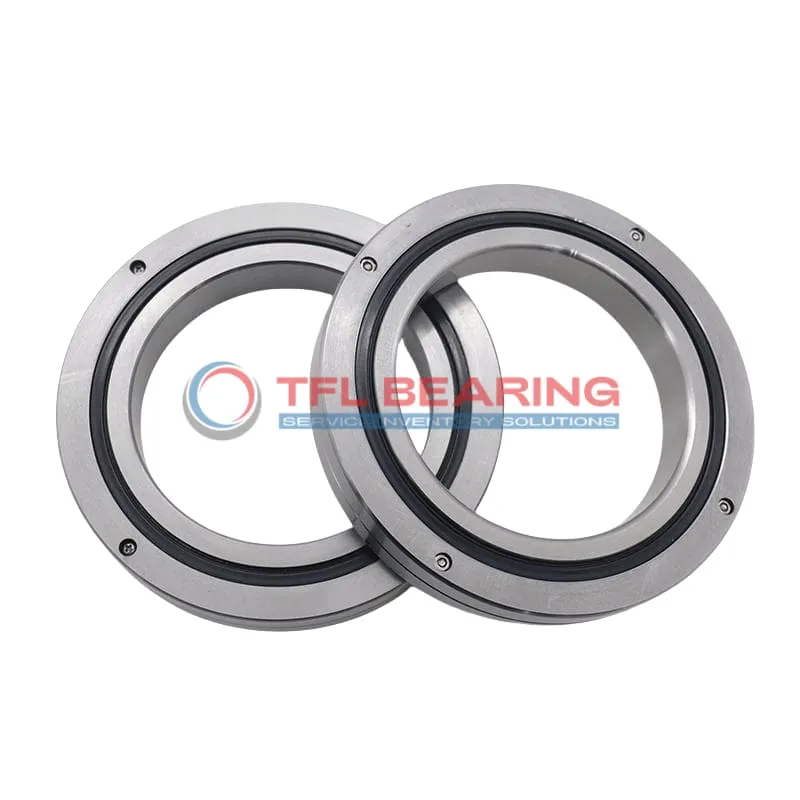

CRBC Crossed Roller Bearings CRB15030

CRBC Crossed Roller Bearings CRB15030

The CRB15030 is a crossed roller bearing with a 150mm bore and 230mm outer diameter, designed for combined loads. Its compact 30mm width and steel construction make it sturdy yet space-efficient.

With a basic load rating of 100kN, it handles heavy loads while maintaining smooth operation. The open design allows easy lubrication, essential for long-term performance.

This bearing features a press-fit shaft mount, ensuring a secure installation. It operates in temperatures from 0°C to 110°C, suitable for various industrial environments.

Ideal for precision applications like robotics or machine tools, where combined loads and accuracy are key. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding setups.

Weighing 5.3kg, it balances strength and manageability for its size. Available in ABEC5, with options for higher precision grades if needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRB15030
  • Brand TFL
  • Size 150 mm x 230 mm x 30 mm
  • Bore Dia 150 mm
  • Outer Dia 230 mm
  • Width 30 mm
  • R(min) 1.5 mm
  • Shoulder Height Ds(max) 169 mm
  • Shoulder Height Dh(min) 211 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 100 kN
  • Basic Load Rating Co 156 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.3 Kg

Features

Structural Advantages of CRB15030 Bearing

CRB15030 Bearing features a crossed roller design, providing excellent stability under combined loads.
Its steel rings and rollers ensure high load capacity, with a basic rating of 100 kN.

The compact 30 mm width makes CRB15030 Bearing suitable for space-constrained applications.
With a temperature range of 0-230°F, it performs reliably in various operating conditions.

CRB15030 Bearing’s press-fit shaft mount simplifies installation, saving time and effort.
Its ABEC5 precision rating ensures smooth operation for demanding tasks.

Application

Industrial Uses of CRB15030 Bearing
CRB15030 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The press-fit mounting ensures stability during high-speed operations.

In robotics, CRB15030 Bearing supports articulated arms, offering smooth movement under combined loads. Its steel construction makes it durable for continuous use in automated systems.

For medical imaging devices, CRB15030 Bearing’s ABEC5 rating ensures accurate positioning, crucial for detailed scans. The open design allows for easy lubrication, maintaining performance over time.

CRB15030 Bearing also fits well in packaging machinery, handling both radial and axial loads efficiently. The metric sizing makes it compatible with a variety of industrial equipment.
