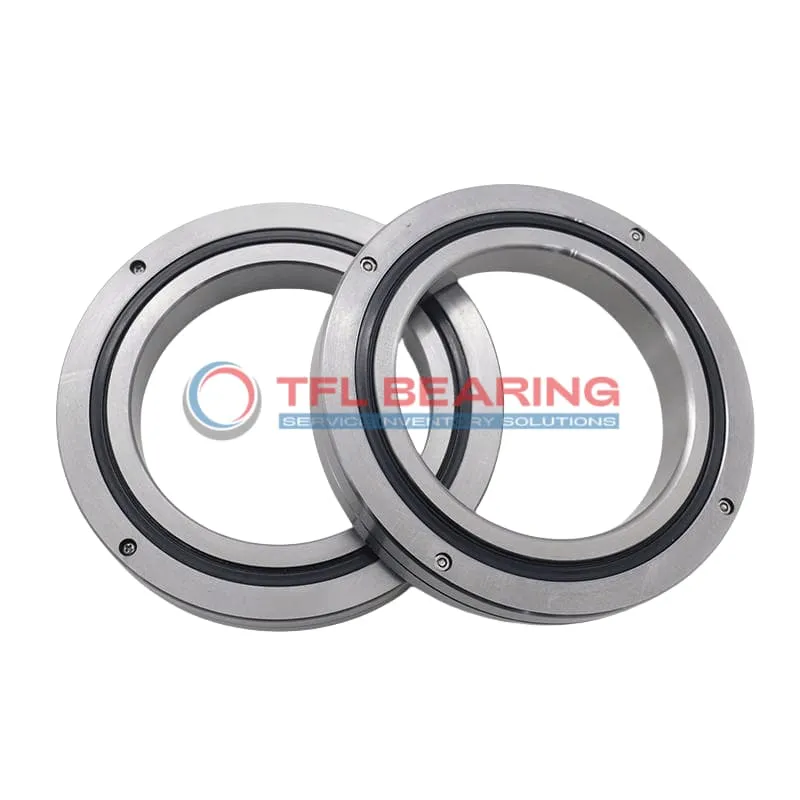

CRBC Crossed Roller Bearings CRB14025UU

CRBC Crossed Roller Bearings CRB14025UU

The CRB14025UU is a crossed roller bearing with a 140mm bore and 200mm outer diameter, crafted from sturdy steel for reliable performance. Its compact 25mm width makes it suitable for space-constrained applications.

This bearing handles combined loads up to 74.8 kN, with a double-seal design that keeps contaminants out. It operates smoothly in temperatures ranging from 0°C to 110°C.

Featuring a press-fit shaft mount, it stays securely in place during operation. The ABEC5 precision rating ensures consistent performance for demanding tasks.

Ideal for industrial machinery and robotics, this bearing offers durability and precision. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRB14025UU
  • Brand TFL
  • Size 140 mm x 200 mm x 25 mm
  • Bore Dia 140 mm
  • Outer Dia 200 mm
  • Width 25 mm
  • R(min) 1.5 mm
  • Shoulder Height Ds(max) 154 mm
  • Shoulder Height Dh(min) 185 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 74.8 kN
  • Basic Load Rating Co 121 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.96 Kg

Features

How Does CRB14025UU Bearing Handle Combined Loads?

CRB14025UU Bearing features a crossed roller design, providing stability under combined radial and axial loads.
Its steel rings and rollers offer a basic load rating of 74.8 kN, ensuring reliable performance in demanding applications.

The double-sealed construction protects against contaminants, extending the bearing’s service life.
With a temperature range of 0-230°F, CRB14025UU Bearing performs well in various environmental conditions.

Press-fit shaft mounting simplifies installation, reducing setup time and effort.
The ABEC5 precision rating ensures smooth operation, suitable for high-accuracy applications.

Application

Industrial Uses of CRB14025UU Bearing
CRB14025UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The double seal ensures protection against contaminants in harsh workshop environments.

Where Is CRB14025UU Bearing Used?
You’ll find CRB14025UU Bearing in robotics, particularly in articulated arms that require precise movement under combined loads. Its press-fit mounting simplifies installation in compact automation systems.

Built for Heavy-Duty Use: CRB14025UU Bearing
This bearing handles demanding applications like medical imaging equipment, where smooth rotation is critical. The steel construction offers reliable performance across a wide temperature range.

Automotive vs Aerospace: Applications of CRB14025UU Bearing
In automotive testing rigs, CRB14025UU Bearing supports dynamic load simulations, while its aerospace applications include actuator systems. The ABEC5 rating ensures consistent precision in both fields.

Perfect Fit for Automation: CRB14025UU Bearing
CRB14025UU Bearing works well in 3D printers, providing accurate linear motion for print heads. The metric dimensions make it compatible with European and Asian machinery standards.
