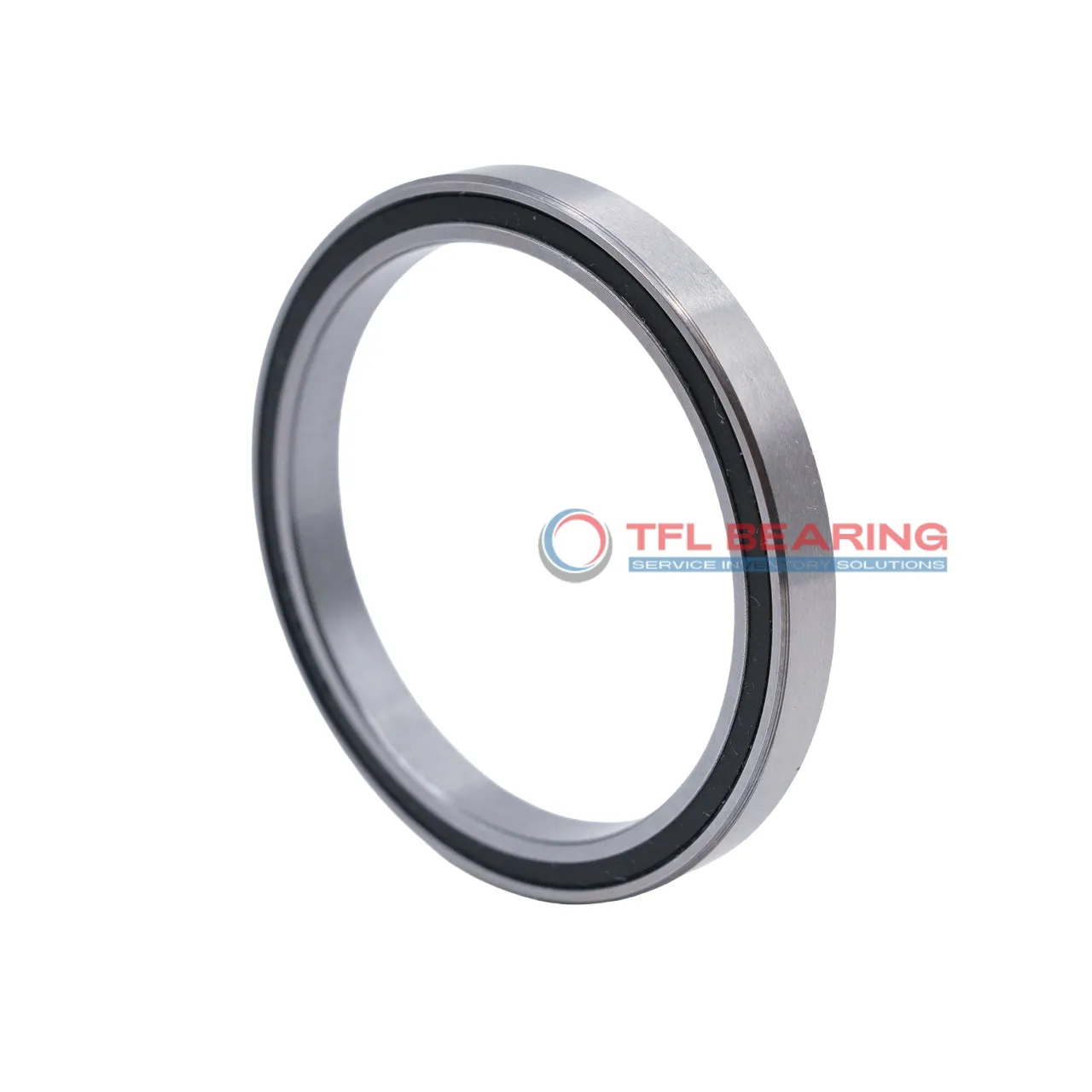

Constant Section (CS) Bearings WB020XP0

Constant Section (CS) Bearings WB020XP0

How Is WB020XP0 Bearing Engineered for Reliability?

WB020XP0 Bearing features a sealed design with stainless steel rings and balls, ensuring durability in various conditions.
Its four-point contact design allows it to handle both radial and thrust loads efficiently.

The ABEC-1 tolerance class ensures consistent performance, while the thin section construction saves space.
With a dynamic radial load capacity of 758 lbf, it is suitable for precision applications.

WB020XP0 Bearing operates smoothly within a temperature range of -30°C to 110°C.
Its stainless steel cage maintains alignment, reducing wear and extending service life.

The lubrication ensures smooth operation, making it ideal for long-term use.
This bearing is a reliable choice for applications requiring both strength and precision.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WB020XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 2"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 2.625"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.199"
  • Internal Diameter On Outer Ring (Small Side Face) 2.425"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 758 lbf
  • Static Radial Load 930 lbf
  • Static Thrust Load 2340 lbf
  • Static Moment 1080 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 658 lbf
  • Dynamic Thrust Load 1130 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.15 lbs
  • price（$） 225.36
Constant Section (CS) Bearings WB020XP0 dimension drawing
Download DWG Download PDF

Features

Industrial Uses of WB020XP0 Bearing
WB020XP0 Bearing works well in robotics, especially for compact joints where space is limited. Its thin section design fits neatly without compromising load capacity.

How Does WB020XP0 Bearing Improve Performance?
In automation systems, WB020XP0 Bearing handles both radial and moment loads smoothly. The sealed design keeps out dust, making it reliable for long-term use.

Built for Heavy-Duty Use: WB020XP0 Bearing
You’ll find WB020XP0 Bearing in medical imaging devices, where precision and cleanliness matter. The stainless steel construction resists corrosion in sterile environments.

Automotive vs Aerospace: Applications of WB020XP0 Bearing
For car steering systems, WB020XP0 Bearing offers smooth rotation with minimal friction. In drones, its lightweight design helps maintain agility during flight.

Practical Applications of WB020XP0 Bearing
WB020XP0 Bearing is a go-to for 3D printers, ensuring accurate movement in the print head. The ABEC-1 tolerance provides just enough precision for most hobbyist needs.

Application

Industrial Uses of WB020XP0 Bearing
WB020XP0 Bearing works well in robotics, especially for compact joints where space is limited. Its thin section design fits neatly without compromising load capacity.

How Does WB020XP0 Bearing Improve Performance?
In automation systems, WB020XP0 Bearing handles both radial and moment loads smoothly. The sealed design keeps out dust, making it reliable for long-term use.

Built for Heavy-Duty Use: WB020XP0 Bearing
You’ll find WB020XP0 Bearing in medical imaging devices, where precision and cleanliness matter. The stainless steel construction resists corrosion in sterile environments.

Automotive vs Aerospace: Applications of WB020XP0 Bearing
For car steering systems, WB020XP0 Bearing offers smooth rotation with minimal friction. In drones, its lightweight design helps maintain agility during flight.

Practical Applications of WB020XP0 Bearing
WB020XP0 Bearing is a go-to for 3D printers, ensuring accurate movement in the print head. The ABEC-1 tolerance provides just enough precision for most hobbyist needs.
