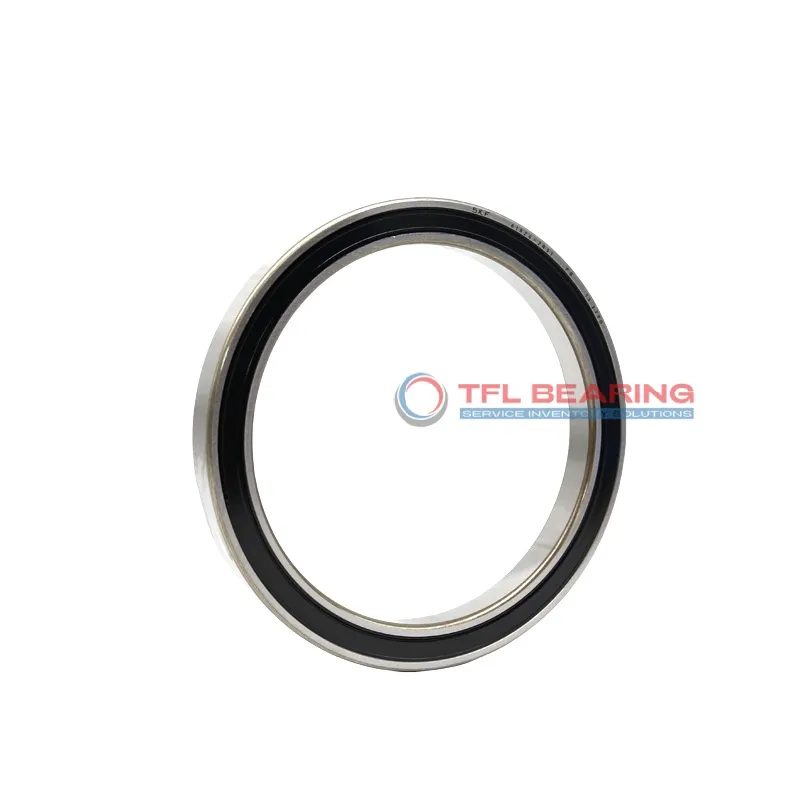

Constant Section (CS) Bearings WB020CP0

Constant Section (CS) Bearings WB020CP0

Built for Reliability: WB020CP0 Bearing

WB020CP0 Bearing features a sealed design, protecting it from dust and moisture in various environments.
Its stainless steel construction ensures resistance to corrosion, making it suitable for long-term use.
The bearing’s thin section design allows for space-saving installation without compromising performance.
With a dynamic radial load capacity of 577 lbf, it handles moderate loads efficiently.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number WB020CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 2"
  • Bore Dia Tolerance -0.0006"– 0"
  • Outer Dia 2.625"
  • Outer Dia Tolerance -0.0005"– 0"
  • Width 0.3125"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JB 5/16" x 5/16"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 2.199"
  • Internal Diameter On Outer Ring (Small Side Face) 2.425"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 577 lbf
  • Static Radial Load 930 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1431 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.15 lbs
  • price（$） 217.56
Constant Section (CS) Bearings WB020CP0 dimension drawing
Download DWG Download PDF

Features

Industrial Uses of WB020CP0 Bearing
WB020CP0 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery where its thin-section design saves space without compromising performance. The sealed construction helps keep contaminants out, extending its lifespan in dusty environments.

Where Is WB020CP0 Bearing Used?
You’ll often find WB020CP0 Bearing in medical imaging devices, where its stainless steel construction ensures smooth, reliable operation. Its ABEC-1 tolerance makes it suitable for applications requiring consistent precision.

Built for Heavy-Duty Use: WB020CP0 Bearing
WB020CP0 Bearing handles radial loads well in conveyor systems, thanks to its durable stainless steel balls and rings. The lubricated design reduces friction, making it a solid choice for continuous operation.

Automotive vs Aerospace: Applications of WB020CP0 Bearing
In automotive steering systems, WB020CP0 Bearing provides reliable performance due to its sealed design and corrosion resistance. For aerospace applications, its lightweight construction and precision tolerances are equally beneficial.

Perfect Fit for Automation: WB020CP0 Bearing
WB020CP0 Bearing works seamlessly in 3D printers, where its thin profile and smooth rotation enhance print accuracy. The stainless steel materials also resist wear, even with frequent use.

Application

Industrial Uses of WB020CP0 Bearing
WB020CP0 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery where its thin-section design saves space without compromising performance. The sealed construction helps keep contaminants out, extending its lifespan in dusty environments.

Where Is WB020CP0 Bearing Used?
You’ll often find WB020CP0 Bearing in medical imaging devices, where its stainless steel construction ensures smooth, reliable operation. Its ABEC-1 tolerance makes it suitable for applications requiring consistent precision.

Built for Heavy-Duty Use: WB020CP0 Bearing
WB020CP0 Bearing handles radial loads well in conveyor systems, thanks to its durable stainless steel balls and rings. The lubricated design reduces friction, making it a solid choice for continuous operation.

Automotive vs Aerospace: Applications of WB020CP0 Bearing
In automotive steering systems, WB020CP0 Bearing provides reliable performance due to its sealed design and corrosion resistance. For aerospace applications, its lightweight construction and precision tolerances are equally beneficial.

Perfect Fit for Automation: WB020CP0 Bearing
WB020CP0 Bearing works seamlessly in 3D printers, where its thin profile and smooth rotation enhance print accuracy. The stainless steel materials also resist wear, even with frequent use.
